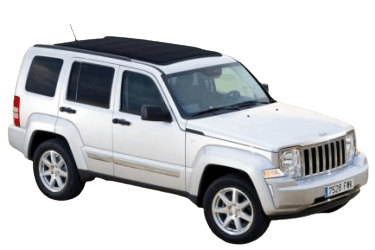

Fuses and relays Jeep Cherokee (KK; 2007–2014)

In this article, we provide a detailed breakdown of the fuse and relay diagrams for the Jeep Cherokee (fourth generation; chassis code KK) across the 2007, 2008, 2009, 2010, 2011, 2012, 2013, and 2014 model years.

Fuses M6, M7, and M36 in the engine compartment fuse box supply power to the cigarette lighter and 12V auxiliary power outlets.

In the Engine Compartment

Located in the engine compartment near the battery, beneath the protective cover.

General view of the fuse box (Totally Integrated Power Module — TIPM).

Fuse Box Diagram
No.	Description	Amps
CB1	Power Seat Circuit Breaker	25 A
K1	Ignition Relay (Run/Accessory)	—
K2	Ignition Relay (Run)	—
K3	Starter Relay	—
K4	Ignition Relay (Run-Start)	—
K5	Transmission Control Module (TCM) Relay	—
K6	Rear Window Defogger Relay	—
K7	Not used	—
K8	Not used	—
K9	Not used	—
K10	Automatic Shutdown (ASD) Relay	—
K11	Radiator Fan Control Relay	—
M1	Stop Lamp Switch Feed — Center High-Mounted Stop Lamp (CHMSL)	15 A
M2	Trailer Lighting — if equipped	20 A
M3	2010–2014: Front and Rear Axle Lockers — if equipped	20 A
M4	Trailer Tow — if equipped	10 A
M5	Power Inverter — if equipped	25 A
M6	12V Power Outlet #1 (Cigarette Lighter) / Rain Sensor — if equipped / Trailer Tow — if equipped	20 A
M7	12V Power Outlet #2 / Cigarette Lighter (BATT/ACC Select)	20 A
M8	Heated Front Seats — if equipped	20 A
M9	2010: Heated Rear Seats — if equipped	20 A
M10	2007–2010: Hands-Free Module (HFM) — if equipped / Universal Garage Door Opener (UGDO) — if equipped / Vanity Lamps 2011–2014: Ignition Off Draw (IOD) — Vehicle Entertainment System (VES), Satellite Receiver, DVD, Hands-Free Module, Radio, Antenna, Universal Garage Door Opener — if equipped / Vanity Lamps	15 A
M11	Automatic Temperature Control (ATC)	10 A
M12	Radio / Audio Amplifier	30 A
M13	Cabin Compartment Node (CCN) / Wireless Control Module (WCM) / Multifunction Switch	20 A
M14	2010: Trailer Tow (BUX) — if equipped	20 A
M15	2007–2010: Multifunction Switch / Cabin Compartment Node (CCN) / Steering Column Control Module (SCM) / Rearview Mirror / Tire Pressure Monitor (TPM) — if equipped / IR Sensor — if equipped / Transfer Case Module — if equipped 2011–2014: Instrument Cluster / Rearview Mirror / Tire Pressure Monitor (TPM) / Transfer Case Module — if equipped / Glow Plugs — if equipped	20 A
M16	2007–2010: Occupant Restraint Controller (ORC) 2011–2014: Airbag Module (ORC)	10 A
M17	Exterior Lighting — Left Front Park & Side Marker Lamps, Left Tail & License Plate Lamps	15 A
M18	Exterior Lighting — Right Front Park & Side Marker Lamps, Right Tail Lamps	15 A
M19	Automatic Shut Down (ASD) Relays #1 & #2	25 A
M20	Interior Lighting / Steering Wheel Switches / Switch Bank / Electronic Vehicle Information Center (EVIC)	15 A
M21	Automatic Shut Down (ASD) Relay #3	20 A
M22	Right Horn (High/Low)	10 A
M23	Left Horn (High/Low)	10 A
M24	2010–2014: Rear Wiper — if equipped	25 A
M25	Fuel Pump Diesel Fuel Lift Pump — if equipped	20 A
M26	Power Mirror Switch / Driver Power Window Switch	10 A
M27	Ignition Switch / Wireless Control Module (WCM) / Steering Column Lock — if equipped	10 A
M28	Powertrain Control Module (PCM)	10 A
M29	Occupant Classification Module (OCM)	10 A
M30	Rear Wiper Module / Data Link Connector (DLC)	15 A
M31	Backup Lamps	20 A
M32	2007–2010: Occupant Restraint Controller (ORC) 2011–2014: Airbag Module (ORC)	10 A
M33	Powertrain Control Module (PCM)	10 A
M34	Park Assist / Heating, Ventilation & Air Conditioning (HVAC) / Compass Module — if equipped	10 A
M35	Heated Power Mirrors	10 A
M36	2010: 12V Power Outlet #3 (Battery) / Cigarette Lighter	20 A
M37	Anti-Lock Brake System (ABS) / Electronic Stability Program (ESP) Module / Stop Lamp Switch	10 A
M38	Door & Liftgate Lock/Unlock Motors	25 A
J1	Not used	—
J2	Transfer Case Control Module	30 A
J3	2007–2010: Rear Door Modules	40 A
J4	Driver Door Module	25 A
J5	Passenger Door Module	25 A
J6	Anti-Lock Brake System (ABS) Pump / ESP	40 A
J7	Anti-Lock Brake System (ABS) Valves / ESP	30 A
J8	Power Seats	40 A
J9	2007–2010: Partial Zero Emission Vehicle (PZEV) / Flex Fuel	40 A
J10	2010: Headlamp Washer Relay / Manifold Tuning Valve	30 A
J11	2010: Sway Bar — if equipped / Thatcham Lock/Unlock — if equipped / Power Sliding Door Module — if equipped 2011–2014: Thatcham Lock/Unlock — if equipped	30 A
J13	Ignition Off Draw (IOD) Main	60 A
J14	Rear Window Defogger — if equipped	40 A
J15	2010: Rear Blower Motor — if equipped 2011–2014: Front Blower Motor	30 A
J17	Starter Solenoid	40 A
J18	Powertrain Control Module (PCM) / Transmission Relay	20 A
J19	Radiator Fan Motor	60 A
J20	Front Wiper Motor	30 A
J21	Front/Rear Washer Pump	20 A
J22	Power Sunroof	25 A
