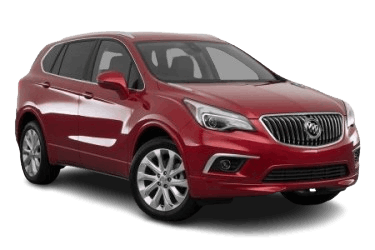

In this article, we provide a detailed overview of the fuse box diagrams for the Buick Envision (first generation): 2014, 2015, 2016, 2017, 2018, 2019, and 2020 model years.
Fuse F8 in the instrument panel fuse block supplies power to the front cigarette lighter and 12 V power outlet.
Luggage Compartment Fuse Block
This fuse block is located on the left side of the rear cargo area, behind a trim cover. To access it, turn the latch with a flat-blade tool and remove the cover.
General view of the fuse block.
| Diagram | |
|---|---|
|
|
| No. | Description |
| Relays | |
| K1 | Park lamps |
| K2 | Not used |
| K3 | Ignition/Run relay |
| K4 | Logistics relay |
| K5 | DC/AC inverter relay |
| K6 | Not used |
| K7 | 2014–2018: Park assist module |
| 2019–2020: Park lamps | |
| K8 | 2014–2018: Right turn signal lamps |
| 2019–2020: Trailer right turn signal lamps | |
| K9 | 2014–2018: Left turn signal lamps |
| 2019–2020: Trailer left turn signal lamps | |
| K10 | — |
| Fuses | |
| F1 | Not used |
| F2 | DC/AC inverter |
| F3 | 2014–2019: Not used |
| 2020: Passenger power seat | |
| F4 | 2014–2019: Passenger power seat |
| 2020: Passenger power seat | |
| F5 | Memory seat module |
| F6 | 2014–2018: Not used |
| 2019–2020: Central gateway module | |
| F7 | Audio amplifier |
| F8 | Rear accessory 12 V power outlet / Rear cigarette lighter |
| F9 | Rear heated seats |
| F10 | Logistics relay |
| F11 | Rear HVAC module |
| F12 | Power liftgate hands-free sensor |
| F13 | Park and trailer lamps |
| F14 | Side blind zone alert module |
| F15 | Left park lamp |
| F16 | Right park lamp |
| F17 | Body Control Module (BCM) 6 |
| F18 | Heated steering wheel |
| F19 | 2014–2018: All-Wheel Drive (AWD) module |
| 2019–2020: Rear drive control module | |
| F20 | Power lumbar support |
| F21 | Rear heated seats |
| F22 | Rear drive control module |
| F23 | Trailer left turn signal lamp |
| F24 | Trailer right turn signal lamp |
Engine Compartment Fuse Block
This fuse block is located on the driver's side of the engine compartment, beneath the plastic cover.
Accessing the fuse block.
General view of the fuse block.
| Diagram | |
|---|---|
|
|
| No. | Description |
| Relays | |
| K01 | Start/Stop relay |
| K02 | A/C clutch relay |
| K03 | Engine Control Module (ECM) relay |
| K04 | Windshield wiper relay |
| K05 | Starter solenoid |
| K06 | Empty |
| K07 | Empty |
| K08 | Transmission fluid pump relay |
| K09 | Wiper speed control |
| K10 | Starter motor |
| K11 | Headlamp washer pump |
| K12 | High-beam headlamps |
| K13 | 2014–2018: Daytime Running Lamps (DRL) |
| 2019–2020: Low-beam headlamps | |
| K14 | Run/Crank relay |
| K15 | Rear window / Outside mirror defogger |
| Fuses | |
| F01 | Starter 1 |
| F02 | Starter 2 |
| F03 | 2014–2018: Non-walk module |
| 2019–2020: EVAP canister purge solenoid | |
| F04 | Engine Control Module (ECM) |
| F05 | 2014–2018: FlexFuel module |
| 2019–2020: FlexFuel / Active aero shutter motor | |
| F06 | – / Transmission Control Module (TCM) |
| F07 | Empty |
| F08 | Engine Control Module (ECM) |
| F09 | A/C compressor |
| F10 | EVAP canister vent solenoid |
| F11 | Fuel pump module |
| F12 | Heated seats |
| F13 | Engine coolant pump |
| F14 | Empty |
| F15 | Heated oxygen (O2) sensor |
| F16 | 2014–2018: Ignition coils – odd cylinders |
| 2019–2020: Ignition coils | |
| F17 | 2014–2018: Ignition coils – even cylinders |
| 2019–2020: Engine Control Module (ECM) | |
| F18 | Empty |
| F19 | Empty |
| F20 | DC/DC converter / Transmission |
| F21 | Power liftgate |
| F22 | Anti-lock Brake System (ABS) module |
| F23 | Windshield washer pump |
| F24 | Headlamp washer pump |
| F25 | Empty |
| F26 | Auxiliary transmission fluid pump |
| F27 | Anti-lock Brake System (ABS) module |
| F28 | Empty |
| F29 | Rear window defogger |
| F30 | Outside mirror defogger |
| F31 | Empty |
| F32 | Various low-current functions / Circuit 39 splice |
| F33 | Empty |
| F34 | Horn |
| F35 | Empty |
| F36 | Right high-beam headlamp |
| F37 | Left high-beam headlamp |
| F38 | Automatic headlamp leveling module |
| F39 | Front fog lamps |
| F40 | Auxiliary transmission fluid pump |
| F41 | Passenger seat ventilation |
| F42 | Headlamp leveling module |
| F43 | Empty |
| F44 | Inside rearview mirror |
| F45 | Empty |
| F46 | Driver seat ventilation |
| F47 | Electronic steering column lock |
| F48 | Rear window wiper |
| F49 | Empty |
| F50 | Empty |
| F51 | 2014–2018: Right Daytime Running Lamp (DRL) |
| 2019–2020: Right low-beam headlamp | |
| F52 | Engine Control Module (ECM) / Transmission Control Module (TCM) |
| F53 | Empty |
| F54 | Empty |
| F55 | Windshield wiper |
| F56 | Empty |
| F57 | 2014–2018: Left Daytime Running Lamp (DRL) |
| 2019–2020: Left low-beam headlamp | |
Instrument Panel Fuse Block
This fuse block is located within the glove box assembly.
To access the fuses, open the trim panel door by pulling it outward.
General view of the fuse block.
| Diagram | |
|---|---|
|
|
| No. | Description |
| F1 | Empty |
| F2 | Front HVAC blower motor |
| F3 | Power seat |
| F4 | Cigarette lighter (China market only) |
| F5 | Empty |
| F6 | Front power windows |
| F7 | Empty |
| F8 | 2014–2018: Accessory 12 V power outlet / Cigarette lighter |
| 2019–2020: Center console 12 V power outlet | |
| F9 | Body Control Module (BCM) 8 |
| F10 | Rear power windows |
| F11 | Empty |
| F12 | Moonroof |
| F13 | Front heated seats |
| F14 | Outside rearview mirror |
| F15 | Body Control Module (BCM) 3 |
| F16 | Empty |
| F17 | 2014–2018: Body Control Module (BCM) 6 |
| 2019–2020: Not used | |
| F18 | Body Control Module (BCM) 7 |
| F19 | Data Link Connector (DLC) |
| F20 | Sensing and Diagnostic Module (SDM) |
| F21 | HVAC control module |
| F22 | Power liftgate release |
| F23 | Passive Entry / Passive Start (PEPS) system |
| F24 | Occupant Classification System (OCS) sensor |
| F25 | Steering wheel controls |
| F26 | 2014–2018: Ignition module |
| 2019–2020: Steering column lock assembly | |
| F27 | Body Control Module (BCM) 4 |
| F28 | Transmission Control Module (TCM) |
| F29 | Body Control Module (BCM) 2 |
| F30 | USB port |
| F31 | Rear HVAC blower motor |
| F32 | Body Control Module (BCM) 1 |
| F33 | Universal remote system / Garage door opener |
| F34 | Park assist module |
| F35 | OnStar® module |
| F36 | Infotainment display |
| F37 | Radio / Infotainment system |
