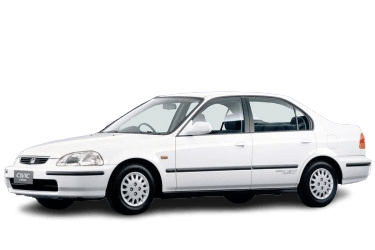

This article provides detailed fuse box diagrams and schedules for sixth-generation Honda Civic models (EK / EJ / EM platform) produced from 1994 to 2000.

Fuse No. 27 in the passenger compartment fuse box protects the cigarette lighter circuit.

Engine Compartment


Under the hood, adjacent to the battery, you will find the main fuse box (1) and the auxiliary ABS fuse box (2).

Main Fuse Box


General view.

Diagram
No. Description Rating (A)
R1 A/C Condenser Fan Relay  -
R2 A/C Compressor Clutch Relay  -
R3 Radiator Cooling Fan Relay  -
R4 Blower Motor Relay  -
41 Main Fuse (Battery) 80/100
42 Ignition Switch (BAT) 40
43 Interior Lights, Data Link Connector (DLC) 7.5
44 GX models: Engine Control Module (ECM) Relay (PGM-FI), Fuel Injector Relay 20
Except GX models: Powertrain Control Module (PCM) Relay (PGM-FI), Fuel Injector Relay 15
45 Not used  -
46 Power Windows 40
47
  • Audio unit, clock, Powertrain Control Module (PCM) backup (VBU), heater control panel, power antenna, power folding mirror control unit
  • Through 1998: Transmission Control Module (TCM)
 7.5
48 Light Switch, Fuse No. 33 30
49 Not used  -
50 Rear Window Defroster Relay 30
51
  • 1999–2000 models: Power door locks, keyless entry control unit
  • Moonroof / Sunroof
 20
52 Horn, Brake Lights 15
53 Hazard Warning Light / Turn Signal Relay 10
54 Security / Anti-Theft System 40
55 Blower Motor Relay 40
56 A/C Condenser Fan, A/C Compressor Clutch 20
57 Radiator Cooling Fan 20

Auxiliary Fuse Box


Representative sample shown.

Diagram
No. Description Rating (A)
R1 ABS Hydraulic Motor Relay -
61 ABS Hydraulic Motor Pump 40
62 ABS Control Module 20
63 7.5

Passenger Compartment


The interior fuse box is located under the driver's side of the dashboard.


Remove the access panel to reach the fuses.


General view.

Diagram
No. Description Rating (A)
R1 Rear Window Defroster Relay -
R2 Power Window Relay -
R3 Turn Signal / Hazard Flasher Relay -
1 Power Seats (fore/aft adjust, height adjust) 20
2 Power Seats (recline), Heated Seats 20
3 Rear Window Wiper, Security System 10
4 Right Headlight (High Beam), Daytime Running Lights (DRL), Integrated Control Unit (ICU) 10
5 Left Headlight (High Beam), Daytime Running Lights (DRL) 10
6 Security / Anti-Theft System 30
Headlight Washer Control Module 30
7 Left Rear Power Window 20
8 Right Rear Power Window 20
9 1998–2000 models (except GX): Ignition Coil 15
10 Front Passenger Power Window 20
11 Driver Power Window 20
12 Security Alarm System 7.5
13 PGM-FI Main Relay (ECM/PCM), Fuel Pump, Supplemental Restraint System (SRS) Unit 15
14
  • Through 1998 models: Audio unit
  • Cruise Control System
  • 1999–2000 models: Power door locks, keyless entry system
 7.5
15
  • Electric Load Detector (ELD), Instrument Cluster
  • CVT models (through 1998): Transmission Control Module (TCM)
  • Engine Control Module (PGM-FI ECM), Vehicle Speed Sensor (VSS), Immobilizer Control Unit
 7.5
16
  • Through 1998 models: Rear window defroster
  • Anti-lock Brake System (ABS)
  • 1999–2000 models: Power mirrors
 7.5
17
  • Through 1998 models: Power mirrors
  • HVAC air blend door motor, heater control panel, A/C control panel, blower fans, seat heater relay, power folding mirror module
 7.5
18 Daytime Running Lights (DRL), Integrated Control Unit (ICU) 7.5
19 Backup Lights (Reverse Lights), Shift Lock Solenoid / Control Unit 7.5
20 Daytime Running Lights (DRL), Rear Fog Light 7.5
21 Right Headlight (Low Beam) 10
22 Left Headlight (Low Beam) 10
23 Supplemental Restraint System (SRS) Control Unit / Airbag Module 10
24 Power Window Relay, Moonroof, Headlight Leveling System, Headlight Washers 7.5
25 Integrated Control Unit (ICU), Shift Lock Solenoid, Instrument Cluster 7.5
26 Windshield Wiper and Washer Motor 20
27 Through 1998 models: Cigarette lighter socket 10
1999–2000 models: Cigarette lighter socket 15
28 Through 1997 models: Audio unit 10
1998 models: Audio unit 15
1999–2000 models: Audio unit 10
29 Rear Fog Light, Integrated Control Unit (ICU) 7.5
30 Instrument Panel / Switch Illumination 7.5
31 PGM-FI Main Relay, Powertrain Control Module (PCM/ECM), Integrated Control Unit (ICU) 7.5
32 Parking Lights, License Plate Lights 7.5
33 Shift Lock Solenoid, Key Interlock Solenoid, Combination Light Switch 7.5

Electrical Component Locations

General layout of electronic modules and control units throughout the vehicle.

1 Fuse Box (Under-dash)
2 Shift Lock / Interlock Control Module
3 Door Lock Control Unit / Transmission Control Module (TCM/CVT) / Keyless Entry Receiver
1 Engine Control Module (ECM/PCM)
2 Cruise Control Control Unit
3 Fuel Injector Relay
4 Dash Dimmer Control Module
5 Starter Cut Relay
6 Horn Relay
