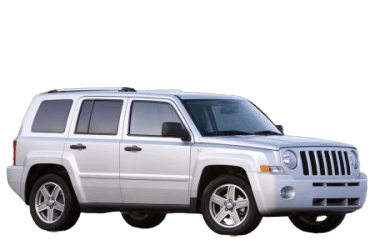

This article provides detailed fuse box diagrams and circuit assignments for the first-generation Jeep Patriot (chassis code MK74; model years 2007–2017).
Fuses 11, 13, and 16 located in the engine compartment supply power to the cigarette lighter and 12V auxiliary power outlets.
In the Engine Compartment
The fuse box (Power Distribution Center) is located in the engine compartment near the air cleaner assembly, under a plastic protective cover.
Fuse box access.
General overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Assignment | Rating |
| Cartridge Fuses (J-Case) | ||
| 1 | Trailer Towing (2014–2017) – If Equipped | 20 A |
| 9 | Power Seats | 40 A |
| 15 | Radiator Fan Relay Battery Feed | 40 A |
| 18 | Auto Shutdown (ASD) Relay Contact Power Feed | 40 A |
| 32 | Auto Shutdown (ASD) Relay | 30 A |
| 34 | ABS Valves Battery Feed | 30 A |
| 35 | ABS Pump Motor Feed | 40 A |
| 36 | Headlamp Washer Control / Smart Glass | 30 A |
| Mini Fuses | ||
| 2 | AWD / 4WD Control Module – If Equipped | 15 A |
| 3 | Center High-Mounted Stop Lamp (CHMSL) Switch | 10 A |
| 4 | Ignition Switch Feed | 10 A |
| 5 | Trailer Towing / Battery Feed for Powertech 6F24 Automatic Transmission (2014–2017) | 20 A |
| 6 | Power Mirrors / Steering Column Control Module / Satellite Radio / Hands-Free Phone (Uconnect) | 10 A |
| 7 | Ignition Off Draw (IOD) Sense 1 | 30 A |
| 8 | Ignition Off Draw (IOD) Sense 2 | 30 A |
| 10 | Power Door Locks / Interior Lighting | 20 A |
| 11 | 12V Auxiliary Power Outlet / Cigarette Lighter | 15 A |
| 12 | Ignition RUN / 115V AC Power Inverter | 20 A |
| 13 | Ignition RUN / Rear 12V Power Outlet & Cigarette Lighter / Dome Lamp | 20 A |
| 14 | IOD CCN / Interior Lighting / Instrument Cluster | 10 A |
| 16 | Ignition RUN/ACC / Cigarette Lighter / Sunroof / Dome Lamp / Rear Wiper Motor | 15 A |
| 17 | IOD Feed / Wireless Control Module (WCM) | 10 A |
| 19 | Radio Amplifier | 20 A |
| 20 | Radio | 15 A |
| 21 | Intrusion Alarm Module / Hazard Lamps – If Equipped | 10 A |
| 22 | HVAC Control / Compass Module | 10 A |
| 23 | Auto Shutdown (ASD) Relay | 15 A |
| 24 | Sunroof | 15 A |
| 25 | Heated Mirrors – If Equipped | 10 A |
| 26 | Auto Shutdown (ASD) Relay | 15 A |
| 27 | Ignition RUN / Occupant Restraint Controller (ORC) Feed | 10 A |
| 28 | Ignition RUN / Occupant Classification Module (OCM) | 10 A |
| 29 | Unused / Spare Battery Feed | — |
| 30 | Heated Seats | 20 A |
| 31 | Headlamp Washer Relay Control Module | 10 A |
| 33 | ABS Module / J1962 Data Link Connector (OBD-II) / Powertrain Control Module (PCM) | 10 A |
| 37 | 115V AC Inverter / Diesel Fuel Heater – If Equipped | 25 A |
