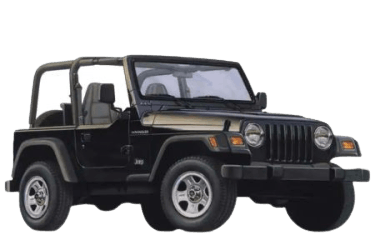

This guide details the fuse box diagrams and panel assignments for the Jeep Wrangler (second generation; TJ chassis) across model years 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, and 2006.
Fuse #17 in the engine compartment (2003–2006 model years) and Fuses #18 or #19 in the interior fuse panel protect the cigarette lighter and auxiliary power outlets.
Engine Compartment
Located in the engine bay near the battery, beneath the protective plastic cover.
2000–2006 Model Years
Engine compartment fuse box layout for vehicles produced for the 2000, 2001, 2002, 2003, 2004, 2005, and 2006 model years.
| Diagram | ||
|---|---|---|
|
||
| No. | Assignment | Rating |
| R1 | Automatic Shut Down (ASD) Relay | |
| R2 | A/C Compressor Clutch Relay | |
| R3 | Transmission Control Relay (2003–2006) | |
| R4 | Starter Motor Relay | |
| R5 | ABS System Relay | |
| R6 | Downstream O2 Sensor Heater Relay (2000–2004) | |
| R7 | Fog Lamp Relay (2002–2006) | |
| Upstream O2 Sensor Heater Relay (2000–2001) | ||
| R8 | Horn Relay | |
| R9 | Jeep Wrangler Fuel Pump Relay | |
| R10 | Rear Window Defogger Relay | |
| R11 | Front Axle Locker Relay (Off-Road Package / 2003–2006) | |
| High-Speed Radiator Cooling Fan Relay (2.4L PowerTech / 2005–2006) | ||
| R12 | Rear Axle Locker Relay (Off-Road Package / 2003–2006) | |
| Low-Speed Radiator Cooling Fan Relay (2.4L PowerTech / 2005–2006) | ||
| ABS Relay (2000–2001) | ||
| 1 | Blower Motor Relay | 40 A |
| 2 | Rear Window Defogger Relay | 40 A |
| 3 | Interior Fuse Panel: Fuses #1, #2, #3 | 40 A |
| 4 | High/Low-Speed Radiator Cooling Fan (2.4L) | 40 A |
| 5 | Transmission Control Relay (2003–2006) | 20 A |
| 6 | Starter Motor Relay, Ignition Switch, Interior Fuses #5–#8 (2003–2006) | 30 A |
| ABS Pump Motor Relay (2000–2001) | 40 A | |
| Starter Motor Relay, Ignition Switch, Interior Fuses #5–#8 (2002) | 40 A | |
| 7 | ABS Relay (2000–2001) | 30 A |
| Multifunction Switch (2002) | 20 A | |
| 8 | ABS Controller (2002–2006) | 40 A |
| Starter Motor Relay, Ignition Switch, Interior Fuses #5–#8 (2000–2001) | 40 A | |
| 9 | Automatic Shut Down (ASD) Relay, Powertrain Control Module (2000–2004) | 30 A |
| Automatic Shut Down (ASD) Relay, Powertrain Control Module (2005–2006) | 20 A | |
| 10 | Circuit Breaker (2002–2006) | 40 A |
| Headlamp Switch (2000–2001) | 30 A | |
| 11 | Turn Signal / Hazard Flasher Switch (2000–2001) | 20 A |
| 12 | Anti-Lock Brake System (ABS) | 30 A |
| 13 |
|
40 A |
| 14 | 2000–2001: Ignition Switch (Cigarette Lighter / Accessory Relay, Interior Fuses #9–#15, #22), Clutch Pedal Position Switch (Manual Transmission) | 30 A |
| 2002: Ignition Switch (Interior Fuses #9–#15, #20), Clutch Pedal Position Switch (Manual Transmission) | 30 A | |
| 15 | Interior Fuse #26 (2003–2006) | 50 A |
| Cigarette Lighter / Accessory Relay, Interior Fuses #18 and #19 (2000–2001) | 40 A | |
| Interior Fuse #24 (2002) | 50 A | |
| 16 | Downstream O2 Sensor Heater Relay (2002–2004) | 15 A |
| Oxygen (O2) Sensors (2000–2001) | 10 A | |
| 17 | Auxiliary Power Outlet (2003–2006) | 20 A |
| Downstream & Upstream O2 Sensor Heater Relays (2000–2001) | 20 A | |
| 18 | Horn Relay | 20 A |
| 19 | Multifunction Switch (Front Fog Lamps) | 20 A |
| 20 | Radio (2003–2006) | 15 A |
| 21 | A/C Compressor Clutch Relay | 10 A |
| 22 | 2003–2006: Ignition Switch (Interior Fuses #9–#14, #22), Clutch Pedal Position Switch (Manual Transmission) | 20 A |
| 23 | Fuel Pump Relay | 20 A |
| 24 | 2003–2006: Front & Rear Axle Locker Relays (Off-Road Package) | 20 A |
| Dome Lamp, Instrument Cluster, Data Link Connector (DLC), Radio, Courtesy Lamps, Underhood Lamp, Sound Bar Lamp (2002) | 10 A | |
| 25 | Dome Lamp, Instrument Cluster, Data Link Connector (DLC), Radio, Courtesy Lamps, Underhood Lamp, Sound Bar Lamp (2000–2001) | 10 A |
| 26 | Dome Lamp, Instrument Cluster, Data Link Connector (DLC), Axle Lock Switch (Off-Road Package), Courtesy Lamps, Compass/Temperature Rearview Mirror, Underhood Lamp (2003–2006) | 10 A |
| Ignition Coil, Fuel Injectors (2000–2002) | 20 A | |
| 27 | Multifunction Switch (2003–2006) | 20 A |
| 28 | Automatic Shut Down (ASD) Relay, Ignition Coil, Fuel Injectors, Coil Capacitor (2003–2006) | 20 A |
| ABS (2000–2001) | 10 A | |
1999 Model Year
Engine compartment fuse box assignment for 1999 model year vehicles.
| Diagram | ||
|---|---|---|
|
||
| No. | Assignment | Rating |
| R1 | Automatic Shut Down (ASD) Relay | |
| R2 | A/C Compressor Clutch Relay | |
| R3 | Horn Relay | |
| R4 | Fuel Pump Relay | |
| R5 | ABS System Relay | |
| R6 | ABS Pump Motor Relay | |
| R7 | Starter Motor Relay | |
| R8 | Rear Window Defogger Relay | |
| 2 |
|
40 A |
| 3 | Ignition Switch (Cigarette Lighter / Accessory Relay, Interior Fuses #9–#15, #20) | 30 A |
| 4 | Interior Fuses #1, #2 | 40 A |
| 5 | Cigarette Lighter / Accessory Relay, Interior Fuses #18, #19 | 40 A |
| 6 | Automatic Shut Down (ASD) Relay, Powertrain Control Module (PCM) | 30 A |
| 7 | Not Used | - |
| 8 | Not Used | - |
| 9 | Turn Signal / Hazard Switch | 20 A |
| 10 | Headlamp Switch | 30 A |
| 11 | HVAC Unit / Blower Motor | 40 A |
| 12 | Not Used | - |
| 13 | ABS Relay | 30 A |
| 14 | ABS Pump Motor Relay | 40 A |
| 15 | Rear Window Defogger Relay | 40 A |
| 16 | A/C Compressor Clutch Relay | 10 A |
| 17 | Horn Relay | 20 A |
| 18 | Fuel Injectors, Ignition Coil (2.5L) | 20 A |
| 19 | Fuel Pump Fuse | 20 A |
| 20 | Underhood Lamp, Left & Right Courtesy Lamps, Radio, Data Link Connector (DLC), Hardtop Dome Lamp, Sound Bar Lamp (4-Speaker System) | 10 A |
| 21 | ABS Pump Motor Relay | 10 A |
| 22 | Not Used | - |
| 23 | Not Used | - |
| 24 | Not Used | - |
| 25 | Fog Lamp Relay #1 | 20 A |
| 26 | Not Used | - |
| 27 | EVAP Leak Detection Pump, Oxygen (O2) Sensor | 10 A |
1997–1998 Model Years
Engine compartment fuse box assignment for 1997 and 1998 model year vehicles.
| Diagram | ||
|---|---|---|
|
||
| No. | Assignment | Rating |
| R1 | Fuel Pump Relay | |
| R2 | Not Used | |
| R3 | Automatic Shut Down (ASD) Relay | |
| R4 | A/C Compressor Clutch Relay | |
| R5 | Horn Relay | |
| R6 | ABS Relay | |
| R7 | Not Used | |
| R8 | ABS Pump Motor Relay | |
| R9 | Starter Motor Relay | |
| R10 | Rear Window Defogger Relay | |
| 2 | Ignition Switch, Interior Fuses #5, #6, #7, #8, #20, Starter Motor Relay, Clutch Pedal Position Switch (Manual Transmission) | 40 A |
| 3 | Ignition Switch (Cigarette Lighter / Accessory Relay, Interior Fuses #9, #10, #11, #13, #14, #15) | 30 A |
| 4 | Interior Fuses #1, #2, #3 | 40 A |
| 5 | Cigarette Lighter / Accessory Relay, Interior Fuses #18, #19 | 40 A |
| 6 | Automatic Shut Down (ASD) Relay, Powertrain Control Module (PCM) | 30 A |
| 7 | Not Used | - |
| 8 | Not Used | - |
| 9 | Turn Signal / Hazard Switch | 20 A |
| 10 | Headlamp Switch | 30 A |
| 11 | Blower Motor Relay | 40 A |
| 12 | Not Used | - |
| 13 | ABS Relay | 30 A |
| 14 | ABS Pump Motor Relay | 40 A |
| 15 | Rear Window Defogger Relay | 40 A |
| 16 | Fuel Pump Relay | 20 A |
| 17 | Dome Lamp, Instrument Cluster, Data Link Connector (DLC), Radio, Courtesy Lamps, Underhood Lamp, Sound Bar Lamp | 10 A |
| 18 | ABS Pump Motor Relay | 10 A |
| 19 | A/C Compressor Clutch Relay | 10 A |
| 20 | Horn Relay | 20 A |
| 21 | Ignition Coil, Fuel Injectors, Oxygen (O2) Sensors | 20 A |
Passenger Compartment
The interior fuse panel is located behind the glove box.
To access the panel, remove the glove box by slipping the check strap off the stop hook and releasing the door from its hinges.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Component Protected | Rating |
| 1 | Sentry Key Immobilizer Module (SKIM) / Headlamp Switch (Multifunction Switch) | 20 A |
| 2 | Brake Stop Lamp Switch | 20 A |
| 3 | "PRNDL" Shift Position Lamp, Front Fog Lamp Switch, Instrument Cluster, Radio, Hardtop Rear Window Defogger Switch, Rear Fog Lamp Switch, A/C-Heater Control, Hardtop Rear Wiper/Washer Switch, Headlamp Switch (1999–2002) | 10 A |
|
20 A | |
| Fog Lamp Relay #1 (1997–1998) | 20 A | |
| 4 | Driver & Passenger Door Ajar Switches, Fog Lamp Relays #1 & #2, Rear Fog Lamp | 10 A |
| 5 | Airbag Control Module (ACM) | 10 A |
| 6 | Hardtop Rear Wiper Motor & Wiper/Washer Switch | 20 A |
| 7 | Park/Neutral Position (PNP) Switch (Automatic Transmission), A/C Compressor Clutch Relay, Back-Up Lamp Switch (Manual Transmission), ABS Controller, Rear Window Defogger | 10 A |
| 8 | A/C-Heater Control Module, HVAC Unit, Blower Motor, Blend Door Actuator (1999–2006) | 10 A |
| A/C-Heater Control Module (1997–1998) | 20 A | |
| 9 | Airbag Control Module, Passenger Airbag Disable (On/Off) Switch | 10 A |
| 10 | Brake Transmission Shift Interlock (BTSI) Solenoid, Instrument Cluster, Compass/Temperature Rearview Mirror | 10 A |
| 11 | Daytime Running Light (DRL) Module, Torque Converter Clutch (TCC) Solenoid, EVAP Purge Solenoid, A/C Controls (1999–2006) | 10 A |
| Daytime Running Light (DRL) Module, TCC Solenoid, EVAP Purge Solenoid, A/C Compressor Relay, Immobilizer Module, EVAP Leak Detection Pump, Powertrain Control Module, Automatic Shut Down (ASD) Relay, Fuel Pump Relay, Rear Window Defogger Relay (1997–1998) | 10 A | |
| 12 | 1999–2006: Sentry Key Immobilizer Module (SKIM), Fuel Pump Relay, Automatic Shut Down (ASD) Relay, Powertrain Control Module (PCM), Downstream & Upstream O2 Sensor Heater Relays | 10 A |
| 1997–1998: "PRNDL" Shift Position Lamp, Front Fog Lamp Switch, Radio, Hardtop Rear Window Defogger Switch, A/C-Heater Control, Hardtop Rear Wiper/Washer Switch, Instrument Cluster, Rear Fog Lamp Switch | 10 A | |
| 13 | Turn Signal / Hazard Flasher Switch (Multifunction Switch), Passenger Airbag Disable Switch (1997–1998) | 10 A |
| 14 | Windshield Wiper System (1997–1999) | 20 A |
| Windshield Wiper System (2000–2002) | 25 A | |
| Radio (2003–2006) | 10 A | |
| 15 | Radio (1997–2002) | 10 A |
| Rear Window Defogger Switch (2003–2006) | 10 A | |
| 16 | Headlamp Leveling Switch & Motors, Rear Fog Lamp | 10 A |
| 17 | Rear Window Defogger Switch (1997–2002) | 10 A |
| Windshield Wiper Motor & Switch (2003–2006) | 25 A | |
| 18 | Unswitched Auxiliary Power (1997–2002) | 15 A |
| Cigarette Lighter Fuse / 12V Auxiliary Power Outlet, Switched Auxiliary Power (2003–2006) | 20 A | |
| 19 | Jeep Wrangler Cigarette Lighter Fuse / Power Outlet, Switched Auxiliary Power (1997–2002) | 20 A |
| 20 |
|
20 A |
