Most power supply circuits in this sedan are protected by fuses. High-current components—such as headlights, cooling fan motors, and the fuel pump—are routed through relays. Protective fuses and relays are housed in power distribution boxes located under the hood and in the passenger compartment.

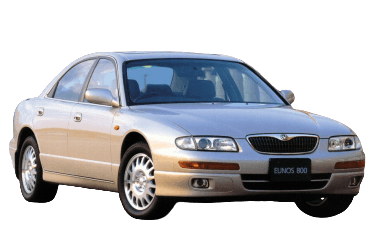

This fuse diagram information applies to 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, and 2003 model year Mazda Xedos 9 / Millenia (chassis code TA) models.
In the Engine Compartment
Component locations.
Fuse Box
The main fuse box is located on the left side of the engine compartment, near the battery.
Overall view.
| Fuse Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Circuit / Description |
| 1 (1) | 120 | Main fuse |
| 2 (2) | 30 | Heater blower motor / A/C condenser fan (AD. FAN) |
| 3 (3) | 30 | EGI INJ - Electronic Gasoline Injection system |
| 4 (4) | 40 | HEAD - Headlights |
| (5) | HORN RELAY | |
| 5 (6) | 60 | Audio system, turn signals, power sunroof, METER, ENGINE, P/WIND, starter system |
| 6 (7) | 30 | FAN - Radiator cooling fan |
| 7 (8) | 60 | ABS - Anti-lock braking system |
| 8 (9) | 40 | HEATER - Climate control (heater and A/C) |
| 9 (10) | 40 | DEFOG - Rear window defroster |
| 10 (11) | 60 | STOP, ROOM, D/LOCK - Brake lights, interior lighting, power door locks, fuel door release |
| 11 (18) | 20 (-) | Audio system (JDM models) |
| 12 (15) | 30 | P/WINDOW - Power windows |
| 13 (12) | 30 | P. SEAT - Power seats |
| 14 | 10 | HORN - Horn |
| 15 (16) | 10 | IDL UP - Engine idle-up control system |
| 16 (13) | 10 | ST.SIGN - Starter signal to ECU |
| 17 (19) | 15 | FOG - Front fog lights |
| 18 (17) | 20 (-) | Heated seats (JDM models) |
| 19 (14) | 15 | TAIL - Parking lights, license plate light, instrument cluster backlighting, dashboard illumination, glove box light, clock |
| (20) |
(-) | MIRROR RELAY - Power side mirrors |
| Relay Assignments | ||
|
||
| R19 | Horn relay | |
| R20 | Oxygen (O2) sensor heater relay | |
| R21 | Fuel pump relay | |
| R22 | Daytime running lights (DRL) relay | |
| R23 | Engine control relay (EGI relay) | |
| R24 | Parking lights relay | |
| R25 | Starter relay | |
| R26 | Fog light relay | |
| Note: Numbers in parentheses () denote Japanese Domestic Market (JDM) models. | ||
Auxiliary Relay Box
Diagram.
No. — Description
- 1 — Cooling fan relay No. 1
- 2 — Cooling fan relay No. 2
- 3 — Fog light relay
- 4 — Cooling fan relay No. 3
In the Passenger Compartment
The interior fuse box is located behind an access cover on the driver's side lower kick panel (near the A-pillar).
| Fuse Panel Diagram (Type 1) | ||
|---|---|---|
|
||
| No. | Rating (A) | Circuit / Description |
| 1 (7) | 15 | HAZARD - Hazard warning lights |
| 2 (22) | 15 | ROOM - Interior lighting, clock |
| 3 (6) | 15 (-) | S/ROOF - Power sunroof (JDM models) |
| 4 (11) | 15 | METER - Instrument cluster, reverse lights, turn signals, cruise control |
| 5 (15) | 20 (15) | STOP - Brake lights |
| 6 (18) | - (15) | 4WS - Four-wheel steering system |
| 7 (21) | 15 | IIA - Integrated Ignition Assembly |
| 8 (5) | 10 (15) | R.DEF - Rear window defroster |
| 9 (10) | 10 | A/C - Air conditioning |
| 10 (14) | 20 | WIPER - Windshield wiper and washer |
| 11 (17) | 10 | M.DEF - Heated side mirrors |
| 12 (20) | 15 (10) | START - Starter circuit |
| 13 (4) | 10 | TURN - Turn signals |
| 14 (9) | 10 (15) | BLOWER - Blower motor / Air conditioning |
| 15 (13) |
(30) | Power windows |
| 16 | - | Not used |
| 17 | - | Not used |
| 18 (3) | 10 | AUDIO - Audio system |
| 19 (8) | 15 | ENGINE - Engine control system |
| 20 (12) | 10 | ILLUMI - Instrument cluster illumination |
| 21 (16) | 15 | Trunk release actuator, fuel filler flap lock actuator |
| 22 | - | Not used |
| 23 (2) | 15 | CIGAR - Cigarette lighter |
| 24 | Not used | |
| 25 | Not used | |
| 26 (19) | 30 | SPARE - Spare fuse |
| 27 | Not used | |
| 28 | Not used | |
| 29 (1) | 30 | D.LOCK - Power door locks / Central locking |
| Note: Numbers in parentheses () denote Japanese Domestic Market (JDM) models. | ||
| Fuse Panel Diagram (Type 2) | ||
|---|---|---|
|
||
| No. | Circuit / Description (Option 1) | Rating (A) |
| 1 | Auxiliary power socket / Cigarette lighter, accessory circuits | 15 |
| 2 | Windshield wiper and washer | 20 |
| 3 | Air conditioning, power sunroof, accessory circuits | 15 |
| 4 | Audio system, accessory circuits | 15 |
| 5 | Rear window wiper/washer, accessory circuits | 10 |
| 6 | Engine Control Module (ECM / ECU) | 7.5 |
| 7 | Spare | |
| 8 | Interior lighting, trunk / luggage compartment light | 10 |
| 9 | Heated side mirrors, accessory circuits | 7.5 |
| 10 | Spare | |
| 11 | Central locking system, accessory circuits | 30 |
| 12 | Parking lights, headlights | 15 |
| 13 | Spare | |
| 14 | Engine control system, Anti-lock Braking System (ABS) | 10 |
| 15 | Instrument cluster, turn signals, reverse lights | 15 |
| 16 | Power windows | 20 |
| 17 | 30 | |
| No. | Circuit / Description (Option 2) | Rating (A) |
| 1 | Heated seats | 15 |
| 2 | Headlight washers | 20 |
| 3 | Audio system, center console accessories, clock, cigarette lighter | 15 / 20 |
| 4 | Air conditioning, power sunroof | 15 |
| 5 | Rear window wiper | 10 |
| 6 | Engine Control Module (ECU) | 10 |
| 7 | Spare | |
| 8 | Interior lighting | 10 |
| 9 | Heated side mirrors | 10 |
| 10 | Heated seats | 15 |
| 11 | Central locking system | 30 |
| 12 | Taillights, parking lights | 15 / 20 |
| 13 | Windshield wiper and washer | 20 |
| 14 | Engine control system, Anti-lock Braking System (ABS) | 10 |
| 15 | Instrument cluster, turn signals, reverse lights | 15 |
| 16 | Spare | |
| 17 | Power windows | 30 |
