The Corsa is a supermini produced since 1982. The sixth generation was introduced in 2019 and is manufactured as a 5-door hatchback. In this guide, we will take a detailed look at the fuse box diagrams for the Opel / Vauxhall Corsa F (sixth generation; CMP platform; code name G2J0) for the 2019, 2020, 2021, 2022, 2023, and 2024 model years.
Below you will find fuse box locations, layout diagrams, and photos of the power distribution centers. Fuses for key circuits such as the "Cigarette lighter" and "Fuel pump" are highlighted in bold.
Engine Compartment Fuse Box
The underhood fuse box is located on the left side of the engine bay, adjacent to the 12 V battery.
General view.
| Diagram | |
|---|---|
|
|
| No. | Description |
| R1 | Engine Control Module (ECM) / Euro 6 Diesel (SCR module power supply) |
| R2 | A/C compressor clutch / Heated windshield |
| R3 | Starter relay / Glow plug preheating |
| R4 | Front fog lamps / Daytime running lights (DRL) |
| R5 | A/C condenser fan relay |
| R6 | Starter motor |
| R7 | Windshield wiper motor |
| R8 | Windshield wiper motor |
| R9 | Headlamp relay |
| F1 | A/C condenser fan motor |
| F2 | ABS / ESP system module |
| F3 | Passenger compartment fuse box 3 |
| F4 | ABS / ESP control unit |
| F5 | Body Control Module (BCM) (Right turn indicators, front right parking lamps, right stop lamps, left reverse lamp, right fog lamp); Heated windshield (20 A) |
| F6 | Dual-speed engine cooling fan control unit (GMV); Automatic transmission (AT AxN8 / Ax6III) (20 A) |
| F7 | Body Control Module (BCM) |
| F8 | Engine management fuel pump (gasoline fuel pump fuse) |
| F9 | Controlled fuel priming pump (DW10F), intake/exhaust variable valve timing (VVT) solenoids – Electronically controlled thermostat – Oil pump solenoid valve – Air intake flow meter – Oxygen (O2) sensors (EP6FADTX) – Switchable coolant pump, electric solenoid valve (EP6FDT) |
| F10 | Engine Control Module (ECM) – Diesel flow control solenoid – Turbocharger wastegate control solenoid (DV5R and DW10F) – Thermostat solenoid (DV5R) – EVAP canister purge heater – Variable valve timing (VVT) solenoids (EP6FADTX) – Cylinder purge – Oxygen (O2) sensors (EB2ADTS) |
| F11 | Engine Control Module (ECM) |
| F12 | OBD-II diagnostic connector |
| F13 | Body Control Module (BCM) |
| F14 | Battery monitoring unit (BMS) |
| F15 | Trailer control module / Electric vehicles: Service disconnect plug |
| F16 | Front fog lamps and Daytime Running Lights (DRL) (10 A) |
| F17 | Powertrain relay diagnostics – Engine Control Module (ECM) – Downstream NOx sensor (DV5R and DW10 injectors) |
| F18 | Right headlamp – High beam |
| F19 | Left headlamp – High beam |
| F20 | Engine Control Module (ECM) / Fuel lift pump (EP6FDT) – Ignition coils (EB2ADTS and EP6FADTX) |
| F21 | Starter motor |
| F22 | Spare / Taxi equipment |
| F23 | Starter motor / Alternator / AC-DC inverter |
| F24 | Trailer interface module |
| F25 | Passenger compartment fuse box 3 |
| F26 | Transmission Control Module (TCM) / Electric Vehicles: Drive motor controller (Electric motor and Inverter) |
| F27 | Body Control Module (BCM) (Right low beam headlamp – Right reverse lamp – Left fog lamp – Rear left tail lamp – Center high-mounted stop lamp) |
| F28 | Urea (AdBlue) dosing pump and heater supply lines (ECU or DV5R) – NOx sensor (DW10F) – Engine Control Module (EP6FADTX) |
| F29 | Windshield wipers |
| F30 | Glow plug control module |
| F31 | HVAC system (heating and ventilation), A/C blower motor |
| F32 | Electric Power Steering (EPS), Left low beam headlamp – Cornering lamps – Side turn indicators – Left turn indicators – Front left and rear right tail lamps – Left stop lamps – License plate lamps |
Passenger Compartment Fuse Boxes
There are two fuse blocks inside the cabin that protect the vehicle's interior electrical circuits.
Main Cabin Fuse Box
Located behind the instrument panel trim on the left side of the dashboard. To gain access, unclip and remove the lower trim panel.
General view.
| Diagram | |
|---|---|
|
|
| No. | Circuit Protected |
| F1 | Auto-dimming interior rearview mirror / Electric Power Steering (EPS) column / Drive mode select / Radar sensor / Diesel exhaust system |
| F3 | Wireless phone charger (inductive charging pad) |
| F4 | Horn |
| F5 | Windshield washer pump (front and rear) |
| F6 | Windshield washer pump (front and rear) |
| F7 | Rear 12 V power outlet / USB charging ports |
| F8 | Rear window wiper motor |
| F10 | Central locking system (front and rear door locks) |
| F11 | Central locking system (front and rear door locks) |
| F12 | Stop-Start system / OBD-II diagnostic module / Braking system |
| F13 | Infotainment head unit / Automatic climate control |
| F14 | Anti-theft alarm siren |
| F15 | Headlamp control module / Internal combustion engine models: Not used / Electric vehicles: Electronic gear selector module |
| F16 | Stop-Start system / Braking system |
| F17 | Instrument cluster / Dashboard display |
| F18 | Park Assist control module |
| F19 | Electronic steering column lock / Steering wheel multifunction switches |
| F21 | Anti-theft alarm system |
| F22 | ADAS forward camera / Rain sensor / Automatic headlamp sensor |
| F23 | Seat belt reminder (SBR) system |
| F24 | Automatic Transmission control / Advanced Park Assist / 360° Surround view camera system |
| F25 | Supplemental Restraint System (SRS / Airbags) |
| F26 | Electronic Stability Control (ESC / ESP) |
| F27 | Security alarm module |
| F28 | OnStar / Telematic Control Unit (BTA module) |
| F29 | Infotainment system |
| F31 | Corsa F cigarette lighter / Front 12 V power outlet fuse |
| F34 | Heated rear window / Heated windshield / Wireless charging pad |
| F35 | Not used |
| F36 | Not used |
Auxiliary Cabin Fuse Box

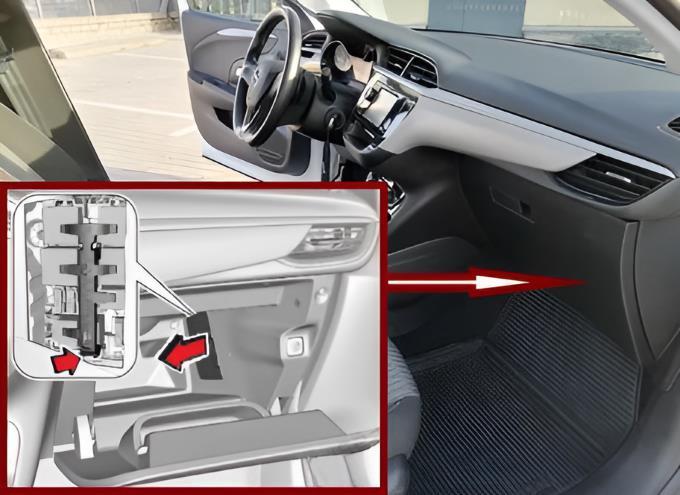

Located behind the glove compartment assembly.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating |
| R01 | Heated seats relay | |
| R02 | Power windows relay | |
| R03 | Cabin heater / Heated rear window relay | |
| R04– | Not used (Spare) | |
| R07 | ||
| F1 | Heated rear window | 40 A |
| F2 | Heated exterior power mirrors | 10 A |
| F3 | Front power windows | 30 A |
| F4 | Power folding exterior mirrors / Mirror adjustment switch | 10 A / 15 A |
| F5 | Rear power windows | 30 A |
| F6 | Heated seats | — |
| F7 | Not used (Spare) | — |
| F8 | Fuse box (Right dashboard module) | — |
| F9 | Not used (Spare) | — |
| F10 | Front heated seats | 20 A |
| F11 | Front seat massage function | 20 A |
| F12 | Not used (Spare) | — |
