This article provides a detailed overview of the fuse box diagrams for the Volkswagen Tiguan (second generation, facelift, chassis codes AD, BW; MQB A2 platform) for the 2020, 2021, 2022, 2023, and 2024 model years.
Fuses numbered 16, 40, and 46 in the passenger compartment fuse box protect the electrical circuits for the USB charging ports and the 12V power outlets (cigarette lighter).
In the engine compartment
The fuse box is located on the left side of the engine compartment. To access it, you must remove the protective cover.
General view of the Volkswagen Tiguan engine compartment fuse box.
| Diagram | ||
|---|---|---|
 |
||
| No. | Description | Current (A) |
| R1 | Starter relay 1 | |
| R2 | Starter relay 2 | |
| R3 | Horn relay | |
| R4 | 2.0 L petrol: Secondary air injection (SAI) pump relay | |
| R5 | Petrol: Engine control module (ECM) power supply relay | |
| R6 | Empty | |
| R7 | Empty | |
| R8 | Engine components power supply relay | |
| R9 | Heated windshield relay | |
| R1 | Heated windshield relay | |
| SA1 | Power supply for passenger compartment fuses: 1, 2, 5, 14, 22, 32, 42, 46, 47, 49, 51, 53 | 125 |
| SA2 | Alternator with voltage regulator | 400 |
| 508 | Battery terminal | |
| SA3 | Power steering control module | 80 |
| SA4 | Power supply for passenger compartment fuses: 3, 15, 20, 23, 28, 43, 45, 50 | 80 |
| SA5 | Radiator fan motor | 50 |
| F1 | Anti-lock braking system (ABS) control module | 25 |
| F2 | Anti-lock braking system (ABS) control module | 40 |
| F3 | Engine control module (ECM) | 15 / 30 |
| F4 | Oil pressure control valve, cylinder 2 and 3 intake and exhaust camshaft actuators, intake manifold runner control valve, EVAP canister purge regulator valve 1, camshaft control valve 1, turbocharger recirculation valve, oil level and temperature sensor, piston cooling injector control valve 2.0 L petrol: Engine components power supply relay, secondary air injection (SAI) pump relay Diesel: Wastegate bypass regulator valve, low heat output relay, automatic glow plug control module, heater support pump, reductant dosing system relay, mass airflow (MAF) sensor, fuel pressure regulator valve, fuel metering valve, high heat output relay 2.0 L petrol: Radiator fan motor 1.5 L petrol: Vacuum pump relay 1.4 L petrol: Ethanol concentration sensor |
7.5 / 10 |
| F5 | Diesel: Fuel metering valve, fuel pressure regulator valve 2.0 L petrol: Cylinders 1–4 fuel injectors, cylinders 1–4 intake camshaft actuators A and B |
10 |
| F6 | Brake light switch | 7.5 |
| F7 | Engine temperature control actuator, after-run coolant pump, piston cooling injector control valve, coolant shut-off valve, cylinder head coolant valve, fuel tank leak detection control module, oil pressure regulating valve, diesel pump heater, positive crankcase ventilation (PCV) heating element 1.4 L petrol: Charge air cooling pump 1.5 L petrol: Exhaust system control module, cylinder 2 and 3 intake and exhaust camshaft actuators 2.0 L petrol: Transmission coolant valve |
7.5 / 10 |
| F8 | Diesel : Particulate matter (PM) sensor control module 1 1.4 L petrol : Oxygen sensors 1 (upstream and downstream of catalytic converter) |
10 / 15 |
| F9 | Petrol: Ignition coils 1–4 with power output stage 2.0 L petrol: Exhaust camshaft control valve 1, EVAP canister purge regulator valve, camshaft control valve 1, secondary air injection (SAI) solenoid valve, after-run coolant pump, high heat output relay |
10 / 20 |
| F10 | Fuel pump control module | 15 / 20 |
| F11 | Diesel: Auxiliary heater element | 40 |
| F11 | Secondary air injection (SAI) pump motor | 50 |
| F12 | Diesel: Auxiliary heater element | 40 |
| F13 | Automatic transmission auxiliary hydraulic pump 1 | 30 |
| F14 | Heated windshield relay (4GW) | 40 |
| F15 | Horn relay | 15 |
| F16 | 2.0 L petrol: Engine components power supply relay | 20 |
| F17 | Engine control module (ECM), heated windshield relay, ABS control module, terminal 30 power supply relay | 7.5 |
| F18 |
|
7.5 |
| F19 | Windshield wiper motor | 30 |
| F20 | Empty | - |
| F21 | Direct-shift gearbox (DSG) mechatronics, transmission control module (TCM) | 15 |
| F22 | Engine control module (ECM) | 7.5 |
| F23 | Starter motor | 30 |
| F24 | Auxiliary heater element | 40 |
| F25 | Empty | - |
| F26 | Empty | - |
| F27 | Empty | - |
| F28 | Empty | - |
| F29 | Empty | - |
| F30 | Empty | - |
| F31 | Empty | - |
| F32 | Empty | - |
| F33 | Empty | - |
| F34 | Heated windshield relay (4GT) | 10 |
| F35 | Empty | - |
| F36 | Left headlight assembly | 15 |
| F37 | Auxiliary heater control module (vehicles with auxiliary parking heater) | 20 |
| F38 | Right headlight assembly | 15 |
In the passenger compartment

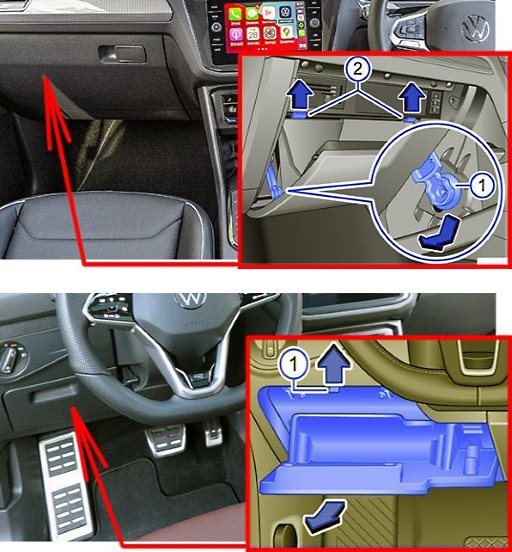

The fuse box is located on the left side of the dashboard, behind the storage compartment.
General view of the passenger compartment fuse box.
| Diagram | ||
|---|---|---|
 |
||
| No. | Description | Current (A) |
| R1 | 1.5 L petrol: Vacuum pump relay | |
| R2 | A/C compressor clutch relay | |
| R3 | Empty | |
| R4 | Terminal 15 power supply relay | |
| R5 | Heated rear window relay | |
| R6 | 12V power outlet / cigarette lighter relay | |
| F1 | Reductant heater control module | 20 |
| F2 | Steering column electronics control module | 10 |
| F3 | Empty | - |
| F4 | Anti-theft alarm system | 7.5 |
| F5 | Remote start system relay, OBD data bus | 7.5 |
| F6 | Automatic transmission gear selector mechanism, ignition switch solenoid, ignition switch | 7.5 |
| F7 | Rear A/C display control module, tire pressure monitoring system (TPMS) control module, auxiliary coolant heater, RF receiver, A/C compressor clutch relay, heated rear window relay | 10 |
| F8 | Cornering light and headlight control module, anti-theft alarm sensor, rain/light sensor, electronic parking brake switch, driving profile selection system, interior door lighting (left rear, right rear, left front, right front), ambient lighting, diagnostic connector 1 | 7.5 |
| F9 | Steering column electronics control module, ignition/starter switch | 7.5 |
| F10 | Front information display control module, head-up display (HUD) control module | 7.5 |
| F11 | Body control module (BCM) – left exterior lighting | 40 |
| F12 | Information electronics control module 1 | 20 |
| F13 | Left front seat belt pretensioner control module | 25 |
| F14 | Fresh air blower control module | 40 |
| F15 | Electronic steering column lock control module | 10 |
| F16 | Two-way mobile signal amplifier, 1 USB port, storage compartment with mobile phone interface From 2023: 1 USB charging port |
10 / 7.5 |
| F17 | Emergency call module and instrument cluster communication control module | 7.5 |
| F18 | Surround view camera control module, tailgate handle | 7.5 |
| F19 | Keyless entry/start system (KESSY) interface | 7.5 |
| F20 | Reductant dosing system relay, vacuum pump relay | 10 / 15 |
| F21 | All-wheel drive (AWD) control module | 15 |
| F22 | Trailer recognition control module | 15 |
| F23 | Sunroof control module | 20 |
| F24 | Body control module (BCM) – right exterior lighting | 40 |
| F25 | Driver door control module | 30 |
| F26 | Body control module (BCM) – seat heating | 30 |
| F27 | Body control module (BCM) – interior lighting | 30 |
| F28 | Trailer recognition control module (left) | 25 |
| F29 | A/C refrigerant pressure sensor, remote start relay | 7.5 |
| F30 | Remote start relay | 10 |
| F31 | Tailgate control module | 30 |
| F32 | Driver assistance systems: front camera, parking assist control module, lane change assist control modules 1 and 2, adaptive cruise control (ACC) module | 7.5 |
| F33 | Airbag control module, front passenger airbag deactivation warning lamp | 7.5 |
| F34 | Auto-dimming interior rearview mirror, rotary light switch, reversing light switch, air quality sensor, A/C refrigerant pressure sensor, relay connectors | 7.5 |
| F35 | OBD diagnostic connector | 7.5 |
| F36 | Empty | - |
| F37 | Empty | - |
| F38 | Trailer recognition control module (right) | 25 |
| F39 | Front passenger door control module | 30 |
| F40 | 12V power outlet / cigarette lighter relay, 12V sockets 1 and 3 | 20 |
| F41 | Right front seat belt pretensioner control module | 25 |
| F42 | Body control module (BCM) – central locking | 40 |
| F43 | Digital sound system control module | 40 |
| F44 | Trailer recognition control module | 15 |
| F45 | Front passenger and driver seat adjustment control modules | 15 |
| F46 | Up to 2022: Relay sockets, USB charging port 1 | 7.5 |
| F47 | Rear window wiper motor | 15 |
| F49 | Starter relay 1, starter relay 2, remote start relay, clutch position sensor | 7.5 |
| F50 | Empty | - |
| F51 | Power front passenger seat adjustment switch 1, rear A/C display control panel, rear seat heating | 25 |
| F52 | Adaptive chassis control (DCC) damping module | 25 |
| F53 | Heated rear window relay | 30 |

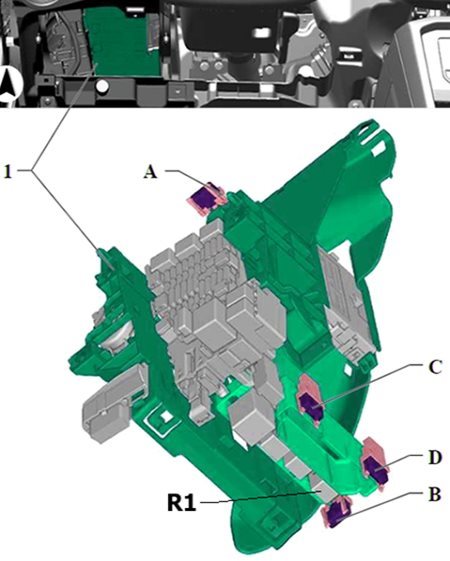

Additional separate fuses are located near the main fuse box.
Left-Hand Drive (LHD) :
- A - Power front passenger seat adjustment switch 1 (15 A);
- B - Power front passenger seat adjustment switch 2 (15 A);
- C - Power outlet fuse 1 (30 A);
- D - Fuse 1 (Terminal 15) (7.5 A);
- R1 - Remote start system relay
Right-Hand Drive (RHD) :
- A - Power front passenger seat adjustment switch (15 A);
- H - Power outlet fuse 1 (30 A);
- Other slots are empty
