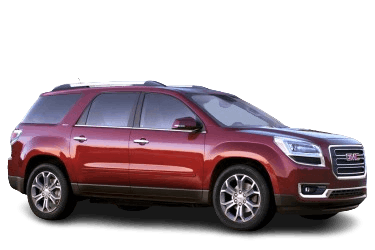

The GMC Acadia is a full-size crossover SUV produced by General Motors under the GMC brand since December 2006. It replaced the Envoy mid-size SUV in the model lineup and is built on the GM Lambda platform. This article provides detailed fuse box diagrams and panel assignments for the first-generation facelift GMC Acadia (Lambda platform, chassis code GMT968) for model years 2013, 2014, 2015, and 2016.
Below you will find fuse box locations, diagrams, and photos. Fuses responsible for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.
In the Passenger Compartment
Located beneath the instrument panel on the passenger side.
Accessing the panel.
Overview of the GMC Acadia passenger compartment fuse box.
| Diagram | |
|---|---|
| Label | Description |
| Front Side | |
|
|
| STR WHL ILLUM | Steering Wheel Illumination |
| RT TRN SIG | Passenger Side Turn Signal |
| RPA/SBZA/UGDO | Rear Parking Assist / Side Blind Zone Alert / Universal Garage Door Opener |
| REAR WPR | Rear Wiper |
| RDO | Radio |
| PWR MODE | Power Mode Switch Module |
| PWR MIR | Power Mirrors |
| PDM | Passenger Door Module (Power Mirrors, Liftgate Release) |
| LT TRN SIG | Driver Side Turn Signal |
| INFOTMNT/MSM | Infotainment / Memory Seat Module |
| INADV PWR INT LAMP | Inadvertent Power / Interior Ambient Lighting |
| HVAC | Heating, Ventilation, and Air Conditioning (HVAC) |
| HTD/COOL SEAT | Heated / Cooled Seats |
| FRT WSW | Front Windshield Washer |
| EMPTY | Not Used |
| DSPLY | Display Module |
| DRL/LO BEAM | Daytime Running Lamps Relay / Low Beam Headlamps Relay |
| DR LCK | Power Door Locks |
| CTSY | Courtesy Lamps |
| CNSTR/VENT | EVAP Canister Vent Solenoid |
| BCM | Body Control Module (BCM) |
| BCK/UP/STOP | Backup Lamps / Stop Lamps |
| AMP | Audio Amplifier |
| AIRBAG | Airbag System (SRS) |
| * | GMC Non-HID Models: High-Beam Shutter Solenoid |
| # | GMC Non-HID Models: Low Beam |
| Back Side | |
|
|
| DRL/LO BEAM | Daytime Running Lamps Relay / Low Beam Headlamps |
| Daytime Running Lamps Relay (If Equipped) | |
| FOG LAMPS | Fog Lamps Relay (Chevrolet Models) |
| FRT/WSW | Front Windshield Washer |
| L/GATE | Power Liftgate |
| LCK | Power Door Locks |
| LT/PWR/SEAT | Driver Side Power Seat |
| LT/UNLCK | Driver Door Unlock |
| PWR/COLUMN | Power Steering Column |
| PWR/WNDW | Power Windows |
| REAR/WSW | Rear Window Washer |
| RT/PWR/SEAT | Passenger Side Power Seat |
| UNLCK | Power Door Unlock |
In the Engine Compartment
The engine compartment fuse block is located on the passenger side, under a protective plastic cover.
General view.
| Diagram | |
|---|---|
GMC Acadia with Halogen Headlamps |
|
GMC Acadia with HID Headlamps |
|
| Relays | Assignment |
| WPR HI | Windshield Wiper High Speed |
| WPR | Windshield Wiper |
| TRLR BCK/UP | Trailer Backup Lamps |
| Stop Lamps | Stop Lamps (China Market Models) |
| RT TRLR STOP/TRN | Right Trailer Stop and Turn Signal Lamp |
| RT DRL | Right Daytime Running Lamp (DRL) |
| RR DEFOG | Rear Window Defogger |
| PWR/TRN | Powertrain Relay |
| PRK LAMP | Parking Lamps |
| LT TRLR STOP/TRN | Left Trailer Stop and Turn Signal Lamp |
| LT DRL | Left Daytime Running Lamp (DRL) |
| IGN | Main Ignition Relay |
| HORN | Horn |
| HID/LO BEAM | High-Intensity Discharge (HID) Low-Beam Headlamps |
| HI BEAM | High-Beam Headlamps |
| HDLP WASH FOG LAMP |
Headlamp Washer (China Market Models) / Fog Lamps (GMC) |
| FOG LAMPS | Fog Lamps |
| FAN 3 | Cooling Fan 3 |
| FAN 2 | Cooling Fan 2 |
| FAN 1 | Cooling Fan 1 |
| CRNK | Starter Crank Relay |
| AUX VAC PUMP | Auxiliary Vacuum Pump |
| A/C CMPRSR CLTCH |
Air Conditioning Compressor Clutch |
| Fuses | Assignment |
| WPR/WSW | Windshield Wiper / Washer |
| TCM | Transmission Control Module (TCM) |
| TRANS | Transmission Controls |
| RT TRLR STOP/TRN |
Right Trailer Stop and Turn Signal |
| TRLR PWR | Trailer Auxiliary Power |
| TRLR PRK LAMP | Trailer Parking Lamps |
| LT TRLR STOP/TRN |
Left Trailer Stop and Turn Signal |
| TRLR BRK | Trailer Brake Controller |
| TRLR BCK/UP | Trailer Backup Lamps |
| S/ROOF SUNSHADE |
Sunroof / Power Sunshade |
| STRTR | Starter Motor |
| SPARE | Spare |
| SERVICE | Data Link Connector (DLC) / Service Port |
| RT PRK | Right Parking Lamp |
| RT LO BEAM | Right Low-Beam Headlamp |
| RT HI BEAM | Right High-Beam Headlamp |
| RT DRL | Right Daytime Running Lamp (DRL) |
| RVC SNSR | Regulated Voltage Control Sensor |
| RR DEFOG | Rear Window Defogger |
| RR HVAC | Rear HVAC System |
| RR APO | Rear Accessory Power Outlet (12V) / Rear Cigarette Lighter |
| PCM IGN | Powertrain Control Module (PCM) Ignition |
| PWR OUTLET | Auxiliary Power Outlet |
| PWR L/GATE | Power Liftgate |
| ODD COILS | Odd Cylinder Ignition Coils / Fuel Injectors |
| LT PRK | Left Parking Lamp |
| LT HI BEAM | Left High-Beam Headlamp |
| LT DRL | Left Daytime Running Lamp (DRL) |
| FOG LAMPS | Fog Lamps |
| HUMIDITY/MAF | Humidity Sensor / Mass Air Flow (MAF) Sensor |
| HORN | Horn |
| HVAC BLWR | HVAC Blower Motor |
| HTD MIR | Heated Exterior Mirrors |
| * | Headlamp Washer (China Market Models) / Fog Lamps (GMC) |
| FSCM | Fuel System Control Module (FSCM) |
| EVEN COILS | Even Cylinder Ignition Coils / Fuel Injectors |
| ECM 1 | Engine Control Module 1 (ECM) |
| EMISSION 2 | Emissions Controls |
| EMISSION 1 | |
| FAN 2 | Engine Cooling Fan |
| FAN 1 | |
| CIGAR LIGHTER |
Cigarette Lighter Fuse |
| BATT 3 | Battery Main Feed |
| BATT 2 | |
| BATT 1 | |
| AUX VAC PUMP |
Auxiliary Vacuum Pump |
| AUX POWER | Auxiliary Power Outlet / Cigarette Lighter |
| ABS MTR | ABS Pump Motor |
| AWD | All-Wheel Drive (AWD) System |
| AIRBAG | Airbag Sensing and Diagnostic Module (SDM) |
| A/C CLUTCH | Air Conditioning Compressor Clutch |
| AFS | Adaptive Forward Lighting (AFL) System |
