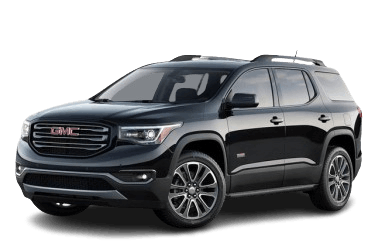

The second-generation GMC Acadia debuted in Detroit in 2016. Produced at GM's Spring Hill, Tennessee assembly plant starting with the 2017 model year, it was marketed primarily in North America. Engine options included a naturally aspirated 2.5 L inline-four (197 hp) and a naturally aspirated 3.6 L V6 (310 hp), both mated to a 6-speed automatic transmission. This article provides detailed fuse box diagrams and panel layouts for the second-generation GMC Acadia (C1XX platform; chassis code C1UT) model years 2016, 2017, 2018, and 2019.
Below you will find power distribution center locations and component diagrams. Fuses assigned to the auxiliary power outlets (“cigarette lighters”) are highlighted in bold.
Engine Compartment Fuse Block
The engine compartment fuse block is located on the driver side, beneath a protective plastic cover.
Access panel removal.
| Diagram | |
|---|---|
|
|
| Component | Description |
| Relays | |
| K1 | Starter Relay 1 |
| K2 | Run/Crank Relay |
| K3 | Starter Relay 3 |
| K4 | LED Headlamps / Automatic Headlamp Relay |
| K5 | Not Used |
| K6 | Engine Coolant Pump Relay |
| K7 | Engine Control Module (ECM) Relay |
| K8 | Air Conditioning (A/C) Compressor Clutch Relay |
| K9 | Not Used |
| K10 | Starter Relay 2 |
| Fuses | |
| F1 | Antilock Brake System (ABS) Valve |
| F2 | Starter 1 |
| F3 | DC/DC Converter 1 |
| F4 | Not Used |
| F5 | Not Used |
| F6 | Not Used |
| F7 | DC/DC Converter 2 |
| F8 | Starter 3 |
| F9 | Not Used |
| F10 | Not Used |
| F11 | Not Used |
| F12 | Front Windshield Wiper Motor |
| F13 | Starter 2 |
| F14 | LED Headlamps / Automatic Headlamp Leveling Module |
| F15 | Rear Window Wiper 1 |
| F16 | Not Used |
| F17 | Not Used |
| F18 | Automatic Headlamp Leveling System |
| F19 | Not Used |
| F20 | Not Used |
| F21 | Not Used |
| F22 | Electronic Brake Control Module (EBCM) |
| F23 | Parking Lamps / Trailer Park Lamps |
| F24 |
|
| F25 | Electronic Steering Column Lock |
| F26 | Not Used |
| F27 |
|
| F28 | Not Used |
| F29 | Not Used |
| F30 | Windshield Washer Pump |
| F31 | Right Headlamp (Low Beam) |
| F32 | Left Headlamp (Low Beam) |
| F33 | Front Fog Lamps |
| F34 | Horn |
| F35 | Not Used |
| F36 | Left Headlamp (High Beam) |
| F37 | Right Headlamp (High Beam) |
| F38 | Automatic Headlamp Leveling Actuator |
| F39 | Transmission Control Module (TCM) 1 |
| F40 | Left Rear Electrical Center / Ignition Feed |
| F41 | Instrument Cluster |
| F42 | Heating, Ventilation, and Air Conditioning (HVAC) |
| F43 | Head-Up Display (HUD) |
| F44 | Not Used |
| F45 | Not Used |
| F46 | Not Used |
| F47 | Not Used |
| F48 | Rear Window Wiper 2 |
| F49 | Auto-Dimming Rearview Mirror / Trailer Interface |
| F50 | Fuel System Control Module (FSCM) |
| F51 | Heated Steering Wheel |
| F52 | A/C Compressor Clutch |
| F53 | Transmission Range Control Module (TRCM) |
| F54 | Auxiliary Engine Coolant Pump |
| F55 | Not Used |
| F56 | Not Used |
| F57 | Engine Control Module (ECM) / Ignition Feed |
| F58 | Transmission Control Module (TCM) / Ignition Feed |
| F59 | Engine Control Module (ECM) Battery Feed |
| F60 | Transmission Control Module (TCM) 2 |
| F61 | Heated Oxygen Sensor (HO2S) 1 / Active Aero Shutter |
| F62 | Engine Control Module (ECM) Odd Cylinder Power |
| F63 | Heated Oxygen Sensor (HO2S) 2 |
| F64 | Engine Control Module (ECM) Even Cylinder Power |
| F65 | Engine Control Module (ECM) Powertrain 1 Feed |
| F66 | Engine Control Module (ECM) Powertrain 2 Feed |
| F67 | Transmission Range Control Module (TRCM) Powertrain Feed |
| F68 | Not Used |
| F69 | Not Used |
| F70 | Not Used |
| F71 | Not Used |
| F72 | Not Used |
| F73 | Not Used |
| F74 | Not Used |
| F75 | Not Used |
| F76 | Not Used |
| F77 | Not Used |
Rear Compartment Fuse Block
Located in the driver-side (left) cargo area panel. Remove the thumbnut and detach the access trim cover.
Rear cargo area fuse block location.
| Diagram | |
|---|---|
|
|
| No. | Description |
| F1 | Not Used |
| F2 | Trailer Auxiliary Battery Power 1 |
| F3 | Driver Active Safety Belt Pretensioner Module |
| F4 | Rear HVAC Blower Motor |
| F5 | Rear Drive Control Module / All-Wheel Drive (AWD) Module |
| F6 | Passenger Active Safety Belt Pretensioner Module |
| F7 | Right Power Windows |
| F8 | Rear HVAC Auxiliary Heater |
| F9 | Left Power Windows |
| F10 | Not Used |
| F11 | Trailer Backup Lamps |
| F12 | Not Used |
| F13 | Not Used |
| F14 | Not Used |
| F15 | Not Used |
| F16 | Not Used |
| F17 | Rearview / Surround-Vision Camera Module |
| F18 | Trailer Interface Module |
| F19 | Front Ventilated Seats |
| F20 | Not Used |
| F21 | Trailer Connector Power |
| F22 | Not Used |
| F23 | Not Used |
| F24 | Passenger Power Window Switch |
| F25 | Not Used |
| F26 | Trailer Brake Controller Module |
| F27 | Driver Ventilated Seat / Lumbar Support |
| F28 | Keyless Entry / Passive Start Module |
| F29 | Not Used |
| F30 | EVAP Canister Vent Solenoid Valve |
| F31 | Not Used |
| F32 | Heated Exterior Mirrors |
| F33 | Not Used |
| F34 | Power Liftgate Control Module |
| F35 | Fuel System Control Module (FSCM) |
| F36 | Passenger Ventilated Seat / Lumbar Support |
| F37 | Not Used |
| F38 | Power Window Master Control Module |
| F39 | Liftgate Latch Control |
| F40 | Driver Memory Seat Module |
| F41 | Front Passenger Sensing System (Occupancy Sensor) |
| F42 | Trailer Auxiliary Battery Power 2 |
| F43 | Not Used |
| F44 | Not Used |
| F45 | Power Liftgate Motor |
| F46 | Rear Heated Seats |
| F47 | Not Used |
| F48 | Glass Breakage Sensor |
| F49 | Not Used |
| F50 | Not Used |
| F51 | Not Used |
| F52 | Continuous Damping Real-Time Suspension Module |
| F53 | Rear Parking Assist / Rear Video / Auxiliary USB Hub |
| F54 | Side Blind Zone Alert (SBZA) / Rear Cross Traffic Alert |
| F55 | Not Used |
| F56 | Universal Garage Door Opener (UGDO) / Rain-Sensing Wipers |
| F57 | Theft-Deterrent System Module |
| CB1 | Not Used |
| CB2 | Not Used |
| CB3 |
|
| K1 | Not Used |
| K2 | Not Used |
Instrument Panel Fuse Block
The instrument panel fuse block is located inside the passenger compartment behind the trim cover on the right side of the center console.
Access panel removal.
| Diagram | |
|---|---|
|
|
| No. | Description |
| F1 | Body Control Module (BCM) 6 |
| F2 | Data Link Connector (DLC / OBD-II) |
| F3 | Electronic Steering Column Lock |
| F4 | Not Used |
| F5 | Logistics Relay / Transport Mode Control |
| F6 | Climate Control (HVAC) Module |
| F7 | Body Control Module (BCM) 3 |
| F8 | Head-Up Display (HUD) Switch |
| F9 | Right Front Heated Seat Module |
| F10 | Supplemental Restraint System (SRS Airbag) Module |
| F11 | Electronic Transmission Range Selector (ETRS) |
| F12 | Audio Amplifier |
| F13 | Body Control Module (BCM) 7 |
| F14 | Left Front Heated Seat Module |
| F15 | Instrument Panel Control Switch Bank |
| F16 | Sunroof Control Module |
| F17 | Body Control Module (BCM) 1 |
| F18 | Instrument Cluster (IPC) |
| F19 | Not Used |
| F20 | Rear Seat Entertainment (RSE) System |
| F21 | Body Control Module (BCM) 4 |
| F22 | Infotainment System Module |
| F23 | Body Control Module (BCM) 2 |
| F24 | USB Charging Ports / Wireless Phone Charger Module |
| F25 | Ultrasonic Park Assist Module |
| F26 | Central Ignition Module (CIM) |
| F27 | Not Used |
| F28 | HVAC Control Interface / Display |
| F29 | Radio Control Head |
| F30 | Steering Wheel Audio Controls |
| F31 | Front HVAC Blower Motor Module |
| F32 | 110V AC Power Inverter Module |
| F33 | Driver Power Seat Switch |
| F34 | Passenger Power Seat Switch |
| F35 | Instrument Panel Electrical Center (IEC) Battery Feed 1 |
| F36 | Electric Power Steering (EPS) Control Module |
| F37 |
|
| F38 | Body Control Module (BCM) 8 |
| F39 | Not Used |
| F40 | Not Used |
| F41 | Not Used |
| F42 |
|
