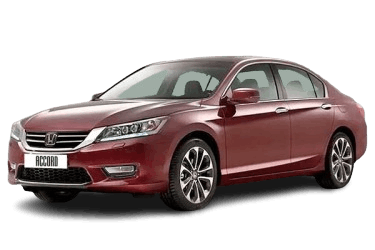

This article details the fuse box diagrams and relay layouts for the ninth-generation Honda Accord (Midsize platform; chassis code CR), covering model years 2013, 2014, 2015, 2016, and 2017.
Fuses No. 40 and No. 14 in the interior fuse box protect the accessory power socket (cigarette lighter) circuits.
Engine Compartment Fuse Box
The engine compartment fuse box is located near the brake fluid reservoir. Remove the protective cover to gain access.
Representative example shown.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| R1 | Main Relay #1 | |
| R2 | Ignition Coil Relay | |
| R3 | Radiator Fan Motor Relay | |
| R4 | Rear Heater Relay | |
| R5 | ETCS Control Relay | |
| R6 | A/C Compressor Clutch Relay | |
| R7 | Low-Beam Headlight Relay | |
| R8 | PGM-FI Sub-Relay | |
| R9 | Horn Relay | |
| 1 | Main Fuse (Battery) | 125 |
| 2-1 | Electric Power Steering (EPS) | - |
| 2-2 | Option Fuse Box (Type 1) | 60 |
| 2-3 | Option Fuse Box (Type 1) | 40 |
| 2-4 | Option Fuse Box (Type 2) | - |
| 2-5 | ABS / VSA FSR Motor | 20 |
| 2-6 | ABS / VSA Control Unit | 40 |
| 3 | Not Used | - |
| 4 | Front Fog Lights (models with Smart Entry / Push Button Start system) | 10 |
| 5 | Horn | 10 |
| 6 | Brake / Stop Lights | 10 |
| 7 | FI Sub | 15 |
| 8 | Daytime Running Lights (DRL) | 7.5 |
| 9 | Ignition Coil (IG) | 15 |
| 10 | Fuel Injectors (4-Cyl.) / Not Used (6-Cyl.) | 20 |
| 11 | Hazard Warning Lights / Alarm | 15 |
| 12-1 | Option Fuse Box (Type 2) | 60 |
| 12-2 | Option Fuse Box (Type 2) | 40 |
| 12-3 | IG Main 1 | 30 / 50 |
| 12-4 | IG Main 2 (Models with Smart Entry) | 30 |
| 12-5 | Sub-Fan Motor | 20 / 30 |
| 12-6 | Low-Beam Headlight Main | 30 |
| 12-7 | Interior Fuse Box | 30 |
| 12-8 | Windshield Wiper Motor | 30 |
| 12-9 | Main Radiator Fan Motor | 30 |
| 12-10 | Starter Motor (Models with Smart Entry) | 30 |
| 13 | Rear Heater | 40 |
| 14 | Blower Motor / Heater | 40 |
| 15 | PGM-FI (Fuel Injection System) | 15 |
| 16 | Heated Side Mirrors / Headlight Washers | 10 |
| 17 | A/C Compressor Clutch (MG) | 7.5 |
| 18 | Drive-by-Wire (DBW) | 15 |
| 19 | Side Marker / Parking Lights | 20 |
| 20 | Interior Lights | 7.5 |
| 21 | Back-Up / Reverse Lights | 10 |
| 22 | Audio System | 10 |
| 23 | Fan Timer Control Module | 7.5 |
| 24 | Right Low-Beam Headlight | 10 |
| 25 | Left Low-Beam Headlight | 10 |
| 26 |
|
7.5 / - |
Passenger Compartment Fuse Box
The interior fuse box is located under the driver’s side dashboard.
Representative example shown.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| a | Audio System (if equipped) | 7.5 |
| b | Active Control Engine Mount (ACM) (if equipped) | 20 |
| c | Rear Seat Heaters (if equipped) | 15 |
| d | Premium Audio Amplifier (if equipped) | 20 |
| e | Not Used | - |
| f | Not Used | - |
| g | Front Passenger's Power Seat Recline (if equipped) | 20 |
| h | Front Passenger's Power Seat Fore-Aft (if equipped) | 20 |
| 1 | Climate Control / Air Conditioning | 7.5 |
| 2 | Daytime Running Lights (DRL) | 7.5 |
| 3 | Not Used | - |
| 4 | Not Used | - |
| 5 | Instrument Panel / Gauge Cluster | 7.5 |
| 6 | Supplemental Restraint System (SRS / Airbags) | 7.5 |
| 7 | Auxiliary Power | 7.5 |
| 8 | Misfire Solenoid (MISS SOL) | 10 |
| 9 | Fuel Pump | 20 |
| 10 | ABS / VSA Module | 7.5 |
| 11 | Not Used | - |
| 12 | Front Windshield Wipers | 7.5 |
| 13 | Alternator (ACG) | 15 |
| 14 | Rear Accessory Power Socket (Console) | 20 |
| 15 | Driver's Power Seat Recline (if equipped) | 20 |
| 16 | Moonroof (if equipped) | 20 |
| 17 | Front Heated Seats (if equipped) | 20 |
| 18 | Not Used | - |
| 19 | Front Passenger Door Lock Unlock | 10 |
| 20 | Rear Driver-Side Door Lock Unlock | 10 |
| 21 | Driver Door Lock | 10 |
| 22 | Front Passenger Door Lock | 10 |
| 23 | Driver Door Lock Unlock | 10 |
| 24 | Supplemental Restraint System (SRS / Airbags) | 10 |
| 25 | Illumination / Interior Lights | 10 |
| 26 | Key Lock Solenoid | 7.5 |
| 27 | Parking / Side Marker Lights | 10 |
| 28 | Driver's Power Lumbar Support (if equipped) | 10 |
| 29 | Right High-Beam Headlight | 10 |
| 30 | Windshield Washer Motor | 15 |
| 31 | Smart Entry / Keyless Access System | 10 |
| 32 | Driver's Power Window | 20 |
| 33 | Front Passenger's Power Window | 20 |
| 34 | Rear Driver-Side Power Window | 20 |
| 35 | Rear Passenger-Side Power Window | 20 |
| 36 | Driver's Power Seat Fore-Aft (if equipped) | 20 |
| 37 | Option Circuits / Accessories | 7.5 |
| 38 | Not Used | - |
| 39 | Left High-Beam Headlight | 10 |
| 40 | Front Accessory Power Socket | 20 |
| 41 | Rear Driver-Side Door Lock | 10 |
| 42 | Master Door Lock System | 20 |
