Fuses and relays Honda Airwave (GJ), 2005 - 2010

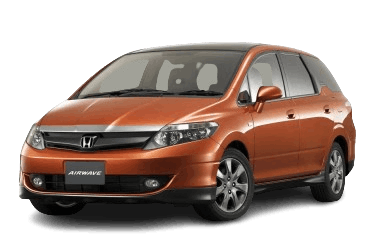

The Honda Airwave can be classified as a compact station wagon based on the Honda Fit.

In this article, we will take a detailed look at the fuse diagrams for the Honda Airwave 1st generation (GJ) 2005, 2006, 2007, 2008, 2009, 2010 release. Here you will find the location and photos of distribution boxes.

In the passenger compartment

The fuse box is located behind the additional glove compartment.

General view.

Diagram
No.	Description	A
1	Reversing light relay, reversing lights, navigation system control unit (models with navigation system)	10
2	No	-
3	Power steering control unit, selector lever lock solenoid valve, instrument cluster, central locking remote control unit, generator, oxygen sensor, EVAP solenoid valve, supply voltage monitoring system unit, headlight beam control system control unit, corrector switch headlights (models with manual headlight range control), headlight range control electric drives	7.5
4	Direction indicator and hazard warning light control circuit (instrument cluster)	10
5	No	-
6	Windshield wiper motor, windshield washer electric pump, rear window washer electric pump	20
7	Front passenger position detection unit (models with side airbags)	7.5
8	No	-
9	Heated rear window, heated side mirror relay (models with heated side mirrors), heated rear window relay	20
10	A / C electronic control unit, A / C switch (manual air conditioner), Heater blower motor relay, Power mirrors, Cooling fan motor relay, Condenser blower motor relay	7.5
	Connector "A" for connecting additional equipment	15
11	ECM, fuel pump fuse honda airwave, immobilizer control unit, SRS electronic control unit (VA), Honda Smart Key system control unit (models with Honda Smart Key system)	10
12	Power window main switch illumination, power window control unit (integrated in the main power window control switch), electric panoramic sunroof blind (models with panoramic roof), rear window wiper motor Power window relay	10
13	Electronic control unit SRS (VB)	10
14	Main injection system relay No. 1, main injection system relay No. 2, electronic engine control unit, crankshaft position sensor, idle speed control valve, camshaft position sensor, injectors	15
15	Power window regulator, rear left door	20
16	Power window regulator, rear right door	20
17	Front passenger door power window	20
18	Ignition Button (+ B) (Models with Honda Smart Key System)	10
19	Electric sunroof for panoramic roof (models with panoramic roof)	20
20	Connector "D" for connecting additional equipment	-
21	Heated mirrors (models with heated mirrors)	7.5
22	No
23		-
24	Ignition coils	15
25	Pressure modulator and ABS control unit	7.5
26	Electromatite valve for key lock in the ignition lock, control circuit for the key lock in the ignition lock (built into the instrument cluster), navigation system control unit (models with a navigation system), TV tuner (models with a navigation system), radio (models without a navigation system) , Honda Smart Key control unit (Honda Smart Key models) Connector "C" for connecting additional equipment	7.5
27	Connector for additional equipment	15
28	Electric actuators of door locks, electric actuator of the rear door lock	20
29	Driver's door power window	20
Relay
10	Headlight relay No. 1
14	Relay fan motor heater
13	Left turn signal relay
7	Headlight relay No. 2
17	Heated rear window relay
15	The main relay of the injection system No. 1
18	The main relay of the injection system No. 2
8	Power window relay
5	Relay for unlocking doors
4
12	Right direction indicator relay
16	Relay for electric mirrors
19	Reversing light relay
3	Starter
6	Tail lights
Rest: wire harnesses.

In the engine compartment

The location of the fuse box in the engine compartment of the car.

The photo shows an example.

Diagram
No.	Decoding	A
1	Accumulator battery	80
2	Power steering electronic control unit	60
3	Egnition lock	50
4	Pressure modulator and ABS control unit	30
5	Heater blower motor	40
6	Fuses No. 14, No. 15, No. 16, No. 17, No. 28, No. 29 (block in the cabin)	40
7	Headlight relay No. 1, right headlight	20
8	Fuses No. 19, No. 21 (block in the cabin)	30
9	Tail lights relay, switch illumination, fog lamp relay, instrument cluster illumination, air conditioning and heater control panel illumination, radio illumination (models without navigation system), navigation system control unit (models with navigation system), illumination of the navigation system control switch and system control switch "hands-free" (models with a navigation system), marker lamps, license plate lamp, connector "B" for connecting additional equipment (fuse box)	10
10	Cooling fan motor	30
11	Condenser fan motor Electromagnetic compressor clutch, capacitor (noise suppression filter)	30
12	Diagnostic socket, navigation system control unit (models with navigation system), radio (models without navigation system), TV tuner (models with navigation system), instrument cluster, remote control unit for central locking, front interior lighting lamp (models without panoramic roof lights), rear side lights (models with panoramic roof), local lights, rear interior light, immobilizer control unit, Honda Smart Key control unit (models with Honda Smart Key system), touch sensor (outside driver's door handle ) (Models with Honda Smart Key System), Touch Sensor (Outside Front Passenger Door Handle) (Models with Honda Smart Key System), Touch Sensor (Outside Tailgate Handle) (Models with Honda Smart Key System)	15
13	Headlight relay # 2, left headlight, on indicator	20
14	Direction indicator and hazard warning light control circuit (instrument cluster)	10
15	Pressure modulator and ABS control unit	20
16	Pressure modulator and ABS control unit, brake lights, additional brake light Sound signal Horn relay	10
Relay
1	Compressor electromagnetic clutch relay
2	Condenser fan motor relay
3	Horn relay
4	Cooling fan motor relay
Rest: wire harnesses.
