The CR-V is a popular compact crossover from the Japanese automaker Honda, produced since 1995. In this article, we will detail the fuse box diagrams for the 5th generation Honda CR-V (body codes RW / RT; Compact Global platform) for the 2016, 2017, 2018, 2019, 2020, 2021 and 2022 model years.
Here you will find the locations and photos of the fuse boxes. We will specifically highlight the fuses responsible for the accessory power socket (cigarette lighter) and the fuel pump.
Passenger Compartment

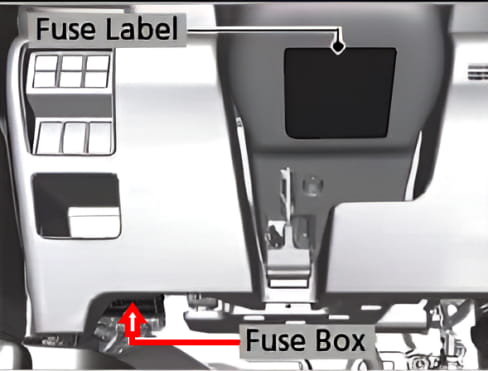

The interior fuse box is located on the driver's side, under the dashboard.

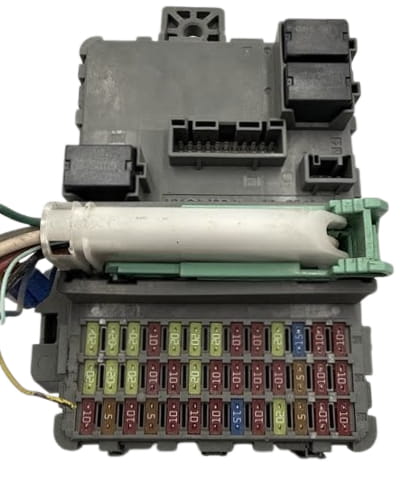

General view.

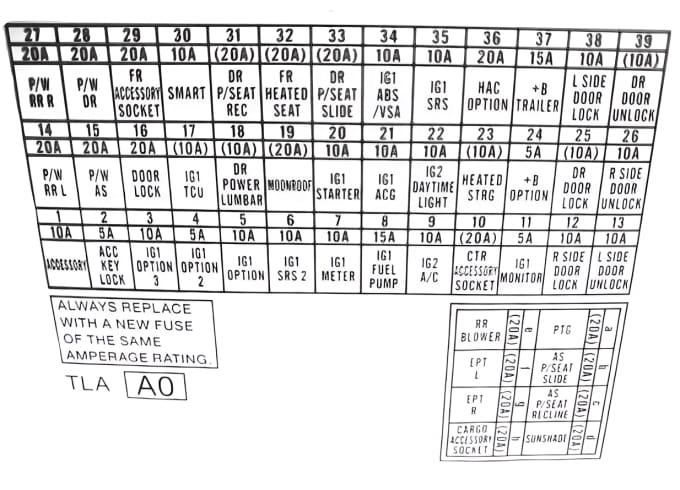

| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| 1 | Accessory (ACC) | 10 |
| 2 | Key Lock | 5 |
| 3 | Spare / Option 1 | 10 |
| 4 | Option 2 (with Smart Entry System) Transmission Control Module (TCM) / AT (without Smart Entry System) |
5 10 |
| 5 | Option (Accessory) | 10 |
| 6 | SRS Indicator (Airbags) | 10 |
| 7 | Instrument Panel (Meter) | 10 |
| 8 | Fuel Pump | 15 |
| 9 | A/C Control Unit | 10 |
| 10 | 12V Accessory Power Socket / Cigarette Lighter (Center Console) | 20 |
| 11 | Engine Control Module (ECM) | 5 |
| 12 | Front Passenger's Door Lock Actuator | 10 |
| 13 | Driver's Door Lock Actuator | 10 |
| 14 | Rear Left Power Window | 20 |
| 15 | Front Passenger's Power Window | 10 |
| 16 | Central Locking (Door Lock Main) | 20 |
| 17 | Transmission Control Module (TCM) (with Smart Entry System) Option 2 (without Smart Entry System) |
10 5 |
| 18 | Driver's Power Seat Lumbar Support (Option) | 10 |
| 19 | Power Moonroof (Option) | 20 |
| 20 | Starter Circuit | 10 |
| 21 | Audio System / Acoustic Control Unit (AGC) | 10 |
| 22 | Daytime Running Lights (DRL) | 10 |
| 23 | Heated Steering Wheel (Option) | 10 |
| 24 | Option | 5 |
| 25 | Driver's Door Lock Actuator | 10 |
| 26 | Front Passenger's Door Unlock | 10 |
| 27 | Rear Right Power Window | 20 |
| 28 | Driver's Power Window | 20 |
| 29 | Front 12V Accessory Power Socket (Cigarette Lighter) | 20 |
| 30 | Smart Entry System Module (with Smart Entry System) Starter Switch (STS) (without Smart Entry System) |
10 5 |
| 31 | Driver's Power Seat Reclining | 20 |
| 32 | Heated Front Seats | 20 |
| 33 | Driver's Power Seat Sliding | 20 |
| 34 | ABS / VSA Control Module (Vehicle Stability Assist) | 10 |
| 35 | SRS Unit (Airbags) | 10 |
| 36 | HVAC Control Unit (Climate Control) | 20 |
| 37 | Trailer Connection Module (Option) | 15 |
| 38 | Driver's Door Lock | 10 |
| 39 | Driver's Door Unlock | 10 |
| a | Power Tailgate Closer | 20 |
| b | Passenger's Power Seat Sliding | 20 |
| c | Passenger's Power Seat Reclining | 20 |
| d | Panoramic Roof Sunshade Motor | 20 |
| e | Rear Climate Control Blower Motor | 20 |
| f | Left Power Tailgate Actuator (EPT L) | 20 |
| g | Right Power Tailgate Actuator (EPT R) | 20 |
| h | 12V Accessory Power Socket (Cargo Area) | 20 |
|
||

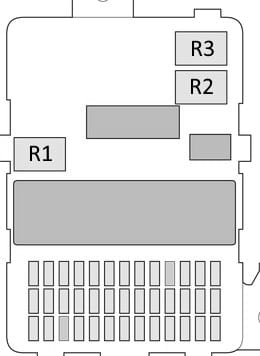

| R1 | Power Window Relay | — |
| R2 | Center Console 12V Power Socket Relay | — |
| R3 | Front Panel 12V Power Socket Relay | — |
Engine Compartment
The under-hood fuse box is located near the battery.

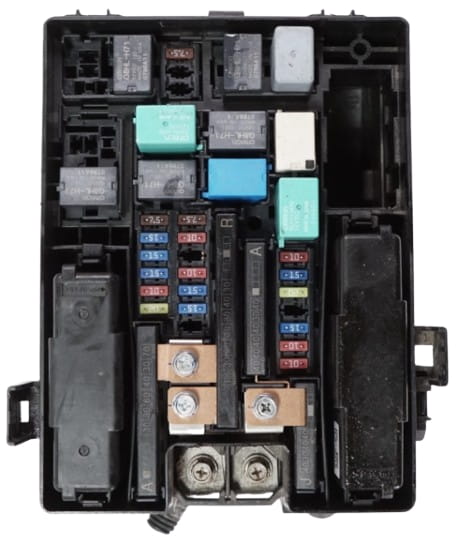

General view.

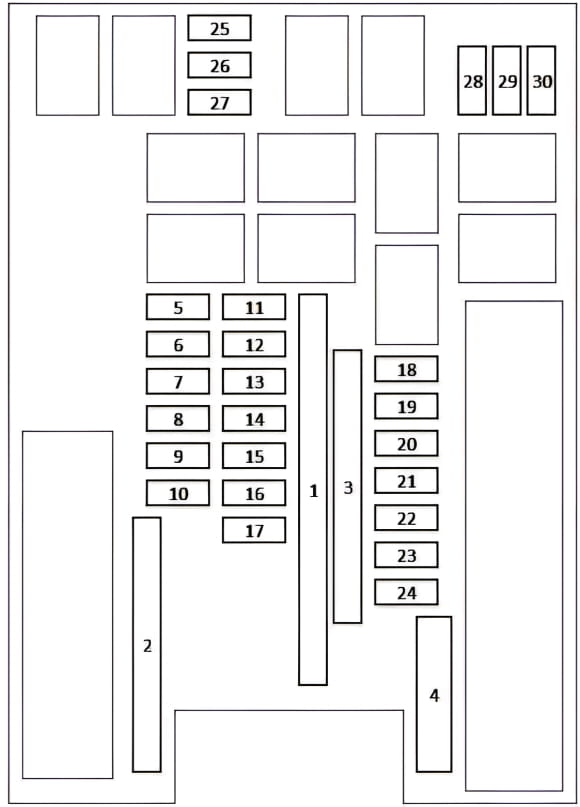

| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| Multi-block Fuses (Block Fuses) | ||
| 1.1 | Audio Amplifier (Audio AMP) / Option 2 | 30 / 40 |
| 1.2 | Electric Parking Brake (EPB) | 40 |
| 1.3 | Electric Brake Booster / ABS/VSA Failsafe Relay (FSR) | 40 |
| 1.4 | Main Cooling Fan Motor | 30 |
| 1.5 | Relay Module 1 | 30 |
| 1.6 | Ignition Main 2 (IG Main 2 — with Smart Entry System) | 30 |
| 1.7 | Relay Module 2 | 30 |
| 1.8 | Main Battery Fuse (Battery) | 125 / 150 |
| 2.1 | Electric Power Steering (EPS) | 70 |
| 2.2 | Ignition Main 1 (30A — with Smart Entry System / 50A — without Smart Entry System) | 30 / 50 |
| 2.3 | Fuse Box (Option) / ABS/VSA Pump Motor | 40 |
| 2.4 | Interior Fuse Box 1 | 60 |
| 2.5 | Front Wiper Motor | 30 |
| 2.6 | A/C Condenser Fan Motor (Sub) | 30 |
| 3.1 | Rear Window Defogger | 40 |
| 3.2 | Starter | 30 |
| 3.3 | Interior Fuse Box 2 | 40 |
| 3.4 | ABS/VSA Motor | 40 |
| 3.5 | ABS/VSA Failsafe Relay (FSR) | 40 |
| 3.6 | Heater Blower Motor | 40 |
| 4.1 | Sub Fuse Box 1 (Option) | 40 |
| 4.2 | Sub Fuse Box 2 (Option) | 40 |
| 4.3 | Power Tailgate | 40 |
| Standard Fuses | ||
| 5 | CVT Valve Body Actuator (VB ACT — with Smart Entry System) | 7.5 |
| 6 | Washer Motor | 15 |
| 7 | Fuel Injection Main Relay (FI Main) | 15 |
| 8 | Fuel Injection Sub (FI Sub) / Drive-by-Wire (DBW) | 15 |
| 9 | Stop Lights | 10 |
| 10 | Fuel Injectors | 20 |
| 11 | LAF Sensor (Air/Fuel Ratio Sensor) | 7.5 |
| 12 | Engine Control Module (FI ECU — with Smart Entry System) | 10 |
| 13 | Wiper De-icer (Canada models) | 15 |
| 14 | Hazard Warning Lights | 10 |
| 15 | Ignition Coils (IG Coil) | 15 |
| 16 | Transmission Control Module (TCM) (with Smart Entry System) | 15 |
| 18 | Backup / Memory | 10 |
| 19 | Audio System | 15 |
| 20 | AWD Clutch (E-DPS — Option) | 20 |
| 21 | Heated Rear Seats | 20 |
| 22 | Front Fog Lights / Active Grille Shutter | 15 |
| 23 | A/C Compressor Clutch / Upper Active Grille Shutter | 10 |
| 24 | Horn | 10 |
| 25 | Radiator Cooling Fan | 7.5 |
| 28 | Starter Magnetic Switch (ST — without Smart Entry System) | 7.5 |

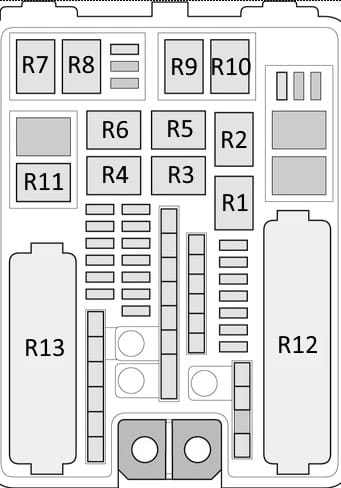

| Relay Modules | ||
|
||
| R1 | Front Heater Blower Relay | — |
| R2 | A/C Compressor Clutch Relay | — |
| R3 | PGM-FI Main Relay 2 | — |
| R4 | Horn Relay | — |
| R5 | Radiator Cooling Fan Relay | — |
| R6 | Rear Window Defogger Relay | — |
| R7 | Wiper De-icer Relay | — |
| R8 | Fuel Injector Relay | — |
| R9 | A/C Condenser Fan Relay | — |
| R10 | Cooling Fan Control Relay | — |
| R11 | Front Fog Light Relay | — |
| R12 | Relay Board | — |
| R13 | Relay Control Module | — |
