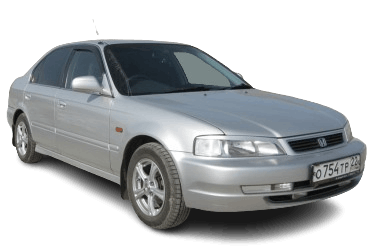

Fuses and relays Honda Domani / Partner, 1996 - 2006

Most of the power supply circuits of the electrical equipment of the Japanese sedan and station wagon are protected by fuses. Headlights, fan motors, fuel pump and other powerful current consumers are connected via relays. Protective elements are installed in distribution boxes located in the engine compartment and passenger compartment.

In this article, we will take a detailed look at the fuse box diagrams for the 1 generation Honda Partner from 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 release; Honda Ortia 1996-2002; 2 generation Domani 1997 - 2001 of release with engines D13B, D15B, D16A, B18B, B20B.

In the passenger compartment

Located behind the glove compartment.

The photo shows an example.

Diagram
No.	Decoding	A
location of fuses Partner and Domani
1	No	-
2		-
3	Rear window wiper motor, rear window washer pump	10
4	Right headlight (high beam)	10
5	LH headlight (high beam), high beam indicator	10
6	No	-
7	Power window regulator, rear left door (Domani)	20
8	Power window regulator, rear right door (Domani)	20
9	Ignition coil	15
10	Front passenger door power window	20
11	Driver's door power window	20
12	Turn signal interrupter relay	7.5
13	Main relay of the injection system Restraint system control unit (VA)	15
14	Central locking remote control unit (Domani)	7.5
15	Alternator, vehicle speed sensor, automatic transmission control unit, supply voltage monitoring system unit, high exhaust gas temperature indicator	7.5
16	ABS ECU (Domani), rear window defogger relay	7.5
17	heater fan motor relay, cooling system radiator motor control relay, air conditioner control unit, electric control unit for side mirrors (Domani)	7.5
18	No	-
19	Reversing lights, blocking control unit	7.5
20	No	-
21	Right headlight (low beam)	10
22	Left headlight (low beam)	10
23	Restraint system control unit (VB)	10
24	Relay for opening the sunroof (Domani), relay for closing the sunroof (Domani) Power window relay (Partner)	7.5
25	Instrument cluster, e / m switch blocking valve, overspeed warning system control unit (domani), selector position indicator (partner)	7.5
26	Windshield wiper motor, windshield washer pump, control unit	20
27	Cigarette lighter fuse Domani & Partner	10
28	Radio, navigation system unit (Domani), GPS-receiver (Domani)	10
29	No	-
30	Instrument panel illumination, control unit	7.5
31	Engine control unit, main injection relay	7.5
32	Marker lamps, license plate lamps	7.5
33	Blocking control unit, e / m ignition key blocking valve	7.5
location of fuses Orthia
1	No	-
2		-
3	Rear window wiper motor, rear window washer pump	10
4	Right headlight (high beam)	10
5	LH headlight (high beam), high beam indicator	10
6	No	-
7	Power window regulator, rear left door	20
8	Power window regulator, rear right door	20
9	No	-
10	Front passenger door power window	20
11	Driver's door power window	20
12	Turn signal interrupter relay	7.5
13	Main relay of the injection system Restraint system control unit (VA)	15
14	Central locking remote control unit	7.5
15	Alternator, vehicle speed sensor, oxygen sensor, supply voltage monitoring system unit, high exhaust gas temperature indicator	7.5
16	ABS electronic control unit, rear window defogger relay	7.5
17	Heater blower motor relay, cooling radiator blower motor relay, air conditioning control unit, side mirror control unit	7.5
18	No	-
19	Reversing lights, blocking control unit	7.5
20	No	-
21	Right headlight (low beam)	10
22	Left headlight (low beam)	10
23	Restraint system control unit (VB)	10
24	Relay for opening the sunroof, relay for closing the sunroof	7.5
25	Instrument cluster, e / m switch blocking valve, overspeed warning system control unit	7.5
26	Windshield wiper motor, windshield washer pump	20
27	Cigarette lighter fuse	10
28	Radio, navigation system unit	10
29		-
30	Instrument panel illumination, control unit	7.5
31	Powertrain control unit, main injection relay	7.5
32	Marker lamps, license plate lamps	7.5
33	Blocking control unit, e / m ignition key blocking valve	7.5
Relay (all models)
A	sunroof wiring harness
B	SRS main wiring harness
C	instrument panel wiring harness
D	ignition switch harness
E	main wiring harness
F	power window relay
G	turn signal breaker relay
H	rear window heater relay

In the engine compartment

Located next to the battery.

Primary fuse box

General view.

Diagram
No.	Description	A
location of fuses (Domani, Partner).
41	Accumulator battery	80
42	Egnition lock	40
43	Interior lighting system, diagnostic socket	7.5
44	Main relay of the injection system	15
45	Unused	-
46	Power windows	40
47	Radio, navigation system control unit (Domani), automatic transmission control unit, engine control unit	7.5
48	Lighting control switch	30
49	No	-
50	Heated rear window (Domani)	30
	Heated rear window (Partner)	20
51	Central locking control unit, electric sunroof (Domani)	20
52	Horn, brake lights	15
53	Turn signal interrupter relay	10
54	Power seat (Domani)	40
55	Heater fan motor	40
56	Condenser fan motor Compressor electromagnetic clutch relay	20
57	Cooling fan motor	20
location of fuses (Orthia)
41	Accumulator battery	80
42	Egnition lock	40
43	Interior lighting system, diagnostic socket	7.5
44	Main relay of the injection system	15
45	Fog lights	20
46	Power windows	40
47	Radio, navigation system control unit, unit, central locking remote control systems, powertrain control unit	7.5
48	Lighting control switch	30
49	No	-
50	Heated rear window	20
51	Central locking control unit, electric sunroof	20
52	Horn, brake lights	15
53	Turn signal interrupter relay	10
54	No	-
55	Heater fan motor	40
56	Condenser fan motor Compressor electromagnetic clutch relay	20
57	Cooling fan motor	20
Relay (all models)
A	from the output "B" of the generator
B	from the positive terminal of the battery (starter cable)
C	condenser fan motor relay
D	compressor electromagnetic clutch relay
E	diode
F	cooling fan motor relay
G	heater fan motor relay

Auxilary fuse panel

Diagram.
