Fuses and relays Honda Edix / FR-V (BE), 2004 - 2009

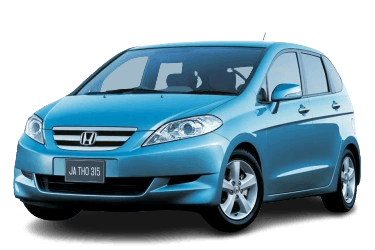

The model is a tall passenger 4-door station wagon, in which three people can sit in the first and second rows of seats. In total, the salon is designed for 6 seats. You can, however, put it differently: this is a 5-door hatchback that seats 6 people. Outside of Japan, the minivan is known as the Honda FR-V. In this material, we will analyze in detail the fuse circuits of the 1nd generation Honda Edix / FRV (BE4, BE8, BE2, BE1, BE3) 2004, 2005, 2006, 2007, 2008, 2009 release.


Here you will find the locations and photos of the blocks. Separately, we note the fuse responsible for the cigarette lighter and fuel pump relay.

In the passenger compartment


Located on the driver's side, at the bottom of the dashboard. To access, you need to get out the glove compartment and remove part of the lining.


Photo is an example.

Diagram
No. Decoding A
* 2 Ignition coil # 1, ignition coil # 2, ignition coil # 3, ignition coil # 4 15
2 SRS electronic control unit (VB) 10
3 Pressure modulator and ABS / ABS electronic control unit (IG1) 7.5
4 Power window relay 7.5
5 Windshield wiper motor, auto-wiper relay, windshield washer pump, rain sensor (auto wiper models), high / low wiper speed relay (auto wiper models) 30
6
  • Right reversing light, left reversing light
  • Navigation electronic unit
  • Selector lever position sensor (position "R")
7.5
7 Honda Smart Key ECM * 2 , Immobilizer Receiver * 1 (Models without Honda Smart Key), Powertrain Control Module (IG1), Non-Pump 15
8 Alternator, vehicle speed sensor * 2 , EVAP valve, intake manifold geometry changeover solenoid valve, mixture ratio sensor (4WD models) * 2 , supply voltage monitoring unit 7.5
9
  • Control unit (IG1)
  • Central locking remote control unit, control unit, instrument cluster, selector lock solenoid valve
7.5
10 No -
11 -
12
  • Powertrain Control Unit (MAIN RLY -)
  • Honda Smart Key ECM * 2 , Immobilizer Receiver * 1 (Models without Honda Smart Key), Powertrain Control Module (IGP), Camshaft Position Sensor, Crankshaft Position Sensor, Idle Speed ​​Control Valve, Injector No. 1, nozzle No. 2, nozzle No. 3, nozzle No. 4
  • Powertrain control unit (LAF R)
15
13   -
14
  • Rain sensor (models with automatic wiper system), power window switch
  • Rear window wiper motor, rear window washer pump
15
15 SRS electronic control unit, front passenger position sensing system unit 7.5
16 Power mirrors, power folding mirrors, mirror heater relay 7.5
17 No 7.5
18
  • Connector for additional equipment
  • A / C electronic control unit, air intake switch actuator, mirror defogger relay, heated rear window relay, heater fan motor relay, cooling system relay * 1 , cooling fan motor relay, condenser fan relay, air conditioning compressor clutch relay
7.5
19 Front passenger door power window 20
20 Power window regulator, rear left door 20
21 Power window regulator, rear right door 20
22 Control unit (+ B DRLOCK) 20
23 Driver's door power window 20
24 Navigation electronics, navigation amplifier, navigation display, audio system (models without navigation) 15
25 Ratio sensor * 1 , Ratio sensor (2W D) * 2 20
26 Lighting control switch, right tail lamp, left tail lamp, right license plate lamp, left license plate lamp, illumination of the audio control switch on the steering wheel, illumination of the hazard switch, illumination of the air conditioning and heater control panel, illumination of the navigation system control switch, illumination navigation system display, radio illumination (models without navigation system), instrument cluster illumination, glove compartment illumination, selector position indicator illumination, right front clearance, left front clearance, main window control switch illumination, mirror adjustment switch illumination, ashtray illumination 10
27 Cigarette lighter fuse Edix / FR-V 15
28
  • Connector for additional equipment
  • Ignition key lock solenoid valve
  • Audio unit (models without navigation system), electronic unit of the navigation system, display of the navigation system, instrument cluster, amplifier of the navigation system, electronic control unit of the Honda Smart Key system (models with the Honda Smart Key system)
7.5
Note: * 1 - models with the K20A engine; * 2 - models with D17A engine.
Relay
12 Mixture sensor relay
29 Power window relay
14 The main relay of the injection system No. 1
13 The main relay of the injection system No. 2
15 Reversing light relay
30 Starter relay
X Control block
Rest : wire harnesses.

In the engine compartment


The fuse block is located on the right side behind the plastic cover.


General form.

Diagram
No. Description A
1 Accumulator battery 100
2 Egnition lock 50
Power window relay, fuses No. 11, No. 12, No. 13, No. 22, No. 23, No. 24, No. 25, No. 26 (fuse box) 50
3 Pressure modulator and ABS electronic control unit 40
4 No -
5 -
6 -
7 -
8 Heated rear window 30
9 Cooling fan motor 20
10 Condenser fan motor 20
11 Heater blower motor 40
12 No -
13 -
14
  • Right brake light, left brake light, auxiliary brake light, powertrain control unit, pressure modulator and ABS electronic control unit
  • Sound signal
  • Horn switch
10
15 Pressure modulator and ABS electronic control unit 20
16 Control unit (turn signal and hazard warning light control circuit), control unit (hazard warning light switch circuit) 10
17 No -
18 Pressure modulator and ABS electronic control unit ( Wire color: W * 4 / Bl * 5 ) 7.5
19 No -
20 -
21 Left discharge headlight * 1 , headlight mode changeover electromagnet (left headlight) * 1 , left headlight * 2 , high beam indicator 15
22 Right discharge headlight * 1 , headlight mode changeover electromagnet (right headlight) * 1 , right headlight * 2 15
23 Instrument panel, central locking remote control unit, immobilizer receiver, ignition switch illumination, control unit, diagnostic socket, navigation system display (models with navigation system), touch sensor (external handle to open the driver's door) * 3 , touch sensor (external handle front passenger door opener) * 3 , touch sensor (outer door opener handle) * 3 , ignition switch (Honda Smart Key system) * 3 , Honda Smart Key electronic control unit 10
24 Spot light, front interior light, rear interior light 15
25 * 5
  • Ignition coil # 1, ignition coil # 2, ignition coil # 3, ignition coil # 4
  • Powertrain control unit
15
26 No -
27 -
28 -
29 A / C Compressor Electromagnetic Clutch 7.5
30   -
31
  • Windshield wiper motor, automatic wiper relay
  • Rain sensor
7.5 * 6
Note: * 1 - models with discharge headlights. * 2 - models with halogen headlights, * 3 - models with the Honda Smart Key system, * 4 - models with a K20A engine, * 5 - models with a D17A engine, * 6 - models with an automatic wiper system .
Relay
4 Ignition coil relay
8 A (Supply voltage monitoring unit): Engine compartment wiring harness
12 A / C compressor electromagnetic clutch relay
11 Tachometer connector
17 Relay for automatic wiper system
13 Cooling system relay * 1
9 Condenser fan motor relay
3 Heater blower motor relay
7 Q: Engine compartment wiring harness
10 Horn relay
14 Heater relay * 1
13 Heater relay * 2
5 Headlight relay No. 1
6 Headlight relay No. 2
2 Cooling fan motor relay
1 Heated rear window relay
15 T-1
16 T-101
Note: * 1 - models with K20A engine, * 2 - models with D17A engine.
