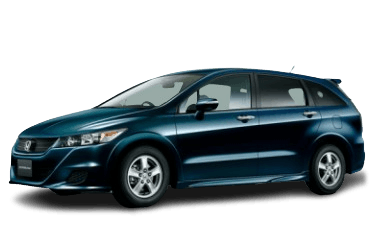

This material discusses in detail the fuse diagrams of the Honda Stream car (second generation / factory index RN6, RN7, RN8, RN9): 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014 of release.
Fuses numbered 28 and 29 in the cabin block are responsible for protecting the electrical circuit of the cigarette lighters.
In the engine compartment
The underhood fuse box is located near the battery. To access it, you must remove the protective cover.
| Diagram | ||
|---|---|---|
|
||
| No. | Relays | |
| 24 | rear window heating | |
| 25 | heater motor | |
| 26 | air conditioner condenser fan | |
| 27 | engine cooling fan control | |
| 28 | rear wiper | |
| 29 | block injection PGM-FI | |
| 30 | ignition coils | |
| 31 | cooling fan motor | |
| 32 | air conditioner condenser fan motor | |
| 33 | pele air conditioner clutch | |
| 34 | engine cooling fan | |
| 35 | throttle actuator | |
| 36 | PGM-FI MAIN - The main relay of the injection system | |
| No. | Fuses | Amps |
| 1 | Battery, alternator, starter, fuse and relay box | 100 |
| Power steering control unit (ESP) | 70 | |
| 2 | Egnition lock | 50 |
| Fuses No. 5, 6, 7, 27, 28, 29, 31 in the passenger compartment | 60 | |
| 3 | Control unit and ABS or VSA pressure modulator | 30 / 40 |
| 4 | Fuses No. 18, 19, 20, 21 in the cabin block | 50 |
| Fuses No. 24, 25, 26, 30, 32, 33 in the cabin block | 40 | |
| 5 | Not involved | - |
| 6 | 10A A/C fan relay, A/C fan | 10 |
| 7 | M/T: Cooling Fan Relay | 20 |
| A/T: Cooling fan relay | 30 | |
| 8 | rear window heating | 30 |
| 9 | heater relay | 40 |
| 10 | Hazard Warning System, Body Electronics Unit (MICU), Instrument Cluster (Speedometer), Instrument Cluster (Tachometer) | 10 |
| 11 | Air/Fuel Ratio Sensor #1 (A/F), Engine Control Module (ECM)/PCM) | 15 |
| 12 | Stop lights, engine and automatic transmission control module (ECM/PCM), horn, body electronics unit (MICU) | 15 |
| 13 | Not involved | - |
| 14 | Not involved | - |
| 15 | A/C fan relay, oil level sensor | 7.5 |
| 16 | Not involved | - |
| 17 | Audio amplifier | 15 |
| 18 | Ignition Coils, Engine Control Module (ECM/PCM) | 15 |
| 19 | Crankshaft Position Sensor (CKP), Camshaft Position Sensor B (CMP), Automatic Transmission Control Module (ECM/PCM), Throttle Body Relay (ETCS), Injectors, Engine Control Module Relay (PGM-FI#1/PGM- FI #2 (Honda Stream Fuel Pump Fuse)) | 15 |
| 20 | A/C compressor clutch relay | 7.5 |
| 21 | Throttle Body Relay (ETCS), Engine and Automatic Transmission Control Module (ECM/PCM) | 15 |
| 22 | Interior lighting, luggage compartment lighting, auxiliary electric coolant pump (hybrid) | 7.5 |
| 23 | Audio System, Diagnostic Connector (DLC), Instrument Cluster (Speedometer), Instrument Cluster (Tachometer), Alarm, Immobilizer Control Unit, Body Electronics Unit (MICU), Powertrain Control Module (MCM) (Hybrid), Battery Condition Monitoring Module (BCM) (Hybrid), Handsfree Control Unit (HandsFreeLink) | 10 |
In the passenger compartment
The fuse box is located at the bottom of the dashboard.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | Illuminated power mirror control panel, glass lift relay | 7.5 |
| 2 | Fuel Pump, CMP Sensor A, Engine Control Module (ECM/PCM), Immobilizer Control Module | 15 |
| 3 | Alternator, Engine Control Module (ECM/PCM), EVAP (Mass Air Flow (MAF) Sensor) | 10 |
| 4 | ABS or VSA control unit and pressure modulator, multi-axis acceleration sensor (VSA), electric power steering (ESP) control unit | 7.5 |
| 5 | Heating, seat heating relay | 15 |
| 6 | Front fog lamp | 20 |
| 7 | Tire pressure monitoring system (TPMS) | 7.5 |
| 8 | Rear wiper | 7.5 |
| 9 | Front passenger seat occupied detection system (ODS), front passenger airbag deactivation indicator, airbag control unit | 7.5 |
| 10 | Instrument Cluster (Tachometer), Power Window Control Unit (Coupe), Reversing Light Switch (M/T), Selector Lever Lock Solenoid (A/T), Body Electronics Unit (MICU), Tire Pressure Monitoring System (TPMS), Module battery condition monitor (BCM) (hybrid), interface box | 7.5 |
| 11 | Airbag control unit | 10 |
| 12 | Right headlight (high beam) | 10 |
| 13 | Left headlight (high beam) | 10 |
| 14 | Instrument panel lighting, interior lighting, front passenger airbag deactivation indicator | 7.5 |
| 15 | Marker lamps, license plate lighting | 7.5 |
| 16 | Right headlight (low beam) | 15 |
| 17 | Left headlight (low beam) | 15 |
| 18 | High beam, body electronics unit (MICU) | 20 |
| 19 | Marker lamps, body electronics unit (MICU) | 15 |
| 20 | Rear fog lamp | 7.5 |
| 21 | Low beam, body electronics unit (MICU) | 20 |
| 22 | Not involved | - |
| 23 | Starter Signal, Engine and Transmission Control Module (PCM) | 7.5 |
| 24 | Sunroof | 20 |
| 25 | Central locking, body electronics unit (MICU) | 20 |
| 26 | Driver's Power Window (Power Window Control Module) | 20 |
| 27 | Heating and air conditioning system | 20 |
| 28 | Cigarette lighter socket in center console | 15 |
| 29 | Honda Stream front cigarette lighter socket | 15 |
| 30 | Front passenger glass, sunroof control unit (coupe) | 20 |
| 31 | headlight washer | 20 |
| 32 | Rear right power window, sunroof control unit | 20 |
| 33 | Rear left power window | 20 |
| 34 | Not involved | - |
| 35 | Audio System, Front Outlet, Center Console Outlet, Audio Amplifier (Coupe), Hands FreeLink Control Unit, Ignition Switch, Body Electronics Unit (MICU), Interface Unit | 7.5 |
| 36 | Heater and A/C Control Panel, Power Mirrors, Air Recirculation System, A/C Compressor Clutch Relay, Heater Relay, Heated Mirror Relay, Heated Rear Window Relay, Cooling Fan Control Relay, Cooling Fan Relay (A/C Diode) | 10 |
| 37 | Daytime running lights, body electronics unit (MICU) | 7.5 |
| 38 | Wiper, body electronics unit (MICU) | thirty |
Some relay modules are located on top of the cabin fuse box.
Description:
- R1 - Power windows;
- R2 - Fuel pump relay (PGM-FI No. 2);
- R3 - Starter
