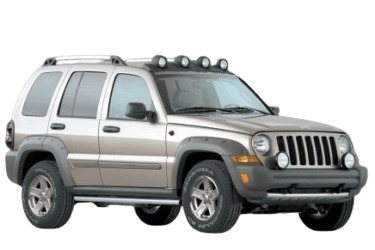

Fuses and relays Jeep Liberty (KJ; 2001–2007)

Table of Contents

In this article, we will take a detailed look at the fuse box diagrams and relay layouts for the first-generation Jeep Liberty (chassis code KJ) for model years 2002, 2003, 2004, 2005, 2006, and 2007.

Fuses #3 and #16 in the interior fuse panel control the cigarette lighter and power outlet circuits.

Engine Compartment Fuse Box


Located in the engine compartment near the battery, under a protective plastic cover.


Fuse box cover removal.


General view of the Power Distribution Center (PDC).

Diagram
No. Description Amps
R1
  • Diesel: Fuel Heater Relay
  • Gasoline: Jeep Liberty Fuel Pump Relay
R2 Starter Relay
R3 Wiper On/Off Relay
R4 Wiper High/Low Speed Relay
R5 Blower Motor Relay
R6
  • Diesel: Glow Plug Relay (#1)
  • Gasoline: High-Speed Radiator Fan Relay
R7 A/C Compressor Clutch Relay
R8 Diesel: Cabin Heater Relay
R9
  • M/T: Clutch Switch Override Relay
  • A/T: Transmission Control Relay
R10 Empty
R11 Auto Shut Down (ASD) Relay
R12
  • Diesel: Glow Plug Relay (#2)
  • Gasoline: Low-Speed Radiator Fan Relay
1 Blower Motor Relay 40 A
2 Radiator Fan (High/Low Speed) Relays 30 / 40 A
3 Daytime Running Lamp (DRL) Relay, Park Lamp Relay, High Beam Relay, Interior Fuses: #32, #33, #CB3 50 A
4 ABS Module 40 A
5 Gasoline + A/T: Powertrain Control Module (PCM), Transmission Solenoid/Pressure Switch Assembly, Variable Line Pressure (VLP) Sensor 20 A
Diesel + A/T: Transmission Control Module (TCM), Transmission Solenoid/TRS Assembly 30 A
6 Auto Shut Down (ASD) Relay (Ignition Coils [3.7L], Coil Rail [2.4L], Fuse #26) 30 A
Auto Shut Down (ASD) Relay (Fuses #16, #26) 30 A
7 Interior Fuse Box: #11, #12, #30, #34 50 A
8 Starter Relay, Interior Fuse Box: #24, #25, #37, #38, #39 40 A
9 Interior Fuse Box: #6, #16, #17, #18, #19 50 A
10 Trailer Tow Relay 30 A
11 Diesel: Fuel Heater 20 A
12 Light Bar Switch 30 A
13 Power Windows 40 A
14 Ignition Switch, Interior Fuse Box: #13, #14, #21, #24, #25, #31, #32, #36, #37, #38, #39, #CB1 40 A
15 Low Beam Relay, Interior Fuse Box: #2, #11, #31 50 A
16 Diesel: High/Low Speed Radiator Fan Relays, Cabin Heater Relay, Vacuum Reservoir Solenoid, Boost Pressure Solenoid, A/C Compressor Clutch Relay, Glow Plug Module, Engine Control Module (ECM), EGR Airflow Control Unit and Solenoid 15 A
17 Empty -
18 Empty -
19 Rear Window Defogger Relay 30 A
20 Empty -
21 Cabin Heater Relay (Diesel), A/C Compressor Clutch Relay 20 A
22 Empty -
23 Empty -
24 Gasoline: Fuel Pump Fuse, Powertrain Control Module (PCM) 20 A
25 ABS Module 20 A
26
  • Diesel: Engine Control Module (ECM)
  • Gasoline: Powertrain Control Module (PCM), Fuel Injectors
 25 A
27 Empty -
28 Starter Relay 15 A

Passenger Compartment Fuse Box


Located on the left edge of the instrument panel.


General view of the fuse box (front side).

Diagram
Front Side
No. Description Amps
R1 High Beam Headlamp Relay
R2 Daytime Running Lamp (DRL) Relay
1 Horn, Sunroof, Power Windows 15 A
2 Rear Fog Lamps 10 A
3 Jeep Liberty Cigarette Lighter Fuse 20 A
4 Right Low Beam Headlamp 10 A
5 Left Low Beam Headlamp, Light Bar Switch 10 A
6 Door Lock Control Module 20 A
7
  • Export: Left Tail/Stop Lamp, License Plate Lamp, Left Headlamp Leveling Motor
  • USA: Left Front Park/Turn Signal Lamp, Left Tail/Stop Lamp, License Plate Lamp, Left Side Marker Lamp
 10 A
8 Empty -
9
  • Export: Right Tail/Stop Lamp, Trailer Tow Connector, Right Headlamp Leveling Motor, Light Bar Switch, Headlamp Leveling Switch, Instrument Cluster
  • USA: Instrument Cluster, Right Side Marker Lamp, Right Front Park/Turn Signal Lamp, Right Tail/Stop Lamp, Trailer Tow Connector
 10 A
10 Empty -
11 Hazard Switch, Combination Flasher 15 A
12 Brake Light (Stop Lamp) Switch 15 A
13 Body Control Module (BCM), Compass / Mini-Trip Computer, Instrument Cluster, Automatic Day/Night Mirror, Passenger Airbag On/Off Indicator, Sentry Key Remote Entry Module (SKREEM) 10 A
14
  • Diesel: Engine Control Module (ECM), Transmission Control Module (TCM), Mass Air Flow Sensor
  • Gasoline: Powertrain Control Module (PCM), Fuel Pump Relay, High/Low Speed Radiator Fan Relay, A/C Compressor Clutch Relay
 10 A
15 Empty -
16 Rear 12V Power Outlet / Rear Cigarette Lighter 20 A
17 Rear Wiper Motor 15 A
18 Radio 20 A
19 Front Fog Lamps, Trailer Tow Brake Lamp Relay 20 A
20 Empty -
21 Radio, Body Control Module (BCM), Power Door Lock Switches 10 A
22 Sunroof, Antenna Module 20 A
23 Empty -
24 Blower Motor, Fuel Heater 10 A
25 A/C-Heater Control Unit, Blend Door Actuator, Heated Seat Switches, Power Mirror Switch, Trailer Tow Relay 10 A
26 Right High Beam Headlamp 10 A
27 Left High Beam Headlamp 10 A
28 Empty -
29 A/C-Heater Control, Heated Mirrors 10 A
30 Heated Seat Module 15 A
31 Empty -
32 Wiper Switch, Front and Rear Wipers 10 A
33 Data Link Connector (DLC), Sentry Key Remote Entry Module (SKREEM) 10 A
34 Dome Lamp, Courtesy Lamps, Instrument Cluster, Hazard Switch, Radio, Intrusion Transceiver Module, Visor Vanity Lamps, Hands-Free Module, Overhead Map Lamps, Cargo Lamp, Compass / Mini-Trip Computer 15 A
35 Empty -
36 Occupant Classification Module / Airbag 10 A
37 Airbag System 10 A
38 Shifter Assembly, ABS, Tire Pressure Monitoring System (TPMS) 10 A
39 Hazard Switch / Combination Flasher, Rear Window Defogger Relay, Transmission Range Sensor (3.7L A/T), Transmission Solenoid/TRS Assembly (2.8L A/T), Back-Up Lamp Switch (M/T) 10 A
Rear Side
R1 Power Window Relay
R2 Rear Window Defogger Relay
R3 Low Beam Relay
R4 Power Sunroof Relay
R5 Front Fog Lamp Relay
R6 Door Lock Relay
R7 Empty
R8 Horn Relay
R9 Passenger Door Unlock Relay
R10 Rear Fog Lamp Relay
R11 Park Lamp Relay
R12 Driver Door Unlock Relay
CB1 Power Seat Circuit Breaker 25 A
CB2 Empty -
CB3 Front Wiper Relay (On/Off - High/Low), Front Wiper Motor 20 A
