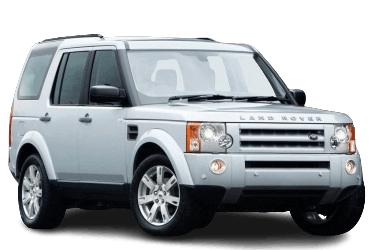

The Land Rover Discovery is a series of seven-seat family SUVs produced by the British automaker Land Rover. Production of the third generation began in July 2004. The vehicle was equipped with petrol engines—a 4.0-liter V6 (219 hp) and a 4.4-liter V8 (300 hp)—as well as a 2.7-liter V6 diesel engine (190 hp). In this article, we take a detailed look at the fuse box diagrams for the Land Rover Discovery 3 (3rd Generation; chassis code L319) for model years 2004, 2005, 2006, 2007, 2008, and 2009.
Here you will find fuse box locations, photos, and diagrams. Fuses for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.
In the Engine Compartment
Located in the engine bay near the battery, behind a protective plastic cover.
To gain access, release the retaining catches and remove the box cover.
Overview of the Land Rover Discovery underhood fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating |
| 1 | Fuel pump fuse | 25 A |
| 2 | Unused | - |
| 3 | Air suspension ECU | 5 A |
| 4 | Diesel – Engine Management System (ECU & fuel pump relay control unit) | 25 A |
| 5 | Petrol – Engine Management System (EGR, purge valve, variable intake tuning valve), E-Box cooling fan | 10 A |
| 6 | Petrol – Engine Management System (ignition coils) | 15 A |
| 6 | From 2007: Diesel – Engine Management System (sensors & glow plug relay control unit) | 15 A |
| 7 | Heated front seats | 25 A |
| 8 | Heated rear seats | 25 A |
| 9 | Up to 2005: Active cornering enhancement / body roll control module | 15 A |
| 10 | Petrol – Engine Management System (electronic throttle control, MAF sensor), cooling fan | 15 A |
| 10 | Diesel – cooling fan control | 15 A |
| 11 | Petrol – Engine Management System (downstream oxygen sensors) | 15 A |
| 12 | Heated windshield washer nozzles | 10 A |
| 13 | Petrol – Engine Management System (ECU, VVT solenoids, fuel pump relay control unit) | 10 A |
| 13 | Diesel – Engine Management System (PCV, VCV valves) | 10 A |
| 14 | Petrol – Engine Management System (upstream oxygen sensors) | 20 A |
| 15 | Heated windshield (windscreen) | 30 A |
| 16 | Heated exterior power mirrors | 10 A |
| 17 | Petrol – Engine Management System (fuel injectors) | 15 A |
| 17 | Diesel – Engine Management System (MAF sensor, EGR valve), E-Box cooling fan | 15 A |
| 18 | Heated windshield (windscreen) | 30 A |
| 19 | Unused | - |
| 20 | Alternator / charging system sensor | 5 A |
| 21 | Unused | - |
| 22 | Rear climate control blower motor | 30 A |
| 23 | Dynamic Stability Control (DSC) module | 25 A |
| 24 | Petrol – brake booster vacuum pump | 20 A |
| 25 | Lighting control switch module | 10 A |
| 26 | Air suspension ECU | 20 A |
| 27 | Engine Control Module (ECM) | 5 A |
| 28 | Diesel auxiliary fuel-fired heater | 20 A |
| 29 | Front windshield wipers | 30 A |
| 30 | Automatic Transmission Control Module (TCM) | 10 A |
| FL1 | Glow plug system | 50 A |
| FL2 | Front fog lamp switch | 30 A |
| FL3 | Transfer case shift motor | 30 A |
| FL4 | Glow plug system | 50 A |
| FL5 | Unused | - |
| FL6 | Trailer electrical harness connector | 30 A |
| FL7 | Headlamp washer system | 30 A |
| FL8 | Electric Parking Brake (EPB) actuator | 30 A |
| FL9 | Electronic Stability Program / Dynamic Stability Control (ESP/DSC) | 40 A |
| FL10 | Air suspension compressor module | 60 A |
| FL11 | Engine immobilizer system | 30 A |
| FL12 | Engine cooling fan motor | 40 A |
| FL13 | Rear locking differential actuator | 40 A |
| FL14 | Starter motor | 40 A |
| FL15 | Turn signals / hazard warning lights | 40 A |
| FL16 | Reverse lamps | 40 A |
| FL17 | Unused | 50 A |
| FL18 | Unused | 50 A |
| R1 | Unused | |
| R2 | Windshield wiper intermittent relay | |
| R3 | Windshield wiper motor relay | |
| R4 | Heated washer nozzles and exterior mirrors relay | |
| R5 | Front fog lamp relay | |
| R6 | Engine management main relay | |
| R7 | Air suspension compressor relay | |
| R8 | Fuel pump relay | |
| R9 | Heated windshield defroster relay | |
| R10 | Rear HVAC blower motor relay | |
| R11 | Unused | |
| R12 | Headlamp washer relay | |
| R13 | Engine immobilizer relay | |
| R14 | Unused | |
| R15 | Glow plug relay 1 | |
| R16 | Engine cooling fan motor relay | |
| R17 | Glow plug relay 2 | |
| R18 | Starter motor relay | |
| R19 | Unused | |
In the Passenger Compartment
The main passenger compartment fuse box is mounted behind the lower glove box. To gain access, open the glove compartment, press inward on the upper retaining arms, and lower the assembly down.
An auxiliary fuse panel is located inside the base of the center console storage cubby. To access it, remove the console floor tray liner and the CD storage module.
Primary Fuse Box
Accessing the glove box fuse panel.
Overview of the Land Rover Discovery cabin fuse panel.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating |
| F1 | Interior lighting (vanity mirror lamps, glove box illumination, overhead reading lamps), non-memory power seats | 10 A |
| F2 | Right-hand side / parking lamps | 10 A |
| F3 | Up to 2005: Interior theater dimming lighting | 10 A |
| F4 | Left-hand side / parking lamps | 10 A |
| F5 | Reverse lamps | 10 A |
| F6 | Trailer reverse lamps | 10 A |
| F7 | Driver side power window switch / motor | 25 A |
| F8 | Trailer auxiliary power feed (battery supply) | 30 A |
| F9 | Up to 2006: Supplemental Restraint System (SRS) module | 5 A |
| From 2007: Airbag control module | ||
| F10 | Unused | - |
| F11 | Windshield and rear washer pump | 15 A |
| 10 A | ||
| F12 | Horn | 15 A |
| F13 | Heated rear window (defogger) | 25 A |
| F14 | Trailer side marker lamps | 10 A |
| F15 | Brake lamps, brake pedal switch | 15 A |
| F16 | Power-folding exterior mirrors | 10 A |
| F17 | Right rear power window | 20 A |
| F18 | Automatic headlamp sensor, rain sensor module | 5 A |
| F19 | Auxiliary 12V power outlet / cigarette lighter (2nd row seats) | 15 A |
| F20 | Sunroof control module | 15 A |
| F21 | Front passenger side power window | 25 A |
| F22 | Trailer auxiliary power feed (ignition supply) | 10 A |
| F23 | Unused | - |
| F24 | Transfer case (center differential lock), Terrain Response system | 5 A |
| F25 | Engine Control Module (ECM) | 5 A |
| F26 | Security alarm battery-backed sounder | 5 A |
| F27 | Adaptive Front-lighting System (AFS) / headlamp leveling module | 10 A |
| F28 | Engine compartment fuse box (ignition supply) | 5 A |
| F29 | Front passenger power seat | 30 A |
| F30 | Unused | - |
| F31 | Left rear power window | 20 A |
| F32 | Rear fog lamps | 15 A |
| F33 | Gearshift selector module, power mirror controls, passenger power seat (pre-2005) | 5 A |
| F34 | Front 12V power outlet and Land Rover Discovery cigarette lighter fuse | 15 A |
| F35 | Air suspension ECU | 5 A |
| F36 | Tire Pressure Monitoring System (TPMS), Park Distance Control (PDC) | 5 A |
| F37 | Dynamic Stability Control (DSC) module | 5 A |
| F38 | Front fog lamps | 15 A |
| F39 | Instrument cluster | 5 A |
| F40 | Key-in ignition sensing system | 5 A |
| F41 | Electric Parking Brake (EPB) module / switch | 5 A |
| F42 | Audio system power amplifier | 30 A |
| F43 | Tire Pressure Monitoring System (TPMS) RF receiver | 10 A |
| F44 | Automatic transmission selector module | 5 A |
| F45 | Unused | - |
| F46 | Driver power seat | 30 A |
| F47 | 3rd-row seats – 12V auxiliary power outlet and cigarette lighter | 15 A |
| F48 | Rear window wiper | 15 A |
| F49 | Central locking system | 30 A |
| F50 | Electric fuel filler flap actuator | 10 A |
| F51 | Automatic Climate Control unit (HVAC) | 10 A |
| F52 | Telephone module, Traffic Message Channel (TMC) system | 5 A |
| F53 | Audio head unit, multimedia module, DVD player | 15 A |
| F54 | Power seat memory module, lumbar support pump | 5 A |
| F55 | Cigarette lighter fuse | 15 A |
| F56 | Left-Hand Drive (LHD) – Adaptive Front-lighting System (AFS) | 10 A |
| F57 | Rear seat entertainment module | 10 A |
| F58 | Telephone module, multimedia control, touchscreen display, TV tuner | 10 A |
| F59 | Center console cooler box | 10 A |
| F60 | Engine Control Module (ECM) | 5 A |
| F61 | Right-Hand Drive (RHD) – Adaptive Front-lighting System (AFS) | 10 A |
| F62 | Automatic headlamps, low beam relay control | 5 A |
| F63 | OBD-II diagnostic connector | 10 A |
| F64 | Transmission Control Module (TCM) | 5 A |
| F65 | Unused | - |
| F66 | Brake switch, Hill Descent Control (HDC) switch, DSC switch, steering angle sensor | 5 A |
| F67 | Automatic headlamp leveling control unit | 5 A |
| F68 | Instrument cluster | 5 A |
| F69 | Auto-dimming interior rearview mirror | 5 A |
| Electrochromic mirror, HomeLink® universal transceiver (up to 2005) | ||
| R1 | Auxiliary power socket relay | |
| R2 | Unused | |
| R3 | Cigarette lighter relay | |
| R4 | Unused | |
| R5 | Multimedia control module relay | |
Auxiliary Fuse Panel
Auxiliary protection circuits (armored / special option vehicles).
|
||
| No. | Description | Rating |
| F1 | Intercom system | 5 A |
| F2 | Security alarm system | 20 A |
| F3 | Covert emergency lighting | 5 A |
| F4 | Warning beacon lamp | 10 A |
| F5 | Battery status monitor module | 3 A |
| F6 | Auxiliary equipment / accessories circuit | 30 A |
In the Luggage Compartment
Location overview.
| Diagram | ||
|---|---|---|
|
||
| F1 | Brake lamps | 7.5 A |
| F2 | Ignition-switched power supply | 15 A |
| F3 | Direct battery power supply | 15 A |
| F4 | Rear fog lamps | 7.5 A |
| F5 | Left tail lamp | 5 A |
| F6 | Left tail lamp and license plate illumination | 5 A |
