Fuses Land Rover Discovery (L319; 2009–2017)

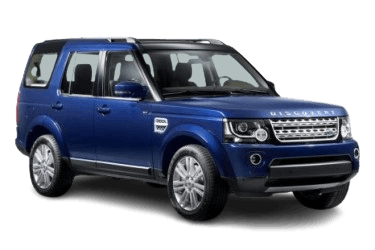

The Land Rover Discovery is a series of premium mid-size SUVs first launched in 1989. The fourth-generation model debuted in April 2009 at the New York International Auto Show and was marketed as the LR4 in the North American market. This article provides detailed fuse box diagrams and panel layouts for the Land Rover Discovery 4 / LR4 (L319 chassis; model years 2009–2017).

Below you will find fuse box locations, photos, and circuit assignments. Fuses for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold for quick identification.

Passenger Compartment Fuse Boxes

The upper fuse box is located inside the upper glove compartment. To access it, open the compartment door and remove the rear access panel.

The lower fuse box is located behind the lower glove compartment. To access it, open the lower glove box, release the upper retaining straps, and lower the assembly into the footwell.

Upper Fuse Box

Overview and fuse specifications:

• F1 – Front Integrated Control Panel (FICP), touchscreen display (15 A);
• F2 – Audio power amplifier (10 A);
• F3 – Unassigned;
• F4 – Satellite radio module, navigation system (10 A);
• F5 – Audio head unit (15 A);
• F6 – Audio/video input/output (I/O) panel (15 A);
• F9 – Heating and ventilation system, front and rear integrated control panels (15 A);
• F10 – Auxiliary fuel-fired heater (20 A)

Lower Fuse Box

Diagram and circuit assignment details.

Diagram
No.	Protected Component / Circuit	Rating
F1	Tire Pressure Monitoring System (TPMS), RF receiver	5 A
F2	Unassigned	-
F3	Front fog lamps	10 A
F4	2014–2017: Unassigned 2009–2014: Auto-dimming interior rear-view mirror 2009–2011: Automatic high-beam assist	5 A
F5	Anti-lock Braking System (ABS), Dynamic Stability Control (DSC), steering angle sensor	5 A
F6	2015–2017: Adaptive Cruise Control (ACC) module	5 A
F7	Unassigned	-
F8	Unassigned	-
F9	Electric Parking Brake (EPB) system	5 A
F10	Electronic Air Suspension (EAS) control unit	5 A
F11	Trailer reversing lamps	10 A
F12	Reversing lamps	5 A
F13	Unassigned	-
F14	2014–2017: Brake pedal switch 2009–2014: Stop lamps, brake pedal switch	5 A
F15	Heated rear window module	30 A
F16	Center console cooler box	10 A
F17	Passive entry/start system, central door locking	5 A
F18	2009–2014: Unassigned	15 A
	2014–2016: Rear windscreen wiper
F19	Engine Control Module (ECM)	5 A
F20	Heated steering wheel	10 A
F21	2009–2014: Headlamp leveling, center console switches (transfer case, Hill Descent Control [HDC], DSC), air quality sensor, rear climate control	10 A
	2014–2016: Rear climate control module, center console switches
F22	Automatic transmission control unit, electronic rear differential, transfer case module	5 A
F23	2009–2014: Headlamp leveling control	5 A
	2014–2016: Unassigned
F24	Right-hand side lamps and tail lamps	10 A
F25	Left-hand side lamps and tail lamps	10 A
F26	Unassigned	-
F27	Trailer side lamps	10 A
F28	Unassigned	-
F29	Unassigned	-
F30	Central door locking, front passenger power window	25 A
F31	2009–2014: Rear-view camera, rain sensor	5 A
	2014–2016: Auxiliary lamp switch, rain sensor
F32	Driver power window, central door locking, power exterior mirrors	25 A
F33	Unassigned	-
F34	Electric fuel filler door actuator	10 A
F35	Unassigned	-
F36	Battery-backed security sounder	5 A
F37	Keyless entry system, central door locking	20 A
F38	Front windscreen washer	15 A
F39	Left rear power window, central door locking	25 A
F40	Driver seat memory module, driver door master switch pack (exterior mirrors, windows), clock	5 A
F41	2014–2017: Gateway module 2012–2014: Audio power amplifier 2009–2012: Unassigned	-
F42	Driver power seat	30 A
F43	Rear windscreen washer	15 A
F44	Right rear power window, central door locking	25 A
F45	Front passenger power seat	30 A
F46	Unassigned	-
F47	Power sunroof module	20 A
F48	2009–2014: Trailer connector (battery feed)	30 A
	2014–2017: Trailer connector (battery feed)	15 A
F49	Right-hand Adaptive Front-lighting System (AFS)	5 A
F50	Left-hand Adaptive Front-lighting System (AFS)	5 A
F51	Steering wheel control switches	5 A
F52	Unassigned	-
F53	Cigarette lighter socket	20 A
F54	Trailer connector (ignition feed)	15 A
F55	Center console and rear auxiliary 12 V power sockets	20 A
F56	Airbag control module / Supplemental Restraint System (SRS)	10 A
F57	Interior lighting	10 A
F58	Unassigned	-
F59	Unassigned	-
F60	Unassigned	-
F61	Instrument cluster, message center	10 A
F62	Climate control ECU	10 A
F63	Front 12 V power socket	20 A
F64	2009–2014: DVD player, audio unit	15 A
	2014–2016: Engine Control Module (ECM)	5 A
F65	2009–2014: Surround camera system	5 A
	2014–2016: Unassigned
F66	Diagnostic link connector (OBD-II port)	5 A
F67	2009–2014: Rear seat entertainment module	15 A
	2014–2016: Unassigned
F68	2009–2014: Touchscreen display, radio, multimedia module, telephone module	10 A
	2014–2016: Unassigned
F69	Unassigned	-

Engine Compartment Fuse Box

Located on the left-hand side of the engine compartment, beneath the protective cover.

Cover removal illustration.

Overview of the engine compartment fuse box.

Diagram
No.	Protected Component / Circuit	Rating
F1	Fuel pump	25 A
F2	2009–2014: Petrol – Engine Management System (MAF sensor, oil level sensor); Diesel – Fuel-fired auxiliary heater	5 A
	2014–2017: Engine Management System (petrol); Fuel-fired auxiliary heater (diesel)	10 A
F3	Electronic Air Suspension (EAS) control unit	5 A
F4	EMS (fuel pump relay control, ECM)	25 A
F5	Engine Management System (EMS)	15 A
F6	Diesel – EMS (glow plug relay control, sensors) Petrol – EMS (ignition coils)	15 A
F7	2015–2017: Adaptive Cruise Control (ACC) module	10 A
F8	Heated rear seats	25 A
F9	Unassigned	-
F10	2009–2014: Petrol – EMS (electronic throttle body) 2009–2017: Diesel – EMS	10 A
F11	2009–2014: Petrol – EMS (heated oxygen sensors); 3.0L Diesel – Air conditioning compressor clutch	15 A
	2014–2017: Diesel Exhaust Fluid (DEF) control module (diesel) / Engine Management System (petrol)	20 A
F12	Heated windscreen washer jets	10 A
F13	Engine Management System (EMS)	15 A
F14	Petrol – EMS (heated oxygen sensors)	15 A
F15	2009–2014: Heated front windscreen	30 A
	2014–2017: Rear-view mirror, high-line camera system, rear-view camera	5 A
	2015–2017: Rear-view mirror, Adaptive Front-lighting System (AFS), surround cameras, headlamp control module	10 A
F16	2009–2014: Rear windscreen wiper	15 A
	2014–2017: Forward detection sensor, Blind Spot Monitoring (BSM) system	5 A
F17	2009–2012: E-box cooling fan; 3.0L Diesel – EMS (MAF sensor, EGR valve); V6 Petrol – EMS (EGR valve, EVAP purge valve)	10 A
	Engine Management System (diesel)	10 A
	2014–2017: Engine Management System (petrol)	20 A
F18	2009–2012: Heated front windscreen	30 A
	2012–2014: Headlamp power wash	30 A
	2014–2017: Engine Management System	5 A
F19	Unassigned	-
F20	2009–2014: Alternator / generator control	5 A
	2014–2017: Headlamp power wash system	30 A
F21	Anti-lock Braking System (ABS), Dynamic Stability Control (DSC)	5 A
F22	Rear climate control blower motor	30 A
F23	Traction Control System (TCS)	25 A
F24	Heated front seats	25 A
F25	Horns	15 A
F26	Electronic Air Suspension (EAS) control unit	20 A
F27	2009–2014: Engine Control Module (ECM)	5 A
	2014–2017: Air conditioning system	15 A
F28	2015–2017: Supercharged V8 Petrol – charge air cooler coolant pump 2009–2014: Diesel – auxiliary fuel-fired heater 2009–2012: V6 Petrol – vacuum brake booster pump	20 A
F29	Front windscreen wipers	30 A
F30	Transmission Control Module (TCM)	10 A
