Fuses and relays Range Rover Sport (L320; 2005–2013)

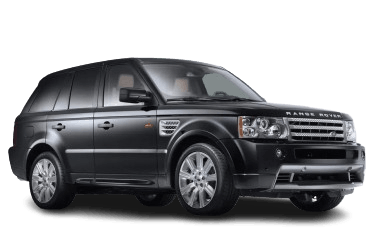

The Range Rover Sport is a mid-size luxury SUV built on the Land Rover Discovery 3 platform. In this article, we provide a detailed overview of the fuse box diagrams and relay locations for the first-generation Land Rover Range Rover Sport (chassis code L320; model years 2005–2013).

Below you will find descriptions, component locations, and diagrams for the power distribution boxes. Fuses for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.

Passenger Compartment Fuse Box

Located behind the glove compartment. To gain access, open the glove box, press inward on both upper retaining clips, and lower the assembly.

Overview of the Range Rover Sport passenger compartment fuse box (Central Junction Box).

Diagram
No.	Circuit Protected	Rating
F1	Interior lamps	10 A
F2	Right side lamps	10 A
F3	Not used	-
F4	Left side lamps	10 A
F5	Reversing lamps	10 A
F6	Trailer reversing lamps	10 A
F7	Driver side power window	25 A
F8	Trailer socket	30 A
F9	Supplemental Restraint System (SRS)	5 A
F10	Not used
F11	Windscreen washers	10 A
F12	Horns	15 A
F13	Heated rear window	25 A
F14	Trailer side lamps	10 A
F15	Stop lamps	15 A
F16	Power folding exterior mirrors	10 A
F17	Rear right power window	20 A
F18	Rain sensor / ambient light sensor	5 A
F19	Center console 12V auxiliary power outlet	15 A
F20	Sunroof module	15 A
F21	Front passenger power window	25 A
F22	Trailer connector	10 A
F23	Cruise control system	5 A
F24	Transfer case control module	5 A
F25	Engine Control Module (ECM)	5 A
F26	Alarm system siren	5 A
F27	Adaptive front lighting system (AFS) module, headlamp leveling control module	10 A
F28	Engine compartment fuse box / relay plate feed	5 A
F29	Front passenger power seat	30 A
F30	Not used	-
F31	Rear left power window	20 A
F32	Rear fog lamps	15 A
F33	Exterior mirror adjustment, Transmission Control Module (TCM), power front seats	5 A
F34	Not used	15 A
F35	Air suspension control module, variable power steering	5 A
F36	Park Assist control module	5 A
F37	Dynamic Stability Control (DSC) / ESP module	5 A
F38	Front fog lamps	15 A
F39	Instrument cluster	5 A
F40	Ignition key audible warning unit	5 A
F41	Electronic parking brake (EPB)	5 A
F42	Audio system power amplifier	30 A
F43	Anti-theft alarm inclination / motion sensor	10 A
F44	Transmission position sensor	5 A
F45	Not used	-
F46	Driver power seat	30 A
F47	Luggage compartment 12V auxiliary power outlet / Cigarette lighter	15 A
F48	Tailgate wiper motor	15 A
F49	Central locking system	30 A
F50	Fuel filler flap release switch	10 A
F51	Climate control system (HVAC / blower module)	10 A
F52	Cellular telephone control module	5 A
F53	Front infotainment control module	15 A
F54	Power seat memory module	5 A
F55	Range Rover Sport cigarette lighter fuse	15 A / 20 A
F56	Left headlamp leveling motor	10 A
F57	Rear infotainment control module	10 A
F58	Multi-function display screen, infotainment module, telephone unit	10 A
F59	Center console cooler box	10 A
F60	Engine Control Module (ECM) ignition start signal	5 A
F61	Right headlamp leveling motor	10 A
F62	Daytime running lights (DRL)	5 A
F63	Diagnostic Data Link Connector (DLC / OBD-II)	10 A
F64	Transmission Control Module (TCM)	5 A
F65	Not used	-
F66	Hill Descent Control (HDC) switch, steering angle sensor, brake lamps switch	5 A
F67	Daytime running lights (DRL)	5 A
F68	Instrument cluster	5 A
F69	Auto-dimming interior rearview mirror, HomeLink garage door opener	5 A
R1	Auxiliary power outlet relay
R2	Cigarette lighter relay
R3	Audio power amplifier relay

Engine Compartment Fuse Box

Located at the rear right of the engine compartment. Press the release tabs to remove the protective cover.

Overview of the engine compartment fuse box (Engine Junction Box).

Diagram
No.	Circuit Protected	Rating
F1	Range Rover Sport fuel pump fuse	25 A
F2	Evaporative emissions (EVAP) leak detection pump	5 A
F3	Air suspension control module	5 A
F4	Supercharger (SC) coolant pump motor	25 A
F5	Engine management system (petrol / gasoline)	10 A
F6	Ignition coils	15 A
F7	Heated driver seat	25 A
F8	Rear seat heater control module	25 A
F9	Active Dynamic Response / roll control valve	15 A
F10	Engine management, engine cooling fan control module (petrol / gasoline)	15 A
F11	Heated oxygen sensors (HO2S)	15 A
F12	Heated windscreen washer jets	10 A
F13	Engine management (petrol / gasoline), variable valve timing module, fuel pump relay	10 A
F14	Heated oxygen sensors (HO2S)	20 A
F15	Heated windscreen	30 A
F16	Heated exterior mirrors	10 A
F17	Engine management system (petrol / gasoline)	15 A
F18	Heated windscreen	30 A
F19	Not used	15 A
F20	Alternator / Generator	5 A
F21	Not used	-
F22	Not used	-
F23	Anti-lock Braking System (ABS) module	25 A
F24	Brake system vacuum pump (petrol / gasoline)	10 A
F25	Headlamp switch	10 A
F26	Air suspension system	20 A
F27	Engine Control Module (ECM)	5 A
F28	Fuel-fired auxiliary heater (FFH)	20 A
F29	Windscreen wiper system	30 A
F30	Automatic transmission control module	10 A
F31	Glow plug module (diesel)	50 A
F32	Fog lamp control switch	30 A
F33	Transfer case shift motor	30 A
F34	Glow plug relay (diesel)	50 A
F35	Not used	-
F36	Trailer towing connector	30 A
F37	Headlamp power washer pump	30 A
F38	Electronic parking brake (EPB) actuator	30 A
F39	ABS / DSC pump motor	40 A
F40	Air suspension compressor pump	60 A
F41	Engine immobilizer system	30 A
F42	Engine cooling fan motor	40 A
F43	Electronic rear differential lock control module	40 A
F44	Starter motor solenoid	40 A
F45	Central Junction Box (CJB) feed	40 A
F46		40 A
F47	Passenger compartment fuse box feed	50 A
F48		50 A
F49	Not used	-
F50	Not used	-
R1	Not used	-
R2	Intermittent windscreen wiper relay	-
R3	Windscreen wiper motor relay	-
R4	Heated exterior mirrors Heated windscreen washer jets	-
R5	Front fog lamps relay	-
R6	Engine control (ECM) main relay	-
R7	Air suspension compressor relay	-
R8	Fuel pump relay	-
R9	Heated windscreen relay	-
R10	Blower motor relay	-
R11	Not used	-
R12	Headlamp washer pump relay	-
R13	Immobilizer relay	-
R14	Not used	-
R15	Glow plug relay – Bank 1 (diesel)	-
R16	Engine cooling fan motor relay	-
R17	Glow plug relay – Bank 2 (diesel)	-
R18	Starter relay	-
R19	Not used	-

Luggage Compartment Fuse Box

Located behind the access cover in the luggage compartment. Description:

1. Stop lamps (7.5 A);
2. Switched ignition feed (15 A);
3. Permanent battery feed (15 A);
4. Rear fog lamps (7.5 A);
5. Right tail lamp (5 A);
6. License plate lamps and left tail lamp (5 A).
