Fuses and relays Land Rover Freelander / LR2 (L359; 2006–2015)

Table of Contents

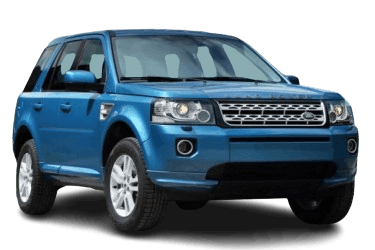

The Land Rover Freelander 2 was unveiled in July 2006 at the British International Motor Show in London. In European markets, the original model name was retained, while in North America it was marketed as the LR2. Below is a comprehensive guide to the fuse box diagrams and relay assignments for the Land Rover Freelander 2 / LR2 (second generation; L359 chassis) for model years 2006 through 2015.

Fuses for the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.

In the engine compartment


Located on the left side of the engine compartment, beneath the protective plastic cover.


General assembly view.

Diagram
No. Description Amps
F1
  • 2013–2016: Unused
  • 2012: Auxiliary coolant pump
  • 2006–2011: Glow plugs
 5 A
F2 2006–2012: Transmission Control Module (TCM) 15 A
2013–2016: Voltage Quality Module (VQM) 5 A
F3 Engine cooling fans 80 A
F4 Glow plugs 60 A
F5 Unused -
F6
 		 2006–2012 Diesel: Engine management system 10 A
2006–2012 Petrol: Engine management system 15 A
2013–2016: Engine management system, oxygen sensors 15 A
F7 Relays 5 A
F8 2006–2012 Diesel: Engine management system 10 A
2006–2012 Petrol: Engine management system 15 A
2013–2016: Engine management system 20 A
F9 2006–2012 Diesel: Engine management system 10 A
2006–2012 Petrol: Engine management system 15 A
2013–2016: Engine management system 10 A
F10 2006–2012 Petrol: Engine management system 10 A
2013–2016: Transmission Control Module (TCM) 15 A
F11 Engine management system 10 A
F12 2006–2012 Diesel: Engine management system 10 A
2006–2012 Petrol: Engine management system 20 A
2013–2016: Engine management system 15 A
F13 2006–2012: Air conditioning (A/C) system 15 A
2013–2016: Air conditioning (A/C) system 10 A
F14 2006–2012 Diesel: Engine management system 15 A
2013–2016: Air conditioning / Engine management system 15 A
F15 Starter motor 40 A
F16 Diesel PTC heater 100 A
F17 Passenger compartment fuse box power supply 60 A
F18 60 A
F19 2006–2012: Luggage compartment fuse box power supply 60 A
F19 2013–2016: Luggage compartment fuse box power supply, audio system 60 A
F20 Luggage compartment fuse box power supply 60 A
F21 2006–2012: Luggage compartment fuse box power supply, audio unit 60 A
2013–2016: Luggage compartment fuse box power supply 60 A
F22 Windshield wipers 30 A
F23 2013–2016: Passenger compartment fuse box power supply
2006–2012: Unused		 40 A
F24 2013–2016: Unused
2006–2012: Headlamp washers		 30 A
F25 ABS module 30 A
F26 ABS module 40 A
F27 2013–2016: Passenger compartment fuse box power supply
2006–2012: Unused		 40 A
F28 Climate control blower motor 40 A
F29 Unused -
F30 2013–2016: Headlamp washers
2006–2012: Unused		 15 A
F31 Horns 15 A
F32 Diesel auxiliary heater 20 A
F33 Relays 5 A
F34 Heated windshield (LHD) 40 A
F35 Heated windshield (RHD) 40 A
F36 2013–2016: Auxiliary heater coolant pump (diesel)
2006–2012: Unused		 5 A
F37 2006–2012: Heated windshield washer jets 10 A
2013–2016: Fuel pump 20 A
F38 2006–2012: Adaptive Front-lighting System (AFS - Right) 10 A
2013–2016: Park Assist control module 10 A
F39 2013–2016: Unused
2006–2012: Climate control system		 10 A
F40 2013–2016: Unused
2010–2012: Auxiliary coolant pump
2006–2010: Unused		 10 A
F41 2013–2016: Unused
2006–2012: Passenger compartment fuse box power supply		 20 A
F42 2006–2012: Engine management system 15 A
2013–2016: Headlamp leveling module 5 A
F43 2006–2012: Headlamp leveling / AFS 5 A
2013–2016: Rearview camera, automatic main beam control   5 A
F44 2006–2012: Adaptive Front-lighting System (AFS - Left) 10 A
2013–2016: Heated steering wheel 10 A
F45 2006–2012: Cigarette lighter 15 A
2013–2016: Auxiliary heater coolant pump (diesel) 5 A
Relays
1 Starter motor
2 Engine management system
3 A/C compressor magnetic clutch
4 Glow plug module
5 Auxiliary ignition relay
6 Heated windshield
7 Main ignition relay
8 Windshield wiper motor
9 Headlamp washer pump
10 Horn
11 Windshield wipers
12 Headlamp washer pump

In the passenger compartment


The fuse box is located beneath (2006–2012) or behind (2013–2015) the glove box.

2013–2015 model years


General view of the passenger compartment fuse box.

Diagram
No. Description Amps
F1 Interior motion sensor, radio receiver, Tire Pressure Monitoring System (TPMS) 5 A
F2 Unused -
F3 Front fog lamps 15 A
F4 Unused -
F5 Dynamic Stability Control (DSC) / Traction control module 5 A
F6 Ignition feed for engine compartment and luggage compartment fuse box relays 5 A
F7 Unused -
F8 Front passenger door module 25 A
F9 Electric Parking Brake (EPB) 5 A
F10 Heated washer jets 5 A
F11 Trailer lighting / Tail lights 10 A
F12 Power mirror controls, reverse lights 10 A
F13 Unused -
F14 Brake pedal switch 5 A
F15 Heated rear window (defroster) 30 A
F16 Unused -
F17 Keyless Vehicle Module (KVM) 5 A
F18 Unused -
F19 Powertrain Control Module (PCM) 5 A
F20 Accelerator pedal position sensor 5 A
F21 Instrument cluster, electric booster heater, center console switch pack 5 A
F22 Transmission Control Module (TCM) 5 A
F23 Unused -
F24 Rear right fog lamp 5 A
F25 Rear left fog lamp 5 A
F26 Unused -
F27 Unused -
F28 Unused -
F29 Unused -
F30 Unused -
F31 Rain sensor, voltage quality module, Passenger Airbag Deactivation (PAD) indicator 5 A
F32 Driver door module 25 A
F33 Unused -
F34 Fuel filler flap release 10 A
F35 Unused -
F36 Battery-backed alarm siren 5 A
F37 Electronic Road Pricing (ERP - Singapore market) 5 A
F38 Front windshield washer 15 A
F39 Rear left door module 25 A
F40 Instrument clock, seat memory switch module 5 A
F41 Unused -
F42 Driver power seat module 30 A
F43 Rear window washer 15 A
F44 Rear right door module 25 A
F45 Front passenger power seat 30 A
F46 Unused -
F47 Sunroof and power sunblind control module 20 A
F48 Trailer socket 15 A
F49 Unused -
F50 Unused -
F51 Steering wheel control switches 5 A
F52 Front cigarette lighter / 12V power outlet 20 A
F53 Unused -
F54 Unused -
F55 Rear auxiliary 12V power outlet 20 A
F56 Restraints Control Module (RCM) 10 A
F57 Battery saver circuit, glove box lamp, vanity mirror lights, overhead console lighting 10 A
F58 Unused -
F59 Unused -
F60 Occupant Classification System Control Module (OCSCM) 5 A
F61 Immobilizer Antenna Unit (IAU) 5 A
F62 Climate control module 10 A
F63 Luggage compartment auxiliary 12V power outlet 20 A
F64 Unused -
F65 Unused -
F66 On-Board Diagnostics (OBD II) connector 5 A
F67 Unused -

2006–2012 model years


General assembly view.

Diagram
No. Description Amps
F1 Rain sensor 5 A
F2 Supplemental Restraint System (SRS) module 10 A
F3 Anti-lock Braking System (ABS) module 5 A
F4 Instrument cluster, light switch module, accelerator pedal sensor 5 A
F5 Unused 5 A
F6 Audio system 15 A
F7 Steering wheel controls 7.5 A
F8 Instrument cluster 5 A
F9 Headlamp main beam 15 A
F10 Power sunroof 15 A
F11 Electrochromic rearview mirror, reverse lights 7.5 A
F12 Unused -
F13 Front fog lamps 15 A
F14 Windshield washer 15 A
F15 Unused -
F16 Unused -
F17 Interior courtesy lighting 7.5 A
F18 Unused -
F19 Power seat controls 5 A
F20 Rear window wiper 15 A
F21 Anti-theft alarm system 5 A
F22 Fuel pump 20 A
F23 Electronic steering column lock 20 A
F24 Unused -
F25 Tailgate release, fuel filler flap 10 A
F26 OBD diagnostic connector, anti-theft alarm module 5 A
F27 Engine Start/Stop button, climate control module 5 A
F28 Brake lights 5 A
F29 Voltage Quality Module (VQM) 15 A

In the luggage compartment


Located beneath the luggage compartment floor panel, adjacent to the spare tire.


General assembly view.

Diagram
No. Description Amps
A1 Rear window defroster
A2 Rear window wiper
B1 Main ignition relay
B2 Unused
C1 Audio system relay
C2 Unused
FA1 2006–2012: Driver door module 25 A
FA2 2006–2012: Front passenger door module 25 A
FA3 2006–2012: Rear left door module 25 A
FA4 2006–2012: Rear right door module 25 A
FA5 Unused -
FA6 2006–2012: Rear auxiliary power outlet 15 A
FA7 2006–2012: Heated rear window (defroster) 30 A
FA8 Unused -
FA9 2006–2012: Trailer power supply 15 A
FA10 2006–2012: Driver power seat 30 A
FA11 2006–2012: Trailer power supply 40 A
FA12 Unused -
FB1
  • 2006–2012: Park Distance Control (PDC)
  • 2013–2015: Active center differential module
 10 A / 15 A
FB2 2013–2015: Refrigerator / Cool box 15 A
FB3 Driver seat heater 15 A
FB4 Front passenger seat heater 15 A
FB5
  • 2006–2012: Refrigerator / Cool box
  • 2013–2015: Auxiliary heater control module
 15 A / 5 A
FB6 2006–2012: Active center differential module 15 A
FB7 Unused -
FB8 2013–2015: Instrument cluster 10 A
FB9
  • 2006–2012: Front passenger power seat
  • 2013–2015: Climate control (HVAC) system
 30 A / 5 A
FB10 Unused -
FB11 Unused -
FB12 Unused -
FD1 Touchscreen and audio head unit 10 A
FD2 2013–2015: Audio system module 15 A
FD3
  • 2006–2012: Digital Audio Broadcasting (DAB) module
  • 2013–2015: Digital radio receiver
 10 A
FD4 2006–2012: Bluetooth phone module 5 A
FD5 2013–2015: Power seat control switches 5 A
FD6
  • 2006–2012: Audio system
  • 2013–2015: Electric Parking Brake (EPB) module
 10 A / 30 A
FD7 2013–2015: Rear window wiper 15 A
FD8 2013–2015: Electric Parking Brake (EPB) 30 A
FD9 2006–2012: Audio amplifier 30 A
FD10 2013–2015: Audio amplifier 5 A
FD11 2013–2015: Audio amplifier 40 A
FD12 Unused -
