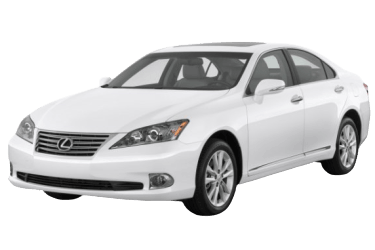

The fifth-generation Lexus ES front-wheel drive sedan premiered in 2006. After a long reign of three-liter power units (with the exception of the debut of the first generation with a 2.5-liter engine and the short-lived fourth generation with a 3.3-liter engine), the new version was equipped with a 3.5-liter engine for the first time. The car is still built on the Toyota Camry platform. However, its premium status is emphasized by an emphasis on premium luxury, increased attention to the smallest details, and rich trim with wood, polished metal, and leather inserts.
The power circuits of the Japanese premium car are protected by relays and fuses. The elements are installed in distribution blocks located in the engine compartment and the passenger compartment. Considered fuse diagrams of Lexus ES 350 (XV40 / GSV40) 5th generation 2006, 2007, 2008, 2009, 2010, 2011, 2012 year release.
In the passenger compartment
Location of components: 1. fuse block, 2. Body electrical control unit, 3. Direction indicator relay, 4. Lighting control unit (adaptive lighting), 5. Distribution block No. 3, 6. Distribution block No. 1, 7. Distribution block No. 2, 8 Distribution block No. 4, 9. Wiper relay, 10. Air conditioner amplifier, 11. Control unit for outside rear-view mirrors, 12. Certification unit, 13. Active engine mounts unit, 14. Distance control unit, 15. Network gateway unit, 16. Tire pressure control unit, 17. Central airbag unit, 18. Transmission selector lock unit, 19. Distribution unit No. 5, 20. Steering wheel lock unit, 21. Steering column control unit, 22. ID block.
Located on the driver's side, at the bottom of the dashboard.
Access example.
| Diagram | ||
|---|---|---|
|
||
| No. | Description of fuses | A |
| 1 | Right rear power window | 25 |
| 2 | Left rear power window | 25 |
| 3 | Fuel tank hatch | 7.5 |
| 4 | Front fog lights | 15 |
| 5 | Diagnostic connector | 7.5 |
| 6 | ECU powers | 7.5 |
| 7 | Brake light | 10 |
| 8 | Steering column adjustments | 30 |
| 9 | - | - |
| 10 | - | - |
| 11 | Air conditioning | 7.5 |
| 12 | Window lifters | 25 |
| 13 | Body electrical control unit | 25 |
| 14 | Sunroof | 30 |
| 15 | parking lights, license plate lighting | 15 |
| 16 | Light switch | 7.5 |
| 17 | Sunroof, heated seats, power windows, clock, automatic wiper, cooling fan, driver's seat memory | 10 |
| 18 | ABS, vehicle stabilization system, traction control, brake assist system, gear selector lock, brake lights, cruise control | 7.5 |
| 19 | Air conditioning, heated rear window | 10 |
| 20 | Glass washer | 10 |
| 21 | Heated seats, air conditioning | 20 |
| 22 | Alarm, reversing lamps, charging system, rear window blind | 10 |
| 23 | Wiper | 25 |
| 24 | Headlights corrector | 7.5 |
| 25 | - | - |
| 26 | Sequential multiport fuel injection system, airbags, steering lock | 10 |
| 27 | Instrument cluster | 7.5 |
| 28 | Clock, body ECU | 7.5 |
| 29 | Cigarette lighter fuse Lexus ES 350 | 20 |
| 30 | Socket | 20 |
| 31 | Radio cassette | 7.5 |
| 32 | Heated mirrors | 15 |
| Top & Back Side | ||
|
||
| 1 | Power seats | 30 |
| 2 | Window lifters | 30 |
| Relay | ||
| R1 | Fog light | |
| R2 | Parking lights | |
| R3 | Subsidiary | |
| R4 | Short pin | |
| R5 | Ignition | |
In the engine compartment
Location of components: 1. fuse box, 2. Gearbox control unit, 3. Fan control unit, 4. Stability control, 5. Engine control unit
Access example.
| Assigment of fuses in the engine compartment Lexus ES350 | ||
|---|---|---|
|
||
| No. | Decoding | A |
| 1 | Generator | 10 |
| 2 | Rear fog light | 10 |
| 3 | - | - |
| 4 | - | - |
| 5 | Launch system | 7.5 |
| 6 | Charging system | 7.5 |
| 7 | Mayday | 10 |
| 8 | - | - |
| 9 | Air conditioning | 15 |
| 10 | Active engine mounts | 10 |
| 11 | Throttle control system | 10 |
| 12 | Direction indicators (hazard warning lights) | 15 |
| 13 | Sequential multiport fuel injection system, fuses: "GAUGE NO.2", "IGN" | 20 |
| 14 | Steering wheel lock system | 20 |
| 15 |
|
10 |
| 16 | ECU powers | 10 |
| 17 | Audio system | 15 |
| 18 | central locking | 25 |
| 19 | Radio cassette | 30 |
| 20 | 30 | |
| 21 | Multiport fuel injection system / sequential multiport fuel injection system, body ECM, fuses: "EFI NO.2", "EFI NO.3" | 30 |
| 22 | - | - |
| 23 | Sequential multiport fuel injection system | 10 |
| 24 | 15 | |
| 25 | Sound signal (anti-theft system) | 7.5 |
| 26 | Sequential multiport fuel injection system | 20 |
| 27 | Instrument cluster | 10 |
| 28 | Sequential multiport fuel injection system, body ECM | 10 |
| 29 | Horn | 10 |
| 30 | Right low beam | 15 |
| 31 | Left low beam | 15 |
| 32 | Right high beam | 15 |
| 33 | Left high beam | 15 |
| 34 | Air conditioning | 50 |
| 35 |
|
50 |
| 36 | Cooling fan | 50 |
| 37 | ABS system, vehicle stabilization system | 30 |
| 38 | Heated rear window | 50 |
| 39 | Power seats | 30 |
| 40 | headlight washer | 30 |
| 41 | - | - |
| 42 | - | - |
| 43 | Preventive seat belts | 30 |
| 44 | Fuses: "PSB", "H-LP CLN", "PP / SEAT", "RR DEF", "ABS NO.2", "FAN MAIN", "ABS NO.1", "HTR", "RR FOG "," RR DOOR RH "," RR DOOR LH "," FUEL OPN "," FR FOG "," OBD "," STOP "," TI & TE "," A / C "," PWR "," DOOR NO.2 "," S / ROOF "," GAUGE NO.2 "," POWER "," P / SEAT " | 120 |
| 45 | - | - |
| 46 | - | - |
| 47 | - | - |
| 48 | Launch system | 30 |
| Relay | ||
| R1 | VSC # 2 | |
| R2 | VSC # 1 | |
| R3 | Cooling fan | |
| R4 | Brake light or Rear Fog lamps | |
| R5 | Starter (ST) | |
| R6 | Ignition (IG2) | |
| R7 | Air Conditioning Compressor Clutch (A / C) | |
| R8 | Starter (ST CUT) | |
| R9 | Heated rear window | |
Car Body
Location of components: 1. Front left power window control unit, 2. Right front power window control unit, 3. Sunroof control unit, 4. Distribution block No. 6, 5. Seat belt control unit, 6. Ground clearance control unit, 7. Audio amplifier, 8 . Central locking receiver, 9. Rear curtain relay, 10. Right rear power window control unit, 11. Tire pressure monitoring system aerial and receiver, 12. Rear left power window control unit
