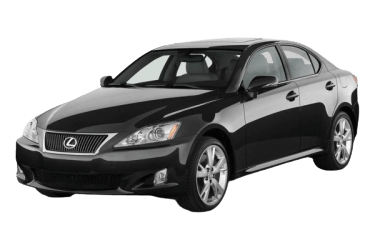

The second-generation Lexus IS (XE20) was produced from 2005 to 2013, receiving two major mid-cycle updates over its production run. Compared to its predecessor—which shared its platform with the Toyota Altezza sports sedan—the XE20 generation was noticeably larger, more substantial, and fully aligned with Lexus premium luxury standards. A 2008 refresh brought subtle exterior and interior styling tweaks alongside revised suspension tuning. A second update in 2010 introduced high-intensity discharge (HID) headlights with integrated LED daytime running lights (DRLs), as well as redesigned rear combination light clusters.
This article provides fuse box diagrams, relay assignments, and component locations for second-generation Lexus IS 250, IS 300, and IS 350 (XE20 series; chassis codes GSE20 / GSE21 / USE20) models produced from 2005 through 2013 (both left-hand drive and right-hand drive variants).
Engine Compartment
Component locations: 1. Fuse Box No. 1, 2. Engine Control Module (ECM), 3. Headlight washer relay, 4. Gasoline models: Injector driver module (EDU), 5. Diesel models: Injector driver module (EDU), 6. Fuse Box No. 2, 7. Electronic Power Steering (EPS) ECU, 8. Glow plug relay, 9. Skid control ECU (VSC), 10. Relay box
General view of Fuse Box No. 1.
| Engine Compartment Fuse Box No. 1 Diagram (Location 1) | ||
|---|---|---|
|
||
| No. | Protected circuit | A |
| 1 | Ignition system | 10 |
| 2 | Multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI) | 10 |
| 3 | Headlight (right low beam) | 15 |
| 4 | Headlight (left low beam) | 15 |
| 5 | Headlight cleaner | 30 |
| 6 | - | - |
| 7 | Air conditioning system | 7.5 |
| 8 | Windshield wiper de-icer | 25 |
| 9 | Front fog lights, parking lights, windshield wipers | 30 |
| 10 | Headlights (high beam), horn | 25 |
| 11 | Sequential multiport fuel injection system (A/F sensor) | 15 |
| 12 | Sequential multiport fuel injection system (ETCS) | 10 |
| 13 | Charging system | 7.5 |
| 14 | Telephone system | 10 |
| 15 | Steering lock system | 25 |
| 16 | - | - |
| 17 | - | |
| 18 | - | |
| 19 | Headlight (high beam) | 20 |
| Headlight (high beam) | 15 | |
| 20 | Horn | 10 |
| 21 | Windshield washer | 20 |
| 22 | Front parking lights | 10 |
| 23 | Front fog lights | 15 |
| 24 | - | - |
| 25 | Fuel pump | 25 |
| 26 | Sequential multiport fuel injection system (EFI/SFI) | 25 |
| 27 | 20 | |
| Relays | ||
| R1 | (A/C COMP) Air conditioning compressor clutch | |
| R2 | (FAN NO. 1) Engine cooling fan | |
| R3 | (A/F) Air-fuel ratio sensor | |
| R4 | (IG2) Ignition system | |
| R5 | (ST CUT) Starter cut-off | |
| R6 | (FAN NO. 3) Engine cooling fan | |
| R7 | (F/PMP) Fuel pump | |
| R8 | (PANEL) Instrument panel illumination | |
| R9 | (BRK-LP) Stop lamps | |
| R10 | (FAN NO. 2) Engine cooling fan | |
| Engine Compartment Fuse Box No. 2 Diagram (Location 6) | ||
|---|---|---|
Representative photo of the fuse box. |
||
|
||
| No. | Protected circuit | A |
| 1 | Vehicle Dynamics Integrated Management (VDIM) | 25 |
| 2 | Heater | 25 |
| 3 | Hazard warning flashers and turn signal indicators | 15 |
| 4 | Fuses: “IG2”, “IGN”, “GAUGE” | 20 |
| 5 | Audio system | 30 |
| 6 | Fuses: “DOME”, “MPX-B” | 20 |
| 7 | Audio system | 30 |
| 8 | Headlights, front fog lights, parking lights, license plate lights, windshield wipers, horn, power door locks, power tilt and telescopic steering column, power windows, power seats, combination meter, Smart Access keyless entry system, outer mirror ECU, air conditioning, engine immobilizer | 10 |
| 9 | Interior lights, combination meter | 10 |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | Steering lock system, sequential multiport fuel injection system, fuses: “FR CTRL-B”, “ETCS”, “ALT-S” | 60 |
| 16 | Glow plug control module | 80 |
| 17 | Vehicle Stability Control (VSC), Vehicle Dynamics Integrated Management (VDIM) | 50 |
| 18 | Power door locks, Smart Access keyless entry system | 30 |
| 19 | - | - |
| 20 | Headlights (low beam) | 30 |
| 21 | Smart Access keyless entry system | 30 |
| 22 | Power door locks, fuse: “SECURITY” | 30 |
| 23 | Sequential multiport fuel injection system (EFI/SFI) | 60 |
| 24 | Electric Power Steering (EPS) | 80 |
| 25 | - | - |
| 26 | Fuses: “LH J/B-AM”, “E/G-AM”, “GLW PLG2”, “HEATER”, “FAN1”, “FAN2”, “DEFOG”, “ABS2”, “RH J/B-AM”, “GLW PLG1”, “LH J/BB”, “RH J/BB” | 150 |
| 27 | - | - |
| 28 | PTC heater | 50 |
| 29 | Fuses: “OBD”, “STOP SW”, “TI&TE”, “FR P/SEAT RH”, “RAD NO.3”, “ECU-IG RH”, “RH-IG”, “FR S/HTR RH”, “ACC”, “CIG”, “PWR OUTLET” | 80 |
| 30 | Vehicle Stability Control (VSC) | 30 |
| 31 | Rear window defogger | 50 |
| 32 | Engine cooling fan | 40 |
| 33 | 40 | |
| 34 | Heater / Air conditioning system | 50 |
| 35 | PTC heater | 50 |
| 36 | Headlight cleaners, front fog lights, parking lights, air conditioning system | 60 |
| 37 | Fuses: “S/ROOF”, “FR P/SEAT LH”, “TV NO.1”, “A/C”, “FUEL/OPEN”, “PSB”, “FR WIP”, “H-LP LVL”, “LH-IG”, “ECU-IG LH”, “PANEL”, “TAIL”, “MIR HTR”, “FR S/HTR LH” | 80 |
| 38 | - | - |
| Relays | ||
| R1 | Starter motor | |
| R2 | Gasoline models: PTC heater | |
| Diesel models: Engine cooling fan | ||
| R3 | Headlights | |
| R4 | Gasoline models: PTC heater | |
| Diesel models: Engine cooling fan | ||
| R5 | Rear window defogger | |
| Engine Compartment Relay Box Specifications (Location 10) | |
|---|---|
|
|
| No. | Protected circuit |
| R1 | Anti-lock brake system (ABS MOTOR 1) |
| R2 | Anti-lock brake system (ABS SOLENOID) |
| R3 | (DEICER) Windshield wiper de-icer |
| R4 | Anti-lock brake system (ABS MOTOR 2) |
Body Components
Component locations: 1. Moonroof ECU, 2. Junction connector, 3. Outer mirror control ECU (RH), 4. Mirror heater relay, 5. Door lock receiver, 6. Rear sunshade relay, 7. Smart Access certification ECU, 8. Audio system amplifier, 9. Seat belt pretensioner control ECU, 10. Intuitive parking assist ECU, 11. Outer mirror control ECU (LH)
Passenger Compartment
Component locations: 1. Fuse block (LHD), 2. Main body ECU (LHD), 3. Steering column ECU, 4. Hazard warning and turn signal flasher relay, 5. Engine immobilizer ECU, 6. A/C amplifier ECU, 7. Electronic Power Steering (EPS) ECU, 8. Skid control ECU (VSC), 9. Fuse block (RHD), 10. Main body ECU (RHD), 11. Network gateway ECU, 12. Double door lock ECU, 13. Junction connector, 14. SRS airbag ECU, 15. Shift lock control ECU, 16. Navigation and multimedia ECU, 17. Steering lock ECU, 18. Radar cruise control ECU, 19. Junction connector, 20. Adaptive Front-lighting System (AFS) ECU.
Representative photo of the fuse block.
| Passenger Compartment Fuse Box Diagram (LHD - Location 1) | ||
|---|---|---|
|
||
| No. | Protected circuit | A |
| 1 | Front left seat heater | 30 |
| 2 | Air conditioning system | 7.5 |
| 3 | Outside mirror heaters | 15 |
| 4 | Multi-information display | 10 |
| 5 | - | - |
| 6 | Fuel filler door opener | 10 |
| 7 | Intuitive parking assist | 7.5 |
| 8 | Seat belt pretensioners | 30 |
| 9 | Moonroof | 25 |
| 10 | Parking lights, license plate lights | 10 |
| 11 | - | - |
| 12 | Instrument panel illumination, air conditioning system, multi-information display | 7.5 |
| 13 | Rear fog lights | 7.5 |
| 14 | Cruise control, air conditioning system, electric power steering, rain sensor, auto-dimming rearview mirror, shift lock system, moonroof, tire pressure monitoring system (TPMS) | 10 |
| 15 | - | - |
| 16 | Climate-controlled front left seat (heating/ventilation) | 15 |
| 17 | Rear left power window | 20 |
| 18 | Power window regulator, front left power mirror | 20 |
| 19 | Smart Access keyless entry system | 7.5 |
| 20 | - | - |
| 21 | Automatic headlight leveling system | 7.5 |
| 22 | Charging system, headlight cleaners, rear window defogger, cooling fan, hazard warning and turn signals, back-up lamps, stop lamps, mirror heaters, rear sunshade, seat belt pretensioners, parking assist, cruise control, air conditioning system, PTC heater, windshield wiper de-icer | 10 |
| 23 | - | - |
| 24 | Windshield wipers | 30 |
| Passenger Compartment Fuse Box Diagram (RHD - Location 9) | ||
|---|---|---|
|
||
| No. | Protected circuit | A |
| 1 | Front right seat heater | 30 |
| 2 | Double door lock system | 15 |
| 3 | Diagnostic link connector (DLC3) | 7.5 |
| 4 | Stop lamps, multiport fuel injection system / sequential multiport fuel injection system (EFI/SFI), VDIM, shift lock system | 7.5 |
| 5 | - | - |
| 6 | Power tilt and telescopic steering column | 20 |
| 7 | - | - |
| 8 | Audio system | 10 |
| 9 | - | - |
| 10 | Combination meter | 7.5 |
| 11 | SRS airbags, Lexus Link system, cruise control, steering lock system, stop lamps, sequential multiport fuel injection system (EFI/SFI) | 10 |
| 12 | Clock, air conditioning system, audio system, multi-information display, outer mirror ECU, Smart Access keyless entry system, parking sensors, glove box light, center console light, multiplex network ECU | 7.5 |
| 13 | - | - |
| 14 | Cigarette lighter fuse (Lexus IS 250/300/350) | 15 |
| 15 | Auxiliary power outlet | 15 |
| 16 | - | - |
| 17 | Rear right power window | 20 |
| 18 | Power window regulator, front right power mirror | 20 |
| 19 | Smart Access keyless entry system | 15 |
| 20 | Seat belt pretensioners, parking sensors, Transmission Control Module (TCM), seat heaters, windshield wiper de-icer | 7.5 |
| 21 | Climate-controlled front right seat (heating/ventilation) | 15 |
| 22 | Power seats, Smart Access keyless entry system, All-Wheel Drive (AWD) ECU, outer mirror ECU, VDIM, Vehicle Stability Control (VSC), air conditioning system, seat belt pretensioners, power tilt and telescopic steering column, power windows, navigation system | 10 |
| 23 | - | - |
| 24 | - | - |
