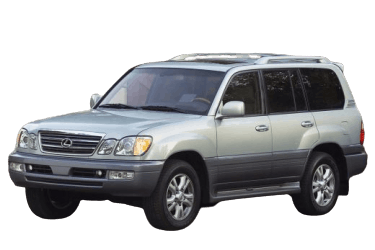

The Lexus LX 470 is the second generation of Lexus’s flagship luxury SUV. It is built on the 100-series Toyota Land Cruiser platform and was originally developed primarily for the North American market. Key exterior distinctions include restyled front lighting and fascia, complemented by a standard high-luxury interior. Power is delivered by a 4.7-liter V8 engine paired with a 4- or 5-speed automatic transmission. The full-size LX 470 features an Active Height Control (AHC) suspension tuned for superior ride comfort and provides seating for up to eight passengers.
The fuse box diagrams below apply to facelifted second-generation Lexus LX 470 (J100 series) models produced from 2002 to 2007.
In the Engine Compartment
Located adjacent to the battery.
Fuse box location overview.
| Lexus LX 470 Engine Compartment Fuse Allocation | ||
|---|---|---|
|
||
| No. | Circuit / Description | A |
| 1 | Anti-lock Brake System (ABS) | 40 |
| 2 | 50 | |
| 3 | Active Height Control (AHC) suspension | 50 |
| 4 | Multiport fuel injection / Sequential multiport fuel injection system (EFI / SFI) | 7.5 |
| 5 | Trailer lights | 30 |
| 6 | Heated outside rearview mirrors | 15 |
| 7 | Rear air conditioning system | 10 |
| 8 | Hazard flashers, turn signals | 15 |
| 9 | Charging system | 7.5 |
| 10 | Lexus Night View system | 20 |
| 11 | Front fog lights | 15 |
| 12 | Trailer lights | 30 |
| 13 | Headlight washers | 20 |
| 14 | Charging system | 10 |
| 15 | Instrument panel illumination | 7.5 |
| 16 | Trailer lights | 30 |
| 17 | Parking lights, taillights | 15 |
| 18 | ECU-B2 multiplex system circuits | 30 |
| 19 | Lexus Link system | 7.5 |
| 20 | Audio system | 30 |
| 21 | Multiport fuel injection / Sequential multiport fuel injection system (EFI / SFI) | 25 |
| 22 | Ignition system (IGN) circuits | 15 |
| 23 | Multiport fuel injection / Sequential multiport fuel injection system (EFI / SFI) | 10 |
| 24 | Horns | 10 |
| 25 | Right headlight (low beam) | 10 |
| 26 | Left headlight (low beam) | 10 |
| 27 | Right headlight (high beam) | 20 |
| 28 | Left headlight (high beam) | 20 |
In the Passenger Compartment
The passenger compartment contains two fuse boxes: one on the driver side and one on the passenger side.
Fuse box location overview.
| Passenger Compartment Fuse Allocation | ||
|---|---|---|
|
||
| No. | Circuit / Description | A |
| 29 |
|
15 |
| 30 | 15 | |
| 31 | Instrument panel illumination | 7.5 |
| 32 | Multiport fuel injection / Sequential multiport fuel injection system (EFI / SFI) | 7.5 |
| 33 | Rear window defogger | 20 |
| 34 | Active Height Control (AHC) suspension | 15 |
| 35 | Fuel heater | 20 |
| 36 | Power heater (PTC) | 7.5 |
| 37 | Active Height Control (AHC) suspension | 20 |
| 38 | Emission control system | 10 |
| 39 | Gauges and meters | 10 |
| 40 | Multiport fuel injection / Sequential multiport fuel injection system (EFI / SFI) | 10 |
| 41 | Navigation system | 10 |
| 42 | Double door lock system | 15 |
| 43 | Air conditioning system | 15 |
| 44 | Brake lights (stop lights) | 15 |
| 45 | On-Board Diagnostics (OBD-II) system | 7.5 |
| 46 | Idle speed control system | 7.5 |
| 47 | Power seats | 30 |
| 48 | Power door locks, power windows | 25 |
| 49 | Power moonroof | 25 |
| 50 | Rear window wiper and washer | 15 |
| 51 | Power door locks, power windows | 10 |
| 52 | Four-Wheel Drive (4WD) system | 20 |
| 53 | Windshield washer | 15 |
| 54 | Audio system | 10 |
| 55 | Interior lights | 10 |
| 56 | Variable Gear Ratio Steering (VGRS) system | 40 |
| 57 | Power windows | 20 |
| 58 | 20 | |
| 59 | Windshield wipers | 25 |
| 60 | Rear air conditioning | 10 |
| 61 | Seat heaters | 15 |
| 62 | Reverse lights (backup lights) | 10 |
| 63 | Gauges and meters | 7.5 |
| 64 | Multiport fuel injection / Sequential multiport fuel injection system (EFI / SFI) | 7.5 |
| 65 | Anti-theft system / Engine immobilizer | 7.5 |
| 66 | Power windows | 20 |
| 67 | 20 | |
| 68 | Trailer charging circuit | 30 |
| 69 | Power tilt and telescopic steering column | 20 |
| 70 | Rear air conditioning | 30 |
| 71 | Power seats | 30 |
