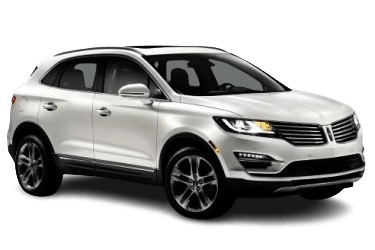

In this comprehensive guide, we examine the fuse box diagrams for the first-generation Lincoln MKC across model years 2013, 2014, 2015, 2016, 2017, 2018, and 2019.
Note: Fuses F12 (through 2017), F15, F16, F18, and F19 in the luggage compartment fuse panel power the 12V auxiliary power outlets (cigarette lighter).
Passenger Compartment Fuse Panel
The passenger compartment fuse panel is located under the glove box, behind the lower trim panel.
Glove box trim panel removal and panel access.
Passenger compartment fuse panel layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | Interior lighting (ambient, glove box, vanity mirror, map/dome, luggage compartment) | 10 A |
| 2 | Memory seat module | 7.5 A |
| 3 | Driver door unlock relay | 20 A |
| 4 | Not used | 5 A |
| 5 | THX amplifier / Subwoofer amplifier | 20 A |
| 6 | Not used | 10 A |
| 7 | Not used | 10 A |
| 8 | Not used | 10 A |
| 9 | Not used | 10 A |
| 10 | Power liftgate module logic / Keyless entry keypad | 5 A |
| 11 | Not used | 5 A |
| 12 | Climate control unit, Push-button ignition, Electronic gearshift module | 7.5 A |
| 13 | Instrument cluster, Steering column control module logic, Data Link Connector logic | 7.5 A |
| 14 | 2018–2019: Extended Power Module (supplies power to Occupant Classification System and Restraints Control Module) | 10 A |
| 15 | Data Link Connector (DLC) | 10 A |
| 16 | Not used | 15 A |
| 17 | Cellular transceiver module | 5 A |
| 18 | Not used | 5 A |
| 19 | Not used | 5 A |
| 20 | Not used | 5 A |
| 21 | In-cabin temperature and humidity sensor | 5 A |
| 22 | Through 2017: Occupant classification sensor | 5 A |
| 23 | Retained accessory power (moonroof logic, power inverter logic, driver power window switch) | 10 A |
| 24 | Central door locking system | 20 A |
| 25 | Power window, Power mirror (driver door) | 30 A |
| 26 | Power window, Power mirror (front passenger door) | 30 A |
| 27 | Panoramic roof / Moonroof | 30 A |
| 28 | THX audio system amplifier | 20 A |
| 29 | Power window (left rear) | 30 A |
| 30 | Power window (right rear) | 30 A |
| 31 | Not used | 15 A |
| 32 | Multi-function display, Radio frequency receiver, GPS module, Voice control module | 10 A |
| 33 | Active Noise Control module and Radio | 20 A |
| 34 | Run/Start bus feed (fuses 19, 20, 21, 22, 35, 36, 37, circuit breaker) | 30 A |
| 35 | Through 2017: Restraints Control Module (RCM) | 5 A |
| 36 | Continuously Controlled Damping (CCD) suspension, Auto-dimming rearview mirror, Rear heated seat module, Lane-Keeping System module | 15 A |
| 37 | Through 2015: Heated steering wheel, All-Wheel Drive (AWD) module | 15 A |
| 2016–2019: Heated steering wheel, All-Wheel Drive (AWD) module | 20 A | |
| 38 | Not used | 30 A |
Luggage Compartment Fuse Panel
Located on the right side of the luggage compartment, behind the access trim cover.
Luggage compartment fuse panel layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| F1 | Not used | - |
| F2 | Not used | - |
| F3 | Hands-free power liftgate control module | 5 A |
| F4 | Not used | - |
| F5 | Not used | - |
| F6 | Not used | - |
| F7 | Rear heated seat module | 30 A |
| F8 | Power liftgate module, Power cinch latch | 30 A |
| F9 | Front heated seat module | 20 A |
| F10 | Trailer tow module | 40 A |
| F11 | Climate-controlled seat module | 30 A |
| F12 | Through 2017: Instrument panel auxiliary power outlet (cigarette lighter) | 20 A |
| F13 | Not used | - |
| F14 | Power seat module | 30 A |
| F15 | 12V auxiliary power outlet (inside center console) | 20 A |
| F16 | 12V auxiliary power outlet (rear of center console) | 20 A |
| F17 | Not used | - |
| F18 | 12V auxiliary power outlet (luggage compartment) | 20 A |
| F19 | 110V AC power inverter outlet | 40 A |
Engine Compartment Power Distribution Box
Located on the driver side of the engine compartment, under the protective cover.
Engine compartment power distribution box layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Run/Start relay | |
| R2 | Horn relay | |
| R3 | Fuel pump relay | |
| R4 | Rear window washer pump relay | |
| R5 | Cooling fan relay 3 (750 W) | |
| R6 | Windshield wiper relay | |
| R7 | Cooling fan relay 5 (750 W) / Cooling fan relay 1 (600 W) | |
| R8 | Starter relay | |
| R9 | Not used | |
| R10 | Cooling fan relay 4 (750 W) | |
| R11 | A/C clutch relay | |
| R12 | Cooling fan relay 1 (750 W) / Cooling fan relay 3 (600 W) | |
| R13 | Cooling fan relay 2 | |
| R14 | Powertrain Control Module (PCM) relay | |
| R15 | Heated wiper park and rear window defroster relay | |
| R16 | Blower motor relay | |
| F7 | Anti-lock Brake System (ABS) module | 50 A |
| F8 | 30 A | |
| F9 | Fuel pump module | 20 A |
| F10 | Blower motor | 40 A |
| F11 | Run/Start relay coil | 30 A |
| F12 | Powertrain Control Module (PCM) relay | 40 A |
| F13 | Starter motor relay | 30 A |
| F14 | Memory seat module | 30 A |
| F15 | Windshield wiper and washer system | 30 A |
| F16 | Radiator cooling fan module | 25 A |
| F17 | Radiator cooling fan 1 (600 W) | 40 A |
| Radiator cooling fan 1 (750 W) | 50 A | |
| F18 | Radiator cooling fan 2 (600 W) | 40 A |
| Radiator cooling fan 2 (750 W) | 50 A | |
| F19 | Anti-lock Brake System (ABS) module (Run/Start) | 5 A |
| F20 | Through 2018: Horn | 20 A |
| 2019: Horn | 7.5 A | |
| F21 | Brake pedal position sensor | 10 A |
| F22 | Windshield washer and wiper control | 25 A |
| F23 | Run/Start relay coil | 5 A |
| F24 | Transmission Range Control Module (TRCM) | 20 A |
| F25 | A/C clutch relay | 10 A |
| F26 | Powertrain Control Module (PCM) relay coil | 5 A |
| F27 | Washer pump relay | 10 A |
| F28 | Generator (alternator) current sensor | 10 A |
| F29 | Rear wiper module, Rain sensor, Washer pump relay coil | 15 A |
| F30 | Through 2018: Left headlamp module | 20 A |
| F31 | Through 2018: Right headlamp module | 20 A |
| F32 | Powertrain Control Module (PCM) | 15 A |
| F33 | EVAP canister vent solenoid, Variable Camshaft Timing (VCT) solenoids, Universal Exhaust Gas Oxygen (UEGO) sensors, Heated Oxygen Sensors (HO2S / catalyst monitor), EVAP canister purge valve | 15 A |
| F34 | A/C clutch control relay coil, Active Grille Shutters, Fan control relay coil, Variable A/C compressor control valve, Engine charge air bypass valve solenoid | 15 A |
| F35 | Ignition coils | 15 A |
| F36 | Not used | - |
| F37 | Not used | - |
| F38 | 2017–2019: Voltage Quality Module (VQM) Run/Start feed (Auto Start-Stop models) | 15 A |
| F39 | Powertrain Control Module (PCM) ignition power feed (Run/Start) | 5 A |
| F40 | Electronic Power Assist Steering (EPAS) module (Run/Start) | 10 A |
| F41 | 2017–2019: Extended Power Module (Run/Start) | 10 A |
| F42 | Blind Spot Information System (BLIS), Adaptive Cruise Control (ACC), Head-Up Display (HUD), Rearview camera | 10 A |
| F43 | Not used | - |
| F44 | Rear window defroster relay coil, Heated wiper park (2016–2019), Auxiliary electric transmission fluid pump Run/Stop feed (2017–2019 Auto Start-Stop models) | 5 A |
| F45 | Transmission Range Control Module (TRCM) (Run/Start) | 5 A |
| F46 | Rear window defroster relay, Heated wiper park (2016–2019) | 40 A |
| F47 | 2017–2019: Auxiliary electric transmission fluid pump B+ feed (Auto Start-Stop models) | 30 A |
| F48 | Not used | - |
