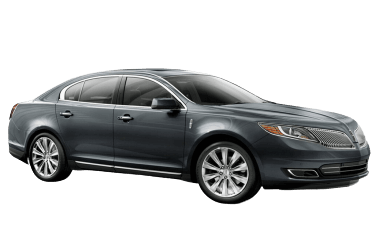

This guide provides comprehensive fuse and relay box diagrams for the Lincoln MKS (first generation / facelift; D3 platform): 2011, 2012, 2013, 2014, 2015, and 2016 model years.
Fuses 9, 20, and 27 in the engine compartment fuse box power the 12V auxiliary power outlets and cigarette lighter.
Engine Compartment Fuse Box
Located on the left side of the engine bay, behind the protective cover.
General view of the fuse box.
| Diagram | |
|---|---|
|
|
| No. | Relay |
| 10 | Empty |
| 11 | Heated rear window |
| 12 | Empty |
| 13 | Starter |
| 14 | Left cooling fan #2 |
| 15 | Fuel pump relay |
| 22 | 2015: Multi-contour seat module |
| 25 | Empty |
| 32 | 2016: Multi-contour seat module |
| 33 | Right cooling fan |
| 34 | Blower motor |
| 35 | Left cooling fan #1 |
| 36 | Empty |
| 37 | Empty |
| 38 | Empty |
| 44 | Empty |
| 52 | Empty |
| 53 | Empty |
| 54 | Empty |
| 55 | Windshield wipers |
| 66 | Powertrain Control Module (PCM) |
| 77 | Empty |
| 88 | Run/Start relay |
| 98 | A/C clutch |
| No. | Fuse |
| 1 | Empty |
| 2 | Empty |
| 3 | Empty |
| 4 | Wiper relay (30 A) |
| 5 | ABS pump (50 A) |
| 6 | Empty |
| 7 | Empty |
| 8 | Sunroof, power sunshade (20 A) |
| 9 | Second-row 12V power outlet / cigarette lighter (20 A) |
| 16 | Empty |
| 17 | Empty |
| 18 | Front blower relay (40 A) |
| 19 | Starter relay (30 A) |
| 20 | Console storage bin 12V power outlet (20 A) |
| 21 | Rear heated seat module (20 A) |
| 23 | Driver power seat memory module (30 A) |
| 24 | Empty |
| 26 | Rear window defroster relay (40 A) |
| 27 | Cigarette lighter (20 A) |
| 28 | Climate-controlled seats (30 A) |
| 29 | Cooling fan relay 1 (40 A) |
| 30 | Cooling fan relay 2 (40 A) |
| 31 | Cooling fan relay 3 (25 A) |
| 39 | Empty |
| 40 | Front left smart window motor (30 A) |
| 41 | Rear left smart window motor (30 A) |
| 42 | Passenger power seat (30 A) |
| 43 | ABS valves (20 A) |
| 45 | Rain sensor (5 A) |
| 46 | Empty |
| 47 | Empty |
| 48 | Empty |
| 49 | Empty |
| 50 | Heated mirrors (15 A) |
| 51 | Empty |
| 56 | Empty |
| 57 | Left High-Intensity Discharge (HID) headlamp (20 A) |
| 58 | Alternator sense (A-line) (10 A) |
| 59 | Brake On/Off (BOO) switch (10 A) |
| 60 | Empty |
| 61 | Empty |
| 62 | A/C clutch (10 A) |
| 63 | Empty |
| 64 | 2015–2016: Multi-contour seats (15 A) |
| 65 | Fuel injectors / fuel pump (30 A) |
| 67 | Mass Air Flow (MAF) sensor, Oxygen sensor heaters, Canister vent solenoid, Variable Camshaft Timing (VCT) solenoid valves, Canister purge solenoid (20 A) |
| 68 | Ignition coils (20 A) |
| 69 | Vehicle Power (VPWR) #1 (PCM) (20 A) |
| 70 | Fan control relay coils (1–3), A/C clutch, Auxiliary transmission warming, Variable-displacement A/C compressor, Turbocharger wastegate control, AWD module, Electronic compressor bypass valve, PCV heater (15 A) |
| 71 | Empty |
| 72 | Empty |
| 73 | Empty |
| 74 | Empty |
| 75 | Empty |
| 76 | Empty |
| 78 | Right High-Intensity Discharge (HID) headlamp (20 A) |
| 79 | 2011–2015: Adaptive Cruise Control (ACC) system (15 A) |
| 80 | Empty |
| 81 | Empty |
| 82 | Empty |
| 83 | Empty |
| 84 | Empty |
| 85 | Empty |
| 86 | Canister vent solenoid / Powertrain Control Module (PCM) keep-alive power and relay (7.5 A) |
| 87 | Run/Start relay (5 A) |
| 89 | Power Steering Control Module (PSCM) / Front blower relay coil (5 A) |
| 90 | Powertrain Control Module (PCM) run/start (10 A) |
| 91 | Adaptive Cruise Control (ACC) (10 A) |
| 92 | ABS, Adaptive headlamps (10 A) |
| 93 | Rear window defroster relay (5 A) |
| 94 | Passenger compartment fuse box run/start feed (30 A) |
| 95 | Empty |
| 96 | Empty |
| 97 | Empty |
Passenger Compartment Fuse Box
Located under the dashboard on the driver side (left of the steering wheel), behind the access cover.
General view of the passenger compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating |
| 1 | Smart window motors (front left, rear right) | 30 A |
| 2 | Driver seat switch | 15 A |
| 3 | Smart window motor (front right) | 30 A |
| 4 | Demand lamps battery saver relay | 10 A |
| 5 | Audio amplifier, Active Noise Control module | 20 A |
| 6 | Empty | 5 A |
| 7 | Front left door module, Driver seat module logic, Keyless entry keypad | 7.5 A |
| 8 | Empty | 10 A |
| 9 | Electronic finish panel, SYNC® module, Radio Frequency Transceiver (RFT) module | 10 A |
| 10 | Wiper relay, Run/Accessory relay, Rain sensor sub-fuse | 10 A |
| 11 | Head-Up Display (HUD), Intelligent Access Module (IAM) logic | 10 A |
| 12 | Puddle lamps, Interior lighting, LED backlighting | 15 A |
| 13 | Right turn signals | 15 A |
| 14 | Left turn signals | 15 A |
| 15 | Reverse lamps, Stop lamps | 15 A |
| 16 | Right low-beam headlamp | 10 A |
| 17 | Left low-beam headlamp | 10 A |
| 18 | Push-button start switch, Brake-shift interlock, Keypad illumination, Passive Anti-Theft System (PATS) transceiver, PCM wake-up | 10 A |
| 19 | Audio amplifier | 20 A |
| 20 | Driver door lock motor coil and relay, All-lock motor coil and relay | 20 A |
| 21 | Empty | 10 A |
| 22 | Horn relay | 20 A |
| 23 | Instrument Cluster (IPC) and Steering Wheel Control Module logic | 15 A |
| 24 | Data Link Connector (DLC) / Steering wheel control module | 15 A |
| 25 | Trunk / Decklid release | 15 A |
| 26 | Push-button start switch | 5 A |
| 27 | Intelligent Access (IA) module | 20 A |
| 28 | Empty | 15 A |
| 29 | GPS module / Radio | 20 A |
| 30 | Front parking lamps | 15 A |
| 31 | Empty | 5 A |
| 32 | Master window and mirror switch, Smart window motors, Door lock switch backlighting, Power rear sunshade module | 15 A |
| 33 | Suspension control module | 10 A |
| 34 | Rear park assist module, Rear heated seat module, Auto high-beam / Lane Departure Warning module, Rearview camera, Blind Spot Information System (BLIS) module | 10 A |
| 35 | Head-Up Display (HUD) / In-cabin humidity sensor | 5 A |
| 36 | Heated steering wheel module | 10 A |
| 37 | Empty | 10 A |
| 38 | Moonroof switch and module | 10 A |
| 39 | High-beam headlamps | 15 A |
| 40 | Rear parking lamps | 10 A |
| 41 | Restraint Control Module (RCM), Occupant Classification System (OCS) sensor | 7.5 A |
| 42 | Empty | 5 A |
| 43 | Empty | 10 A |
| 44 | Empty | 10 A |
| 45 | Empty | 5 A |
| 46 | Climate control module | 10 A |
| 47 | Front fog lamps | 15 A |
| 48 | Circuit Breaker: Power rear windows / Front passenger power window | 30 A |
