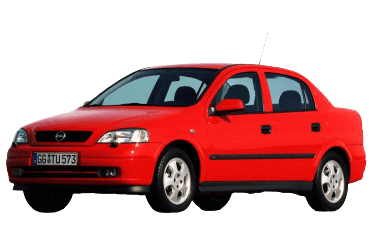

The Astra is a compact car designed and produced by the German manufacturer Adam Opel AG since 1991. It serves as the continuation of the Opel Kadett model line, which originated in 1962. In this article, we will examine the fuse box diagrams and relay assignments for the Opel / Vauxhall Astra (second generation; chassis code G; T platform) covering model years 1998, 1999, 2000, 2001, 2002, 2003, and 2004.
Below you will find power distribution box locations and photo references. Fuses for the “Cigarette lighter” and “Fuel pump” are highlighted in bold.
Underhood Fuse & Relay Boxes
The engine compartment houses two distribution units: a main fuse block and a relay box.
The photo above demonstrates an example layout.
| Underhood Fuse Box Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| F1 | Ignition switch | 60 |
| F2 | Passenger compartment fuse/relay box, low beam headlights, daytime running lights (DRL), anti-theft alarm system, engine immobilizer control unit, engine control module (ECM) | 60 |
| F3 | Instrument panel fuse/relay box | 60 |
| F4 | Radiator cooling fan motor (X12XE - without A/C) | 20 |
| F5 | Anti-lock braking system (ABS) | 60 |
| F6 | Engine management system (EMS) | 20 |
| F7 | Power steering control unit / pump | 80 |
| F8 | Radiator cooling fan motor (Gasoline - except X20XE with A/C) | 20 |
| Underhood Relay Box Designation | |
|---|---|
|
|
| Models Produced Before 2001 | |
| No. | Circuit / Relay Function |
| 1 | Unused |
| 2 | Radiator cooling fan relay (X16SZR, X18XE1, X20XEV) |
| 3 | Radiator cooling fan relay (X14XE, X16XEL) |
| 4 | Fuel pump relay |
| 5 | Unused |
| 6 | Radiator cooling fan relay |
| 7 | Headlight washer pump relay |
| 8 | Unused |
| Models Produced From 2001 Onward | |
| No. | Circuit / Relay Function |
| 1 | Unused |
| 2 | Radiator cooling fan relay (except Z12XE) |
| 3 | Fuel pump relay (except Z20LET / Z22SE) |
| 4 | Fuel pump relay (Z22SE / Z20LET) |
| 5 | Coolant auxiliary pump motor relay (Z20LET) |
| 6 | Radiator cooling fan relay |
| 7 | Headlight washer pump relay |
| 8 | Unused |
Passenger Compartment Fuse Box
The interior fuse box is located on the driver’s side under the dashboard, behind the glove compartment.
To access the fuses, squeeze the side retainers, lower the glove compartment fully, and detach it. Then turn the retaining screws 90° and remove the carrier. Specific fuse block configurations depend on the model year.
General view of the interior fuse panel on the Opel / Vauxhall Astra G.
Type 1
Vehicles manufactured from model year 2000 onward.
| Passenger Compartment Fuse Panel Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| F1 | Unused | — |
| F2 | HVAC blower / air conditioning, heated seats | 30 |
| F3 | Heated rear window (defroster) | 40 |
| F4 | Unused | — |
| F5 | Unused | — |
| F6 | Right headlight - low beam, headlight leveling control | 10 |
| F7 | Right front/rear side marker lamps, license plate light | 10 |
| F8 | Right headlight - high beam | 10 |
| F9 | Headlight washer pump | 30 |
| F10 | Horn | 15 |
| F11 | Central locking system | 20 |
| F12 | Front fog lights | 15 |
| F13 | Multi-info display (MID) | 5 |
| F14 | Windshield wiper motor, convertible power soft top | 30 |
| F15 | Power windows, power sunroof, power heated door mirrors, interior courtesy light, anti-theft alarm system | 5 |
| F16 | Rear fog light | 10 |
| F17 | Power windows | 30 |
| F18 | Headlight leveling control, license plate light | 5 |
| F19 | Audio unit, telematics/phone, multi-info display | 10 |
| F20 | Power windows | 30 |
| F21 | Automatic transmission shift lock solenoid, anti-theft alarm system, audio system, phone unit | 5 |
| F22 | Hazard warning lights / turn signals, multi-info display, trip computer, instrument cluster indicators | 15 |
| F23 | Anti-lock braking system (ABS), electro-hydraulic power steering (EHPS) | 10 |
| F24 | Left headlight - low beam, headlight leveling control | 10 |
| F25 | Left front/rear side marker lamps, license plate light | 10 |
| F26 | Left headlight - high beam | 10 |
| F27 | Convertible soft top actuator motor | 20 |
| F28 | Interior lamp circuit | 5 |
| F29 | Turn signals / hazard flasher, interior light switch, automatic transmission control unit (TCU) | 10 |
| F30 | Power sunroof | 30 |
| F31 | Semi-automatic convertible soft top actuator motor | 20 |
| F32 | Daytime running lights (DRL), key-in-ignition chime, anti-theft alarm system, engine immobilizer | 10 |
| F33 | Trailer harness connector - Terminal 30 (battery constant feed) | 20 |
| F34 | Audio system, multi-info display, phone unit | 20 |
| F35 | Transmission control unit (TCU), radiator cooling fan module, A/C control module | 10 |
| F36 | Heated seats, Opel / Vauxhall Astra cigarette lighter fuse | 15 |
| F37 | Heated seats | 20 |
| F38 | Brake lights (stop lamps), automatic transmission switch, diagnostic display, cruise control system | 10 |
| F39 | Automatic transmission, radiator cooling fan module, A/C system | 5 |
| F40 | Radiator cooling fan control module, air conditioning system | 5 |
| F41 | Heated exterior mirrors | 10 |
| F42 | Front passenger seat occupancy sensor, interior courtesy lamp | 5 |
| F43 | From 2002: Right Xenon (HID) headlight | 20 |
| F44 | From 2002: Left Xenon (HID) headlight | 20 |
| F45 | From 2002: Heated seats module | 5 |
| F46 | From 2002: Engine management system (EMS) | 15 |
| F47 | Auxiliary diesel heater unit | 20 |
| F48 | Convertible soft top mechanism actuator | 5 |
| F49 | Unused | — |
| F50 | Radiator cooling fan relay - 2.0L Diesel / 1.7L Diesel with A/C | 40 |
| 1 | Unused | |
| 2 | Horn relay | |
| 3 | High beam relay | |
| 4 | Rear window wiper relay | |
| 5 | Heated exterior mirror relay | |
| 6 | Front fog light relay | |
| 7 | Rear fog lamp relay | |
| 8 | Turn signal flasher relay | |
| 9 | Turn signal flasher relay | |
| 10 | Phone audio mute/interface module | |
| 11 | Wheel speed sensor signal converter module | |
| 12 | Windshield wiper motor relay | |
| 13 | Interior courtesy light relay | |
| 14 | Heated rear window relay | |
| 15 | Multifunction body control module (BCM) | |
Type 2
Vehicles manufactured up to model year 2000.
| Passenger Compartment Fuse Panel Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| F1 | Unused | — |
| F2 | HVAC blower / air conditioning, heated seats | 30 |
| F4 | Unused | — |
| F5 | Unused | — |
| F6 | Right headlight - low beam, headlight leveling control | 10 |
| F7 | Right front/rear side marker lamps, license plate light | 10 |
| F8 | Right headlight - high beam | 10 |
| F9 | Headlight washer pump | 30 |
| F10 | Horn | 15 |
| F11 | Central locking system | 20 |
| F12 | Front fog lights | 15 |
| F13 | Multi-info display (MID) | 7.5 |
| F14 | Windshield wiper motor | 30 |
| F15 | Power windows, power sunroof, power door mirrors | 7.5 |
| F16 | Rear fog light | 10 |
| F17 | Power windows | 30 |
| F18 | Headlight leveling control | 7.5 |
| F19 | Unused | — |
| F20 | Power windows | 30 |
| F21 | Automatic transmission shift lock solenoid, anti-theft alarm system, audio system | |
| F22 | Hazard warning lights / turn signals, multi-info display, trip computer, instrument cluster indicators | 15 |
| F23 | Anti-lock braking system (ABS), power steering control unit | 10 |
| F24 | Left headlight - low beam, headlight leveling control | 10 |
| F25 | Left front/rear side marker lamps, license plate light | 10 |
| F26 | Left headlight - high beam | 10 |
| F27 | Unused | — |
| F28 | Interior courtesy lamp | |
| F29 | Turn signal / hazard flasher module, interior courtesy lamp switch | 10 |
| F30 | Power sunroof | 30 |
| F31 | Unused | — |
| F32 | Daytime running lights (DRL), anti-theft alarm system | 10 |
| F33 | Trailer harness connector – Terminal 30 (battery constant feed) | 20 |
| F34 | Audio system, multi-info display | 20 |
| F35 | Transmission control unit (TCU), radiator cooling fan module, A/C system control unit | 10 |
| F36 | Heated seats, Astra G cigarette lighter fuse | 20 |
| F37 | Unused | — |
| F38 | Brake lights (stop lamps), transmission control unit (TCU), multi-info display, cruise control module | 10 |
| F39 | Transmission control unit (TCU), radiator cooling fan module, A/C control module | 7.5 |
| F40 | Radiator cooling fan control module, air conditioning system | 7.5 |
| F41 | Heated exterior door mirrors | 10 |
| 1 | Unused | |
| 2 | Horn relay | |
| 3 | High beam relay | |
| 4 | Rear window wiper relay | |
| 5 | Heated exterior mirror relay | |
| 6 | Front fog light relay | |
| 7 | Rear fog lamp relay | |
| 8 | Right turn signal flasher relay | |
| 9 | Left turn signal flasher relay | |
| 10 | Phone audio mute/interface module | |
| 11 | Unused | |
| 12 | Windshield wiper motor relay | |
| 13 | Unused | |
| 14 | Heated rear window relay | |
| 15 | Multifunction body control module (BCM) | |
