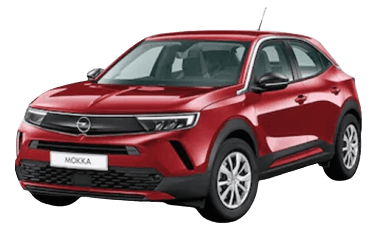

In the summer of 2020, Opel unveiled the second-generation Mokka subcompact crossover. It is based on Stellantis’s CMP platform, which also underpins the Corsa, Peugeot 208, Peugeot 2008, and DS 3 Crossback. The previous generation was built on GM’s Gamma II platform. Below is a comprehensive guide to the fuse box diagrams for the Opel Mokka B (second generation; CMP platform) covering the 2020, 2021, 2022, 2023, and 2024 model years.
Below you will find the location and layout photos of each power distribution module. Fuses for critical components like the “Cigarette Lighter / 12 V Power Outlet” and “Fuel Pump” are highlighted in bold.
Engine Compartment Fuse Box
The underhood power distribution center is located on the left side of the engine bay, adjacent to the 12 V battery. Unclip and remove the protective cover to access the fuses.
General overview.
| Diagram | |
|---|---|
|
|
| No. | Circuit / Component Protected |
| F1 | HVAC / Climate control system |
| F2 | Anti-lock Braking System (ABS) / Electronic Stability Program (ESP) |
| F3 | Cabin fuse box (right side of instrument panel) |
| F4 | Brake system control module |
| F5 | ICE models: Body Control Module (BCM) |
| F6 | Radiator cooling fan motor |
| F7 | Body Control Module (BCM) |
| F8 | EV: Climate control valve motor; ICE: Engine Control Module (ECM) / Fuel pump / Diesel fuel heater unit |
| F9 | EV: Electric Vehicle Control Unit (EVCU); ICE: NOx sensor / Diesel fuel water-in-fuel sensor |
| F10 | EV: Electric Vehicle Control Unit (EVCU); ICE: Engine Control Module (ECM) |
| F11 | EV: Electric Vehicle Control Unit (EVCU); ICE: Engine Control Module (ECM) |
| F12 | OBD-II diagnostic connector port |
| F13 | EV: Body Control Module (BCM) / HVAC control unit; ICE: Body Control Module (BCM) |
| F14 | ICE models: Intelligent battery sensor (IBS) |
| F15 | EV: E-Service disconnect link; ICE: Trailer control module unit |
| F16 | Right headlight module |
| F17 | ICE models: Engine Control Module (ECM) / NOx sensor module |
| F18 | Right high-beam headlight |
| F19 | Left high-beam headlight |
| F20 | EV: Electric Vehicle Control Unit (EVCU); ICE: Engine Control Module (ECM) / Fuel pump / Diesel heater unit |
| F21 | ICE models: Starter motor relay / solenoid |
| F22 | EV: Radiator cooling fan / Brake vacuum pump / EVCU; ICE: Automatic transmission control module (TCM) |
| F23 | EV: On-Board Charger (AC/DC) / DC/DC converter; ICE: Climate control system unit |
| F24 | ICE models: Climate control system module |
| F25 | EV: High-voltage (HV) battery interface module; ICE: Auxiliary trailer fuse module |
| F26 | EV: Drive motor controller / Inverter power module |
| F27 | Body Control Module (BCM) |
| F28 | ICE models: Selective Catalytic Reduction (SCR) AdBlue control unit |
| F29 | Windshield wiper motor |
| F30 | EV: Body Control Module (BCM); ICE: Diesel glow plug control unit |
| F31 | EV: Body Control Module (BCM); ICE: Climate control module |
| F32 | Steering column switch module / Steering wheel controls |
Passenger Compartment Fuse Boxes
There are two fuse boxes located inside the cabin.
Fuse Box No. 1
Located on the passenger side. Access it by opening the glovebox and removing the plastic access panel. On right-hand drive (RHD) models, this box is located under the dashboard on the driver's side.
Representative overview image.
| Diagram | |
|---|---|
|
|
| No. | Circuit / Component Protected |
| F1 | Heated rear window grid / Defroster |
| F2 | Heated exterior side mirrors |
| F3 | Power front window lifts |
| F4 | Power side mirror adjustment / Power-folding mirrors |
| F5 | Power rear window lifts |
| F10 | Heated front seats |
Fuse Box No. 2
Located behind the dashboard trim on the driver's side. On right-hand drive (RHD) models, this fuse panel is located behind the glovebox on the passenger side.
General overview.
| Diagram | |
|---|---|
|
|
| No. | Circuit / Component Protected |
| F1 | Radar sensor / Electronic Power Steering (EPS) unit / Clutch pedal switch |
| F3 | Wireless inductive phone charger / Keyless Entry & Start system |
| F4 | Audible warning horn |
| F5 | Windshield washer fluid pump |
| F6 | Windshield washer fluid pump |
| F7 | USB data/charging ports |
| F8 | Rear window wiper motor |
| F9 | Interior ambient and courtesy lighting |
| F10 | Central door locking system |
| F11 | Central door locking system |
| F12 | OBD-II diagnostic port module |
| F13 | EV: Climate control module / Radio control panel; ICE: Climate control system |
| F14 | Anti-theft alarm system / Opel Connect telematic module / Keyless entry |
| F15 | EV: Electronic gear selector module (E-shifter) / Headlight control module |
| F16 | EV: Low-voltage (12 V) network isolation device |
| F17 | Instrument cluster / Digital display unit |
| F18 | EV: Reserved for accessory / aftermarket connections |
| F19 | EV: Steering column control module / Steering wheel controls |
| F21 | EV: Engine Start/Stop ignition button; ICE: Ignition switch / Immobilizer system |
| F22 | Rain/light sensor / Driver assistance camera |
| F23 | Seat belt reminder (SBR) module / Dual-function brake light switch / Trailer module |
| F24 | Infotainment unit / Park Assist / Rearview camera system |
| F25 | Supplemental Restraint System (SRS) / Airbag control module |
| F27 | Anti-theft security alarm system |
| F28 | Trailer wiring module |
| F29 | Infotainment head unit |
| F31 | Cigarette lighter / 12 V power outlet |
| F32 | Heated steering wheel element |
| F33 | EV: Acoustic Vehicle Alerting System (AVAS) / Thermal pre-conditioning; ICE: Climate control / Automatic transmission module |
| F34 | Park Assist system module / Exterior mirror adjustment controls |
| F35 | Exterior lighting control module |
| F36 | Interior lighting module |
