Fuses Peugeot 3008 (T84), 2009–2017

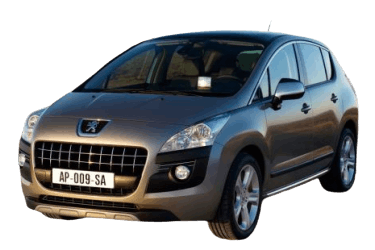

The compact five-seater Peugeot 3008 crossover was introduced in 2009. Combining elements of an SUV, minivan, and city car, the model features a spacious, comfortable, and ergonomic interior. This article provides detailed fuse box diagrams for the first-generation Peugeot 3008 (chassis code T84; PSA PF2 platform; EP/DV series engines) covering model years 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, and 2017.

Here you will find the locations and photos of the power distribution centers. Fuses for the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.

In the engine compartment

There are two power distribution centers here responsible for protecting the electrical circuits.

Fuse box

Located on the left side of the engine compartment.

Representative layout shown.

Diagram
No.	Description	A
F1	Engine Control Module (ECM) power supply, fuel injector and EGR solenoid valves (2.0 L HDi engine), fuel injectors (2.0 L HDi engine)	20
F2	Horn	15
F3	Front and rear windshield washer pumps	10
F4	Daytime Running Lights (DRL)	10
F5	EVAP canister purge solenoid valves, turbocharger wastegate control valve (1.6 L THP engine), crankcase ventilation heater (1.6 L THP), diesel fuel heater (1.6 L HDi)	15
F6	Data Link Connector (DLC/OBD-II), adaptive headlights, diesel particulate filter (DPF) additive pump, Distance Alert sensor, engine coolant level sensor, power mirrors	10
F7	Power Steering Control Module (PSCM), Automatic Transmission Control Module (TCM), adaptive headlight actuator	10
F8	Starter motor switch	20
F9	Clutch and brake pedal position switches	10
F10	Electronic engine management system components (Gasoline: ignition coils, solenoid valves, oxygen sensors, fuel injectors, heating components, electronic thermostat; Diesel: solenoid valves, heating components), fuel pump fuse	30
F11	A/C blower motor circuit	40
F12	Windshield wiper low/high speed circuit	30
F13	Power supply for Built-in Systems Interface / BSI (+ switched ignition)	40
F14	Boost pressure control solenoid valve	30
F15	Right high-beam headlight	10
F16	Left high-beam headlight	10
F17	Left low-beam headlight	15
F18	Right low-beam headlight	15
F19 *	Crankcase ventilation heater (1.6 L VTi), turbocharger boost solenoid valve (diesel models), engine coolant level sensor (diesel models)	15
F20	Electronic thermostat, fuel control solenoid valves, turbocharger boost pressure control solenoid valve (diesel models), engine coolant level sensor (diesel models)	10
F21	Engine cooling fan relay power supply, Valvetronic relay switch (1.6 L VTi), turbocharger cooling pump (1.6 L THP), Mass Air Flow (MAF) sensor (1.6 L HDi)	5
MAXI high-current fuses are located on the side of the panel
MF1	Not used	-
MF2	Trailer Control Module	30
MF3	Passenger compartment fuse box	50
MF4	Built-in Systems Interface (BSI)	80
MF5		80
MF6	Electronic Parking Brake (EPB)	30
MF7	Heated front seats	30
MF8	Headlight washer system	20

Power fuse panel

Mounted on top of the battery is a main distribution board consisting of high-amperage fusible links.

General view.

Diagram
No.	Circuit Assigned	A
1	Not used	-
2	Dual-function brake light switch	5
3	Battery Monitoring Unit (BMU) ECU	5
4	ABS / ESP solenoid valves	25
5	ABS / ESP Control Module	5
6	Automatic transmission and automated manual transmission ECU	15
7	Electro-hydraulic power steering pump	80
8	Engine cooling fan motor	60
9	Preheating system ECU (diesel models), Valvetronic actuator (1.6 L THP)	80/30
10	ABS / ESP hydraulic pump	40
11	Electrical protection switch module	100
12	Automated manual transmission hydraulic pump	30

In the passenger compartment

Located on the driver's side, behind the lower dashboard access panel.

General view of the Peugeot 3008 interior fuse box.

Diagram
No.	Description	A
F1	Rear window wiper motor	15
F2	Not used	-
F3	Airbag Control Module (SDM)	5
F4	Auto-dimming rearview mirror, air conditioning controls, safety switch module, rear multimedia system	10
F5	Front power windows	30
F6	Rear power windows	30
F7	Front and rear map lights, interior courtesy lighting, rear footwell lights, sun visor vanity mirror lighting, glove box lighting, center console storage lighting, 12 V luggage compartment power socket relay circuit	5
F8	Audio head unit / hands-free system, CD changer, multifunction display, Tire Pressure Monitoring System (TPMS), anti-theft alarm siren, security alarm control unit, telematics control unit	20
F9	Front and rear 12 V power sockets Peugeot 3008 cigarette lighter fuse	30
F10	Steering wheel thumbwheel switches / control stalks	15
F11	Ignition switch low-current circuit	15
F12	Trailer interface unit, rain/light sensor, power supply for fuses F32, F34, and F35	15
F13	Engine ECU, Airbag Control Module	5
F14	Instrument cluster, head-up display, power supply for fuse F33	15
F15	Central locking and deadlocking systems	30
F17	Heated rear window, power supply for fuse F30	40
SH	Transit / PARC shunt bridge	-
