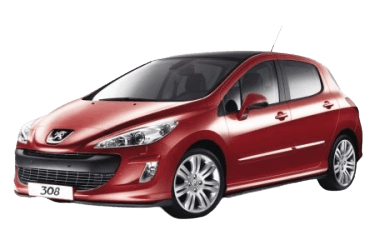

The first-generation Peugeot 308 (T7) was produced from 2007 to 2011, and from 2012 to 2015 (facelift). The most common body variants are the hatchback (4A/C), station wagon (4E/SW), and coupé (4B). In this article, we provide detailed fuse box diagrams for the Peugeot 308 (1st generation, chassis code T7; PSA PF2 platform) for model years 2007 through 2015.
Here you will find the locations and diagrams of the distribution boxes. The fuses for the “Cigarette lighter” and “Fuel pump” are highlighted in bold.
Engine Compartment
The power fuse module is mounted on a plastic bracket above the positive (+) battery terminal; the main fuse box is located to the right of the battery.
Main Fuse Box
Diagram.
| No. | A | Description |
| 1 | 30 | Petrol engine control components: ignition coils, solenoid valves, oxygen (lambda) sensors, fuel injectors, heating elements, fuel tank unit – Peugeot 308 fuel pump fuse, electronic thermostat; diesel engine: solenoid valves, heating elements. |
| 2 | 10 | Electronic thermostat, fuel supply control solenoid valves, boost pressure control solenoid valve (diesel engine), coolant level sensor (diesel engine). |
| 3 | 15 | Crankcase breather heater (1.4L 16V and 1.6L VTi 16V), EVAP canister purge valve (1.4L 16V and 1.6L VTi 16V), oxygen (lambda) sensors (petrol engine), air flap solenoid valves (diesel engine). |
| 4 | 15 | Right headlight (dipped beam). |
| 5 | 15 | Left headlight (dipped beam). |
| 6 | 10 | Left headlight (main beam). |
| 7 | 10 | Right headlight (main beam). |
| 8 | 20 | Headlight washer pump. |
| 9 | 15 | Horn. |
| 10 | 10 | Diagnostic connector (OBD), adaptive directional headlights, mass air flow (MAF) sensor (diesel engine), DPF additive pump (diesel engine). |
| 11 | 10 | Vehicle speed sensor circuit, ABS/ESP ECU. |
| 12 | 5 | Engine cooling fan relay power supply, Valvetronic relay (1.4L 16V and 1.6L VTi 16V), turbocharger cooling pump (1.6L THP 16V), mass air flow (MAF) sensor (1.6L HDi 16V). |
| 13 | 10 | Power steering ECU, automatic transmission ECU, coolant level sensor. |
| 14 | 30 | Windscreen wiper high/low speed control. |
| 15 | 25 | Starter motor / Ignition switch. |
| 16 | 30 | Turbocharger boost pressure solenoid valve. |
| 17 | 10 | Front and rear windscreen washer pump. |
| 18 | 40 | Built-in Systems Interface (BSI) power supply (+ ignition switch). |
| 19 | 40 | HVAC blower fan. |
| 20 | 20 | Engine ECU power supply, EGR solenoid valves and unit injectors (2.0L HDi 16V engine). |
| 21 | 15 | EVAP canister purge valve, turbocharger dump valve (1.6L THP 16V engine), crankcase breather heater (1.6L THP 16V), diesel fuel heater (1.6L HDi 16V). |
Power Fuse Panel
Located on the battery.
| Diagram | |||
|---|---|---|---|
| Pre-facelift models | |||
|
|||
| No. | A | Protected Circuit | |
| 1 | F1 | 15 | Transmission ECU (automated manual or automatic) |
| 2 | F2 | 15 | Diagnostic connector (OBD), daytime running lights (DRL) |
| 3 | F3 | 5 | Dual-function brake pedal switch |
| 4 | F4 | - | Spare |
| 5 | F10 | 80 | Electric power steering pump |
| 6 | F9 | 70 | Glow plug control unit (diesel engine) |
| 7 | F8 | 100 | Protection and Switching Unit (BSM) |
| 8 | F7 | - | Spare |
| 9 | F6 | 30 | Automated manual transmission hydraulic pump |
| 10 | F5 | 30 | Valvetronic motor (1.6L VTi 16V) |
| Facelift models | |||
|
|||
| 1 | - | Unused | |
| 2 | 5 | Dual-function brake pedal switch | |
| 3 | 5 | Battery charge status sensor (BECB) | |
| 4 | 25 | ABS/ESP solenoid valves | |
| 5 | - | Unused | |
| 6 | 15 | Transmission ECU (manual or automatic) | |
Passenger Compartment
Located on the driver’s side at the bottom of the dashboard. To gain access, turn the cover latch (1) and remove the cover (2).
Type 1
Pre-facelift models.
| Diagram | ||
|---|---|---|
|
||
| No. | A | Protected Circuit / Function |
| 1 | 15 | Ignition switch low-current circuit |
| 2 | 30 | Rear electric windows |
| 3 | 30 | Central locking and deadlocking |
| 4 | 30 | Front electric windows, power-folding door mirrors, panoramic sunroof blind |
| 5 | 15 | Steering column paddle shifters, alarm siren, alarm ECU |
| 6 | 20 | Audio system, radiotelephone, CD changer, multifunction display, tyre pressure monitoring system (TPMS) |
| 7 | 5 | Front and rear interior lights, reading lamps, sun visor vanity mirror lights, glove box light, removable torch |
| 8 | 15 | Multifunction display, amplifier, hands-free kit, rain/light sensor, parking assist ECU (Parktronic), trailer control unit, lane departure warning system |
| 9 | 30 | Front 12V socket, Peugeot 308 cigarette lighter fuse |
| 10 | 15 | Instrument cluster, passenger seatbelt and airbag warning panel, air conditioning, driver’s seat memory unit, rear passenger controls, driving school vehicle module |
| 11 | 5 | Engine control unit (ECU), airbags, automated manual transmission gear selector |
| 12 | 5 | Airbag and seatbelt pretensioner ECU |
| 13 | 10 | Clutch pedal switch and dual-function brake pedal switch, auto-dimming rear-view mirror, air conditioning, steering angle sensor, automatic transmission, Protection and Switching Unit |
| 14 | 15 | Rear windscreen wiper |
| 15 | 40 | Heated rear screen and door mirrors |
| 16 | - | PARC shunt (Showroom mode) |
| Additional separate fuses: | ||
|
||
| 36 | 30 | Heated seats |
| 37 | 5 | Trailer wiring module |
| 38 | 30 | Driver’s seat position memory unit |
| 39 | - | - |
| 40 | 30 | Audio amplifier, passenger seat position memory unit |
Type 2
Facelift models.
General view of the Peugeot 308 passenger compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Rear windscreen wiper | 15 |
| 2 | Central locking and deadlocking systems | 30 |
| 3 | Airbag and seatbelt pretensioner ECU | 5 |
| 4 | Clutch pedal switch, dual-function brake pedal switch, auto-dimming rear-view mirror, air conditioning, steering angle sensor, automatic transmission ECU, Protection and Switching Unit | 10 |
| 5 | Front one-touch electric windows, power-folding door mirrors, panoramic sunroof blind | 30 |
| 6 | Rear one-touch electric windows, trailer control unit | 30 |
| 7 | Front and rear interior lights, reading lamps, sun visor vanity mirror lights, glove box light, removable torch | 5 |
| 8 | Audio system, radiotelephone, CD changer, multifunction display, tyre pressure monitoring system (TPMS) | 20 |
| 9 | Front 12V socket, cigarette lighter fuse | 30 |
| 10 | Steering column paddle shifters, alarm siren, security alarm ECU | 15 |
| 11 | Ignition switch low-current circuit | 15 |
| 12 | Instrument cluster, passenger seatbelt and airbag warning panel, air conditioning, driver’s seat memory unit, rear passenger controls, driving school vehicle module | 15 |
| 13 | Engine control unit (ECU), airbags, automated manual transmission gear selector, trailer control unit | 5 |
| 14 | Multifunction display, amplifier, hands-free kit, rain/light sensor, parking assist ECU (Parktronic) | 15 |
| 15 | Central locking and deadlocking system | 30 |
| 17 | Heated rear screen and door mirrors | 40 |
| SH | PARC shunt (Showroom mode) | |
| Additional separate fuses: | ||
|
||
| 36 | Heated front seats | 30 |
| 37 | Driver’s seat position memory, instrument panel backlighting control | 5 |
| 38 | Driver’s seat memory unit | 30 |
| 39 | Trailer module power supply circuit | 30 |
| 40 | Hi-Fi audio amplifier | 30 |
General Arrangement
General location of electronic control units (ECUs) and components.
1. ABS ECU;
2. Battery;
3. Glove box lock actuator relay (central locking system);
4. Convertible roof folding control module (behind right-hand rear trim panel);
5. Diagnostic link connector (DLC / OBD);
6. Daytime running light (DRL) relay;
7. Driver’s door control module;
8. Left-hand tailgate control module;
9. Passenger door control module;
10. Right-hand tailgate control module;
11. ESP (Electronic Stability Program) control module;
12. Engine management system relay;
13. Engine control module (ECM / ECU);
14. Engine cooling fan control module;
15, 16, 17, 18. Engine compartment fuse boxes;
19, 20. Passenger compartment fuse boxes;
21. Warning chime / buzzer;
22. Lane departure warning system control module;
23. Multifunction control unit 1 (in passenger compartment fuse box 1);
24. Multifunction control unit 2 (integrated into engine compartment fuse box 1);
25. Multifunction control unit 3 (under-dash fuse/relay box 1);
26. Parking assist control module (behind left-hand rear trim panel);
27. Driver’s seat heating control module;
28. Passenger seat heating control module;
29. Steering column control module;
30. SRS airbag control module;
31. Transmission Control Module (TCM / ASM).
