Fuses and relays Renault Premium (DXi), 2006 - 2013

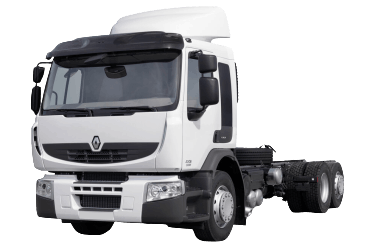

The Renault Premium is a heavy-duty tractor unit produced in several generations from 1996 to 2013 across various configurations. The most popular models were equipped with 380 hp dXi and 420 dCi engines.  This publication provides descriptions, block diagrams, and component layouts for Renault Premium (DXi-7, DXi-11) fuse and relay boxes. The fuse responsible for the cigarette lighter is highlighted in bold.

Fuse box designs and component assignments may vary depending on the model year and equipment level of your Renault Premium. Always verify component descriptions against your vehicle’s technical documentation or the diagram on the back of the protective cover.

Fuse and Relay Box

The main box is located inside the cab, on the passenger side of the dashboard, behind the access panel.

Type 1

Fuse box cover example

General view

Diagram
Description	No. - Rating
Main instrument display	F03 7.5 A
Safety relay and cab tilt interlock
Cab tilt pump motor power relay
Main instrument display	F04 5 A
Headlamp washer pump motor	F05 30 A
Main instrument display	F06 5 A
Tachograph
Vehicle Control ECU (VCU)	F07 5 A
Main instrument display	F08 5 A
Engine immobilizer ECU
Alarm system ECU
Central door locking ECU
Air Production Management ECU (APM)
Bodybuilder module ECU	F09 5 A
Climate control ECU	F10 30 A
Hydraulic retarder ECU	F11 10 A
Electric retarder ECU
Gear selector ECU	F12 15 A
Automatic transmission ECU
Lighting and hazard warning ECU	F13 20 A
Wiper delay timer relay
Windscreen washer pump motor
Windscreen wiper motor
Cigarette lighter	F14 15 A
Diagnostic socket (OBD)	F15 5 A
Vehicle data download socket
Selector control	F16 10 A
Inter-wheel differential lock warning lamp
Inter-wheel differential lock solenoid valve
PTO solenoid valve No. 1
PTO engagement solenoid valve No. 2
PTO engagement solenoid valve No. 3
Inter-axle differential lock solenoid valve
Main beam headlamp	F17 10 A
Electric horn	F18 10 A
Pneumatic air horn
Climate control ECU	F19 5 A
Radio / Audio unit	F20 10 A
Alarm system ECU
Central door locking ECU
ABS / EBS diagnostic / terminating connector	F21 20 A
Driver-side overhead interior light	F22 10 A
Passenger-side overhead interior light
Right door courtesy light
Driver reading spot lamp
Passenger reading spot lamp
Lower bunk reading light
Left door courtesy light
Left ambient lighting
Right ambient lighting
Upper bunk reading light
Driver step lighting
Passenger step lighting
Steered axle lock angle sensor	F23 5 A
Steered axle lock angle sensor
Air suspension ECU (ECAS)
Steered axle ECU
Fuel heater element No. 2	F24 20 A
Auxiliary power supply (hazard / warning equipment)	F25 10 A
Auxiliary power supply (lighting)
Equipment unlocked warning lamp
Auxiliary lighting warning lamp
15-pin trailer socket
Auxiliary power supply (ignition switch feed / +15)	F26 15 A
Driver window regulator motor	F27 20 A
Passenger window regulator motor
EBS brake control system	F28 20 A
Automatic transmission selector	F29 10 A
Onboard central control unit
Lighting and hazard warning ECU	F30 30 A
Cab climate control ECU	F31 20 A
Alarm system ECU
Auxiliary water/coolant heater
Auxiliary air heater
Climate control ECU
Auxiliary power supply (battery master switch feed)	F32 10 A
Cab tilt pump motor	F33 30 A
Onboard computer gateway ECU	F34 3 A
Lighting and hazard warning ECU	F36 10 A
24 V / 12 V voltage converter (15 A) for communications / audio	F37 10 A
Radio / Audio unit
Auxiliary warning lamp	F38 10 A
Work lamp / Searchlight
Vehicle Control ECU (VCU)	F39 15 A
Left heated mirror element
Right heated mirror element
Heated and power mirror relay
Heated windscreen relay
Engine Control Unit (ECU)	F40 30 A
Starter motor
Starter relay
Air intake pre-heater relay
Engine brake solenoid valve No. 1
Exhaust brake solenoid valve
Range change solenoid valve
Splitter solenoid valve
Fan clutch control solenoid valve
Starter motor	F41 15 A
Starter relay
Engine brake solenoid valve No. 1
Engine brake solenoid valve No. 2
Exhaust brake solenoid valve
Range change solenoid valve
Splitter solenoid valve
Air intake pre-heater relay	F42 10 A
Fan clutch control solenoid valve
24 V auxiliary socket	F43 15 A
Automatic transmission diagnostic socket
Rotating beacon No. 1	F46 15 A
Rotating beacon No. 2
Beacon power relay
Air Production Management ECU	F47 7.5 A
Hill-hold control	F48 3 A
EBS brake control system
Air suspension ECU (ECAS)	F49 5 A
ADR main power control ECU
Steered axle ECU	F51 5 A
Automatic transmission selector	F52 10 A
Engine immobilizer ECU
Emergency stop control
Vehicle Control ECU (VCU)
Ignition-switched power relay No. 1 (+15)
Ignition-switched power relay No. 2 (+15)
Ignition-switched power relay No. 3 (+15)
Accessory power relay No. 1 (+Acc)
Accessory power relay No. 2 (+Acc)
Alternator isolation relay (ADR)
Alternator field excitation resistor
Diagnostic socket (OBD)
Onboard central control unit	F54 10 A
Hydraulic retarder ECU	F57 10 A
Emergency stop control	F58 3 A
Alternator isolation relay (ADR)
Onboard ECU preparation / provision	F59 10 A
Hill-hold control
Reverse light relay
24 V / 12 V voltage converter for telematics	F61 15 A
24 V auxiliary socket	F63 15 A
15-pin trailer socket	F64 10 A
Instrument cluster backlighting	F66 10 A
Front grille illumination
Roof vent fan motor
Gear selector ECU	F67 10 A
Automatic transmission ECU
24 V / 12 V voltage converter (10 A) for communications / audio	F68 20 A
24 V / 12 V voltage converter (15 A) for communications / audio
24 V / 12 V voltage converter - 12 V and 24 V auxiliary sockets
Coolbox / refrigerator compartment
Cab refrigerator
Auxiliary 24 V power socket
ABS / EBS diagnostic / terminating connector	F70 10 A
Auxiliary power supply (ignition switch feed / +15)	F71 15 A
Main beam headlamps	F72 10 A
Dipped beam headlamp
Auxiliary power supply (D+ alternator signal / engine running)	F75 15 A
Right heated seat
Left heated seat
Service / Fleet management system	F76 10 A
Auxiliary air heater
Alternator isolation relay (ADR)
Auxiliary coolant heater solenoid valve
Auxiliary power supply (battery master switch feed)	F77 15 A
Lighting and hazard switch unit	F90 3 A
Rear fog lamp power relay
Main beam headlamp relay
Front fog lamp power relay
Night light switch relay
Fog lamp cut-off relay (with main beam active)
Roof clearance lamp No. 1	F91 10 A
Roof clearance lamp No. 2
Front left side / marker lights
Right side marker light No. 3
Right side marker light No. 4
Rear right side / marker lights
Left roof / marker lights
Left roof-mounted anti-glare marker lights
ADR main power control ECU
Front right side / marker lights	F92 10 A
Left side marker lights No. 1
Left side marker lights No. 2
Left parking lights No. 3
Left side marker lights No. 4
Rear left side / marker lights
Left roof / marker lights
Right roof-mounted anti-glare marker lights
Auxiliary power supply (right tail lamp)	F93 10 A
15-pin trailer socket
Auxiliary power supply (left tail lamp)	F94 10 A
15-pin trailer socket
Night lighting switches and controls	F96 3 A
Auxiliary power supply (night lighting)	F97 5 A
Main beam headlamps	F100 15 A
Front fog lamps
Main beam headlamp
Dipped beam headlamp
Front left fog lamp
Front right fog lamp
Front fog lamps	F101 10 A
Rear fog lamp
Rear fog lamp
15-pin trailer socket
Main instrument display	F102 10 A
Right main beam headlamp
Left main beam headlamp
Auxiliary power supply (reverse signal)	F103 10 A
Reverse brake interlock
Reverse lights
Reverse lights
External horn
15-pin trailer socket
Left stop / brake lights	F104 10 A
Right stop / brake lights
15-pin trailer socket
NOx sensor	F107 10 A
AdBlue delivery pump unit
Engine coolant bypass solenoid valve
Auxiliary heater unit	F108 20 A

Fuse No. 14 (15 A) is responsible for the cigarette lighter.

Relay Designation

Type 2

General view

Diagram
Description	No.
Tachograph clock	F1
Auxiliary power (ignition switch feed)	F1
7-pin trailer socket (ABS)	F1
Power supply for “SERVICE” and “STOP / DANGER” indicator lamps	F1
ABS / ASR solenoid valve relay (Front Left / Rear Right)	F1
ABS / ASR solenoid valve relay (Front Right / Rear Left)	F1
ABS safety relay	F1
ABS / ASR control unit	F1
Electric retarder cut-off relay	F1
Onboard computer	F1
Zero-speed relay	F1
Neutral position relay	F1
Right parking light	F2
Right side marker light	F2
Auxiliary power supply (lighting)	F3
Left parking light	F3
Left side marker light	F3
Trailer parking lights power supply	F4
Auxiliary power supply (lighting)	F5
Instrument cluster backlighting	F6
Switch backlighting	F6
Spare	F7
Front fog lamps	F8
Front fog lamps	F9
Right main beam headlamp	F10
Left main beam headlamp	F11
Left dipped beam headlamp	F12
Right dipped beam headlamp	F13
Auxiliary driving lamps / Spotlights	F14
Wiper drive motor	F15
Digital tachograph	F15
Brake light switch	F16
Transmission protection module “DELTA 2”	F16
Reverse lights	F16
Daytime running light (DRL) relay	F16
Engine oil level and coolant temperature module	F16
Brake pad wear indicator relay	F16
Instrument cluster indicator lamps feed	F16
Heated mirror and windscreen switch	F16
Radio / Audio unit	F17
Step-down voltage converter (telematics circuit)	F17
Air conditioning circuit	F18
Emergency switch “TBV” (ADR / RTMDR version)	F18
TBV control unit	F18
Automated clutch control unit	F18
Cab air heater(s)	F18
Fuel filter heater	F19
Direction indicators	F20
Sunroof motor	F20
Auxiliary power supply (battery master switch feed)	F21
Auxiliary heater “D1LC”	F22
Auxiliary heater “D1LCC”	F22
Auxiliary heater “Thermo 90”	F22
Driver interior light	F23
Passenger interior light	F23
Lower bunk ceiling light	F23
Upper bunk ceiling light	F23
Step lighting	F23
Side compartment lighting	F23
Driver window regulator motor	F24
Passenger window regulator motor	F24
Tachograph clock feed	F25
Warning buzzer	F26
Brake lights	F27
ABS / ASR ECU	F28
Left heated power mirror	F29
Right heated power mirror	F29
Heated windscreen timer relay	F29
Auxiliary tachograph power supply	F30
Headlamp leveling actuators	F30
Driver heated seat	F30
Passenger heated seat	F30
Cigarette lighter	F30
Step-down voltage converter (12 V outlet)	F30
Spare	F31
Wiper motor	F32
Windscreen washer pump	F32
Headlamp washer pump	F32
Diagnostic socket	F33
Air suspension ECU (6×2 / 6×4)	F33
Direction indicator flasher unit	F34
Radio memory constant power supply	F34
Onboard computer	F34
Auxiliary heater “D1LC”	F34
Auxiliary heater “D1LCC”	F34
Programmable auxiliary heater switch	F34
Auxiliary power supply (ignition switch feed)	F35
7-pin trailer socket (ABS)	F36
Left power door lock	F37
Right power door lock	F37
Spare	F38
Spare	F39
Spare	F40
Spare	F41
Automated clutch control unit	F42
Auxiliary power supply (zero-speed circuit)	F42
Control valve backlighting	F43
Rear work lamp (tractor unit)	F43
Front grille illumination	F43
Trailer +24 V power supply	F43
Cab tilt pump motor	F44
Battery master switch	F45
Central door locking module	F45
Engine pre-heater switch	F46
Fuel filter heater switch	F46
Speed limiter control unit	F46
Dot matrix display	F46
Cab air heater(s)	F46
Air suspension ECU (4×2)	F47
Air suspension remote control unit	F47
Rear axle air bellows pressure sensor (6×2)	F47
Spare	F48
ITC control unit	F49

Fuse No. 30 is responsible for the cigarette lighter.

Relay Modules

• Ignition-switched power relay RP1 (+15)
• Ignition-switched power relay R2 (+15)
• Oil pressure switch relay R4
• Parking light relay R5
• Comfort accessories relay R6
• Lighting relay R8
• Front fog lamp relay R9
• Front fog lamp relay R10
• Dipped beam headlamp relay R11
• Main beam headlamp relay R12
• Auxiliary driving lamp relay R13
• Brake light relay R14
• ABS / ASR solenoid valve relay (Front Right / Rear Left) R15
• ABS / ASR solenoid valve relay (Front Left / Rear Right) R16
• ABS safety relay R17
• Electric retarder cut-off relay R18
• Spare relay R19
• Heated mirror and windscreen relay R20
• Headlamp power relay R23
• Brake lining wear indicator relay R26
• Spare relay R40
• Fuel heater relay R41
• Spare relay R42
• Spare relay R44
• Cab tilt relay RP45
• Auxiliary heater relay R46
• Headlamp washer timer relay C753
• EASY acoustic warning device C757

Additional Components

The following relays and fuses are located outside the main box:

• Auxiliary heater relay
• Immobilizer / Anti-start relay
• Zero-speed relay
• Neutral position relay
• Zero-speed relay (automated clutch)
• ITC safety relay
• Hydraulic retarder cut-off relay
• Daytime running light relay
• Heated windscreen timer relay
• Starter relay
• Engine pre-heater relay
• 25 A Direction indicator and hazard flasher unit
• 25 A Auxiliary heating feed
• 25 A Radio feed
• 25 A Alarm system feed
• 25 A Central door locking feed

Battery-Mounted Fuse Box

A high-current main fuse block may also be located on the battery box cover.

Assignment
