Most electrical circuits on this vehicle are protected by fuses, while high-power electrical loads are switched via relays. The majority of protective components are located in fuse and relay distribution boxes within the passenger compartment and engine bay.

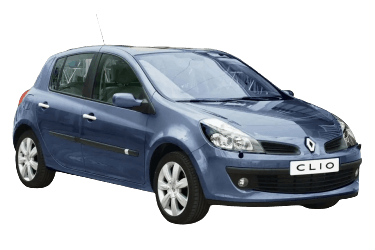

The information provided in these diagrams applies to 3rd generation Renault Clio (chassis code CR / BR; B platform) 3-door and 5-door hatchback models produced from 2005 through 2014.
In the Passenger Compartment
Main Fuse Box
Located on the driver's side at the lower section of the dashboard, protected by a plastic cover.
General overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| F1 | Turn indicators / Hazard lights | 30 |
| F2 | Automatic climate control module, auxiliary equipment, instrument cluster | 15 |
| F3 | Power mirror control module, interior lighting, vanity mirror lights | 7.5 |
| F4 | Data Link Connector (DLC / OBD-II), horn | 15 |
| F5 | Footwell lighting, luggage compartment lamp | 10 |
| F6 | Central locking system, driver power window motor | 25 |
| F7 | Driver power window master switch | 25 |
| F8 | ABS control module | 10 |
| F9 | Cigarette lighter / power socket | 15 |
| F10 | Blower motor control module (manual HVAC) | 20 |
| F11 | Blower motor control module (automatic HVAC) | 20 |
| F12 | HVAC control module, HVAC control panel, anti-theft alarm, audio system, passenger compartment fuse/relay box 2 (relays 6/7), heated seats, Body Control Module (BCM), rear window washer pump, steering column switch module, hands-free phone control module, windshield wiper motor | 15 |
| F13 | Brake light switch (brake pedal position sensor), passenger compartment fuse/relay box 2 (relay 3) | 10 |
| F14 | Sunlight sensor, power mirror control module, interior lighting, rain sensor, vanity mirror lights, windshield wipers | 5 |
| F15 | Rear window wiper motor | 20 |
| F16 | Immobilizer control module | 15 |
| F17 | Central locking system | 30 |
| F18 | Body Control Module (BCM) | 15 |
| F19 | Cabin temperature sensor fan | 5 |
| F20 | Front passenger power window motor | 25 |
| F21 | Rear power window diode | |
| 1 | Main ignition circuit relay | |
Auxiliary Fuses and Relays
An auxiliary cabin relay box is located behind the glove compartment, adjacent to the main fuse box. It houses the following components:
- Driver power window relay
- Brake light relay
- Rear power window relay 1
- Rear power window relay 2
- (20 A) Heated seats
- (15 A) Sunroof
- (25 A) Rear power windows
In the Engine Compartment
Distribution boxes are located on the right-hand side of the engine compartment.
Main Fuse Box
Overview of the main engine compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| F1 | ABS/ESP control module | 25 |
| F2 | Not used | - |
| F3 | Right high beam headlight | 10 |
| F4 | Left high beam headlight | 10 |
| F5 | HVAC control module, central locking, cruise control switch, rear right power window, ABS/ESP, multifunction display, right front/rear side marker lamps | 10 |
| F6 | Audio system, central locking, cigarette lighter, power mirror switch, driver power window switch, rear left power window, passenger power window switch, headlight leveling module, license plate light, parking assist system, left front/rear side marker lamps, traction control | 10 |
| F7 | Auxiliary heater relays 1/2, cruise control switch, Data Link Connector (DLC), electric power steering (EPS), xenon headlight control module, multifunction display, automatic transmission mode selection switch, gear selector illumination, Tire Pressure Monitoring System (TPMS) control module | 15 |
| F8 | Windshield wiper motor | 20 |
| F9 | Headlight leveling actuator (right), right low beam headlight | 15 |
| F10 | Headlight leveling actuator (left), left low beam headlight | 15 |
| F11 | A/C compressor clutch | 10 |
| F12 | Not used | - |
| F13 | Starter solenoid relay | 25 |
| F14 | Transmission Control Module (TCM) | 20 |
| F15 | Not used | - |
| F16 | Heated rear window (defogger) | 15 |
| F17 | Headlight washer pump relay | 15 |
| F18 | Transmission Control Module (TCM) | 5 |
| F19 | Not used | - |
| F20 | Reverse lights | 10 |
| F21 | Ignition coils | 20 |
| F22 | Engine Control Module (ECM) | 20 |
| F23 | SRS (airbag) control module | 10 |
| F24 | Engine Control Module (ECM), electronic steering column lock (ESCL) – keyless entry models | 10 |
| F25 | Front fog lights | 20 |
| 1 | Heated rear window relay | - |
| 2 | Engine management relay (except K9K764 engine) | - |
| 3 | Low beam headlight relay | - |
| 4 | Front fog light relay | - |
| 5 | Starter relay | - |
| 6 | Not used | - |
| 7 | Radiator cooling fan relay (high speed) | - |
| 8 | Radiator cooling fan relay (low speed) | - |
| 9 | Main ignition circuit relay 2 | - |
Auxiliary Fuse Panel
An auxiliary distribution panel is located in front of the battery.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| F1 | Engine management relay – K9K764 engine | 30 |
| F2 | Transmission hydraulic pump relay – D4F764 engine (Quickshift automated manual) | 30 |
| F3 | Radiator cooling fan motor – K9K766, D4F764 engines (automated manual) | 30 |
| F4 | Radiator cooling fan motor – K4M, K4J, D4F engines | 30 |
| F5 | Passenger compartment fuse/relay box feed | 50 |
| F6 | Auxiliary heater 1/2 | 80 |
| F7 | Not used | |
| F8 | ABS/ESP control module | 50 |
| F9 | Not used | |
| F10 | Not used | |
| F11 | Not used | |
| F12 | Xenon headlight relay | 10 |
| 1 | Headlight washer pump relay 1 | |
| 2 | Headlight washer pump relay 2 | |
| 3 | Xenon headlight relay | |
Battery Fuse Box
Mounted directly on the battery positive terminal.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| F1 | Engine bay fuse/relay box 2 (fuses F2–F8), engine bay fuse/relay box 3 (fuses F2/F3) | 350 |
| F2 | Dashboard fuse/relay box 1 (fuses F16–F18), engine bay fuse/relay box 2 (fuse F1) | 70 |
| F3 | Electric power steering (EPS) | 60 |
| F4 | Dashboard fuse/relay box 1 (fuses F1–F6/F20, relay 1) | 70 |
| F5 | Body Control Module (BCM) | 60 |
Component Locations
Location of electronic control units and major components on the Renault Clio 3.
|
|
| No. | Component |
| 1 | ABS/ESP control module |
| 2 | HVAC control module |
| 3 | Left side-impact sensor |
| 4 | Right side-impact sensor |
| 5 | Anti-theft alarm system (if equipped) |
| 6 | Automatic light sensor |
| 7 | Battery |
| 8 | Data Link Connector (DLC / OBD-II) |
| 9 | Engine Control Module (ECM) |
| 10 | Engine compartment fuse/relay boxes |
| 11 | |
| 12 | |
| 13 | |
| 14 | Passenger compartment fuse/relay boxes |
| 15 | |
| 16 | |
| 17 | |
| 18 | Xenon headlight control module |
| 19 | Glow plug control module |
| 20 | Horn |
| 21 | Immobilizer transponder coil (models without keyless entry) |
| 22 | Hands-free / keyless entry control module |
| 23 | Body Control Module (BCM) 1 – Functions: Air conditioning system, brake lights, central locking, deadlocking (RHD models), fog lights, hazard warning lights, rear window defogger, turn signals, instrument cluster, interior lighting, keyless remote receiver, outside temperature sensor, sunroof, windshield washer |
| 24 | Body Control Module (BCM) 2 – Functions: Central locking, fog lights, hazard warning lights, turn signals, rain sensor, temperature display, keyless remote receiver, sunroof, power windows |
| 25 | Ambient air temperature sensor (located in right door mirror assembly) |
| 26 | Parking assist control module |
| 27 | Rain/light sensor |
| 28 | Steering column switch module (SQUIB) |
| 29 | Airbag SRS control module |
| 30 | Hands-free phone control module |
| 31 | Transmission Control Module (TCM) |
| 32 | Tire Pressure Monitoring System (TPMS) control module |
| 33 | Yaw rate / lateral acceleration sensor |
