Most electrical circuits in these 3-door and 5-door hatchback and sedan models are protected by fuses. High-current components are connected via relays. Most protective devices are housed in power distribution boxes located in the passenger compartment and engine bay.

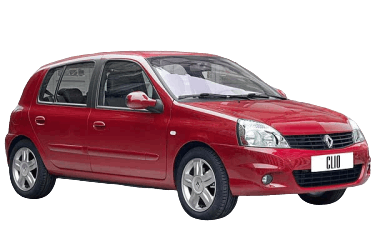

The information provided in these diagrams applies to second-generation Renault Clio (chassis codes BB, CB; B platform) 3-door and 5-door models produced from 1998 through 2012.
Passenger Compartment
Fuse Box
The power distribution box is located on the driver side at the end panel of the dashboard.
General view
| Diagram | |
|---|---|
|
|
| No. | Circuit Protected (Rating) |
| 1 | (15 A) Airbags, multifunction control module |
| 2 | (15 A) Automatic transmission, Diagnostic Link Connector (DLC), instrument cluster, multifunction control module, brake lights |
| 3 | (15 A) Air conditioning, rear window defogger, rear window wiper / washer, reverse lights |
| 4 | (20 A) Windshield wipers (1998–2000) |
| 5 | (10 A) Anti-lock braking system (ABS) |
| 6 | (10 A) Air conditioning control unit, multifunction control module |
| 7 | (15 A) Audio system, cigarette lighter, digital clock, heated rear window |
| 8 | (15 A) Horn |
| 9 | (10 A) LH headlamp - low beam |
| 10 | (10 A) RH headlamp - low beam |
| 11 | (10 A) RH headlamp - high beam |
| 12 | (10 A) LH headlamp - high beam |
| 13 | (20 A) Headlamps - low beam (twin headlamps) |
| 14 | (5 A) Daytime running lamps (1998–2000) |
| 15 | Spare |
| 16 | Spare |
| 17 | (10 A) Heated exterior mirrors |
| 18 | (20 A) Front fog lights |
| 19 | Spare (1998) |
| 20 | Spare |
| 21 | (5 A) Diagnostic Link Connector (DLC), instrument cluster (2000), multifunction control module |
| 22 | (15 A) Turn signals / hazard warning lights |
| 23 | (15 A) Rear fog lamps |
| 24 | Spare |
| 25 | Spare |
| 26 | (10 A) Instrument cluster illumination, LH front / rear side marker lamps |
| 27 | (10 A) Instrument cluster illumination, RH front / rear side marker lamps |
| 28 | (2 A) Engine immobilizer |
| 29 | (20 A) Audio system, digital clock, power exterior mirrors, interior lighting |
| 30 | (30 A) Heated rear window |
| 31 | (20 A) Central locking system |
| 32 | (30 A) Power windows |
| 33 | (20 A) Headlamp washers |
| 34 | (30 A) Heater / Air conditioning (1999) |
| 35 | (20 A) Heated seats |
| 36 | (30 A) Power windows |
| 37 | (20 A) Sunroof |
| 38 | Spare |
| 39 | Spare |
Relay Box
Located adjacent to the main fuse box.
| Diagram | |
|---|---|
|
|
| No. | Function / Description |
| 1 | Position lamps relay (with daytime running lights) |
| 2 | Daytime running lights (DRL) relay |
| 3 | RH fog lamp relay |
| 4 | Low beam relay (with daytime running lights) |
| 5 | Headlamp washer pump relay |
| 6 | Unused / Empty |
| 7 | Multifunction control module |
Engine Compartment
The power distribution box containing relays (1) and fuses (2) is located on the right side of the engine compartment.
General view
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Engine management system | 30 |
| 2 | Cooling fan motor relay (without A/C) | 30 |
| 3 | Engine management system (K4J / K4M / F4R736 engines) | 5 |
| 4 | Automatic transmission / automated manual transmission control module (D4F engine) | 5 |
| 5 | Engine management system | 15 |
| 6 | Automated manual transmission (D4F engine) | 40 |
| 7 | Cooling fan run-on relay / Cooling fan low-speed relay (with A/C) | 50 |
| 8 | Anti-theft system, lighting switch, multifunction control module | 60 |
| 9 | Anti-lock braking system (ABS) - Bosch 8.0 | 25 |
| 10 | Anti-lock braking system (ABS) - Bosch 8.0 | 50 |
| 11 | Ignition auxiliary relay, lighting switch, multifunction control module | 60 |
| 12 | Heater blower motor (with A/C) | 30 |
| Relay Modules | ||
|
||
| No. | Function / Description | |
| 1 | Cooling fan relay (with A/C) | |
| 2 | Fuel pump relay | |
| 3 | Hydraulic actuator pump relay (D4F engine, automated manual transmission) | |
| 4 | A/C compressor clutch relay | |
| 5 | Cooling fan run-on relay / Cooling fan low-speed relay | |
| 6 | Starter motor relay | |
| 7 | Engine control module (ECM) relay | |
| 8 | Heater blower motor relay | |
| 9 | Reverse light relay (D4F engine, automated manual transmission) | |
Component Layout
Overview of electrical component locations.
|
|
| No. | Component |
| 1 | Air conditioning control unit |
| 2 | SRS (Airbag) control module |
| 3 | Anti-theft alarm / central locking sensor (overhead console) |
| 4 | Battery |
| 5 | Diagnostic Link Connector (DLC) |
| 6 | Passenger compartment fuse and relay box |
| 7 | |
| 8 | Engine compartment fuse and relay box |
| 9 | |
| 10 | Auxiliary fuse (60 A), coolant heater relay – F9Q engines (up to 05/00), located near engine compartment fuse box 2 |
| 11 | Auxiliary fuse (70 A / 80 A), coolant heater relay – F9Q / K7K engines (from 06/00 onward), located near engine compartment fuse box 2 |
| 12 | Auxiliary fuse (80 A), power steering (select models), located near engine compartment fuse box 2 |
| 13 | Headlamp washer pump motor relay – intake resonator |
| 14 | Horn |
| 15 | Immobilizer transponder antenna coil – near ignition switch |
| 16 | Inertia fuel shut-off switch |
| 18 | Ambient air temperature sensor – passenger exterior door mirror |
| 19 | Transmission control module (TCM) |
| 20 | Vehicle speed sensor – transmission |
