The main electrical circuits of this French minivan are protected by fuses. High-current electrical consumers are connected via relays. Most protective components are located in the passenger compartment fuse box.

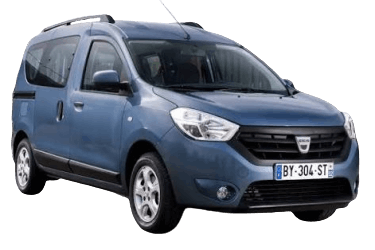

This diagram information applies to 1st-generation Renault / Dacia Dokker models (chassis code FE; B0 platform), 2012–2020 model years.
Engine Compartment
The fuse box is located on the right side of the engine compartment.
Dedicated fuse/circuit breaker for LPG operation.
General view of the fuse box.
Passenger Compartment
The fuse box is located on the left side of the dashboard, behind a plastic cover.
General view.
| Fuse Box Diagram | |
|---|---|
|
|
| No. | Protected Circuit / Component |
| A | Power rear windows |
| B | Power door mirrors |
| C | LPG shut-off valve, or combined LPG and petrol fuel circuit shut-off valve |
| 1 | Power front windows |
| 2 | Left high-beam headlight |
| 3 | Right high-beam headlight |
| 4 | Left low-beam headlight |
| 5 | Right low-beam headlight |
| 6 | Left side / position lights |
| 7 | Right side / position lights |
| 8 | Rear auxiliary power socket |
| 9 | Rear fog lights |
| 10 | Horn |
| 11 | Central door locking system |
| 12 | Electronic Stability Control (ESC) |
| 13 | Interior courtesy light |
| 14 | ABS / ESC module |
| 15 | Reversing lights, windshield wipers |
| 16 | Cruise control / speed limiter, power mirrors, seat belt warning, parking sensors |
| 17 | Daytime running lights (DRL) |
| 18 | Fuel pump |
| 19 | Fuel injection system |
| 20 | Airbag system |
| 21 | Heated seats |
| 22 | Power steering |
| 23 | Reserved for optional equipment |
| 24 | Turn signals / hazard warning lights |
| 25 | Body Control Module (BCM / passenger compartment ECU) |
| 26 | Body Control Module (BCM / passenger compartment ECU) |
| 27 | Steering column control module |
| 28 | Steering column control module |
| 29 | Reserved for optional equipment |
| 30 | Instrument cluster |
| 31 | Audio system / radio |
| 32 | Starter motor |
| 33 | Windshield wipers |
| 34 | Passenger compartment ventilation / blower motor |
| 35 | Cigarette lighter |
| 36 | OBD diagnostic connector |
| 37 | Heated door mirrors |
| 38 | Front fog lights |
