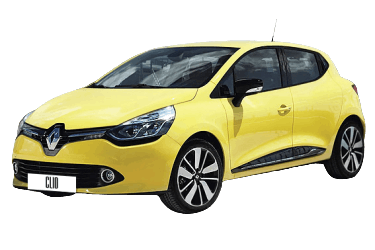

The fourth-generation Renault Clio was produced from 2012 onwards. Body styles include the five-door hatchback and estate/station wagon (Sport Tourer). Engine options comprise 0.9-liter, 1.1-liter, and 1.2-liter gasoline engines, alongside 1.5-liter diesel engines producing 75 hp and 90 hp. This guide provides detailed fuse and relay box diagrams for the Renault Clio IV (chassis code CH; B platform) across model years 2012 through 2020.
Below you will find fuse box locations, diagrams, and photographs. Dedicated sections highlight essential fuses, including those for the cigarette lighter and fuel pump.
In the Engine Compartment
The power distribution box is located on the left side of the engine compartment.
Box cover removal / access procedure.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating |
| Er1 | Starter relay | |
| Er1 | Reversing light relay | |
| Er2 | Alarm horn relay | |
| Er3 | Starter relay | |
| Er3 | Engine coolant fan relay | |
| Er3 | Reversing light relay | |
| Er4 | Engine management system main relay | |
| Er5 | A/C compressor clutch relay | |
| Er6 | Fuel pump relay | |
| Ef1 | Windscreen washer jet heater (5A) / Electronic control unit (7.5A) | 5A / 7.5A |
| Ef2 | Spare | |
| Ef3 | ABS/ESC stability control module | 25A / 30A |
| Ef4 | Heated rear window, heated door mirrors, F38/F47 fuse supply | 40A |
| Ef5 | Passenger compartment fuse and relay box (supply for F5, F23, F24, F25, F26, F27, F42, F44) | 20A / 70A |
| Ef6 | Passenger compartment fuse and relay box, auxiliary heater relay | 80A |
| Ef7 | ABS/ESC module, power supply for fuses F7 and F9 in passenger compartment fuse box | 50A |
| Ef8 | Spare | |
| Ef9 | Auxiliary heater | 80A |
| Ef10 | Heated windscreen (right side) | 40A |
| Ef11 | Heated windscreen (left side) | 40A |
| Ef12 | Starter motor | 30A |
| Ef13 | Automatic transmission control module (TCM) | 15A |
| Ef14 | Fuel injection ECU and engine circuit protection, F5 fuse power supply, fuel injectors, fuel level sender, fuel pump (fuel pump fuse), ignition coils | 25A |
| Ef15 | A/C compressor clutch relay, A/C compressor clutch | 15A |
| Ef16 | Engine cooling fan | 50A |
| Ef17 | Automatic transmission fluid cooler fan | 40A |
| Ef18 | Electric power steering pump | 80A |
| Ef19 | Spare | |
| Ef20 | Spare | |
| Ef21 | Spare | |
| Ef22 | Spare | |
| Ef23 | Engine management system, radiator fan control module, A/C compressor relay control | 15A |
| Ef24 | Spare | |
| Ef25 | Spare | |
| Ef26 | Spare | |
| D | A/C compressor clutch diode | |
In the Passenger Compartment
The fuse box is located on the lower driver side of the dashboard.
Unclip the protective cover to gain access.
| Renault Clio IV passenger compartment fuse box diagram | |
|---|---|
|
|
| No. | Description |
| 1 | Windscreen wipers, steering column combination switch |
| 2 | Front left daytime running light (DRL), right side light, left main beam, right dipped beam, front fog lights |
| 3 | Interior lighting, license plate lights, fog lights |
| 4 | Right side lights, rear position lights |
| 5 | Left side lights, front side lights |
| 6 | Dipped beam, front right daytime running light (DRL), left side lights, right main beam |
| 7 | Left dipped beam headlight |
| 8 | Right main beam headlight |
| 9 | Left main beam headlight, power steering system |
| 10 | Steering column controls, speed limiter / cruise control, auto-dimming rearview mirror, seatbelt reminder module, parking sensors, auxiliary heater, headlight leveling switch, heated rear window |
| 11 | Central locking, rain and light sensor, steering angle sensor, Engine Start/Stop button, rear power windows |
| 12 | Interior lighting, luggage compartment light, climate control system, power windows |
| 13 | ABS/ESC module, brake light switch |
| 14 | Steering column controls, brake light switch |
| 15 | Horn |
| 16 | Rear fog light |
| 17 | Renault Clio 4 cigarette lighter fuse |
| 19 | Radio and infotainment system, OBD-II diagnostic port |
| 19 | Power steering module |
| 20 | LPG system (GPL) |
| 21 | Airbag module, electronic steering column lock |
| 22 | Fuel injection, engine start, fuel pump |
| 23 | Brake light switch, rear windscreen wiper, Body Control Module (BCM / interior ECU) |
| 24 | Daytime running lights (DRL) |
| 25 | Headlight leveling control, heated rear window, climate control system (HVAC), parking sensors, cruise control, audio system, heated seats, seatbelt reminder |
| 26 | Automatic transmission control unit |
| 27 | Reversing lights, rear wiper, Body Control Module (BCM), automatic transmission module |
| 28 | Instrument cluster / Dashboard display |
| 29 | Steering column controls, alarm system |
| 30 | Climate control (A/C), steering column controls, Energy Management Module (ECU) |
| 31 | Windscreen wipers, reversing lights, Energy Management Module (ECU) |
| 32 | Central locking system |
| 33 | Turn signals / Hazard lights |
| 34 | Body Control Module (BCM), keyless entry/hands-free system |
| 35 | Interior lighting, power windows, climate control system, power door mirrors, brake lights, ABS module, engine ECU |
| 36 | Towbar / Trailer connector - if equipped |
| 37 | Heated seats - if equipped |
| 38 | Heated rear window - if equipped |
| 39 | Power door mirrors - if equipped |
