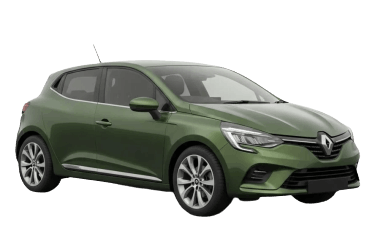

This article provides a detailed guide to the fuse diagrams for the fifth-generation Renault Clio (chassis code BF; CMF-B platform), covering model years 2019, 2020, 2021, 2022, 2023, and 2024, 2025, 2026.
Fuse No. 30 in the passenger compartment protects the electrical circuit for the cigarette lighter and 12V power sockets.
In the Engine Compartment
The fuse box is located on the left side of the engine compartment, adjacent to the battery.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | Not used | - |
| 2 | Anti-lock Braking System (ABS) | 30 |
| 3 | Fuel pump fuse (Renault Clio 5) | 20 |
| 4 | Engine Control Module (ECM) / Fuel injection system and engine circuits – ACTUATOR 1 | 15 |
| 5 | Engine Control Module (ECM) / Fuel injection system and engine circuits – ACTUATOR 2 | 15 |
| 6 | Engine Control Module (ECM) / Fuel injection system and engine circuits – ACTUATOR 3 | 15 |
| 7 | Engine Control Module (ECM) / Fuel injection system and engine circuits – ACTUATOR 4 | 15 |
| 8 | Engine Control Module (ECM) / Fuel injection system and engine circuits – ACTUATOR 5 | 15 |
| 9 | Windshield wipers | 30 |
| 10 | Windshield washer pump motor | 10 |
| 11 | Automatic transmission control module | 10 |
| 12 | Supplemental Restraint System (SRS) / Airbags | 10 |
| 13 | Manual transmission neutral position sensor / Reverse light switch (1109), Fuel heater relay control (450), Reverse light relay | 10 |
| 14 | Not used | - |
| 15 | Engine Control Module (ECM) | 5 |
In the Passenger Compartment
The interior fuse box is located at the lower section of the dashboard on the driver's side.
Unclip the protective trim panel to access the fuses.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| A | RELAY 1: Battery “+” terminal cut-off during engine cranking (1760) | 70 |
| B | Time-delayed main battery “+” supply relay (remains powered during start-up) (1762) | 70 |
| C | Not used | - |
| D | Not used | - |
| F | Heated rear window relay (235) | 40 |
| G | Horn relay (229) | 20 |
| H | Heated steering wheel relay (2499) | 20 |
| 4 |
|
15 |
| 5 | Tailgate lock motor (1322) / Rear door central locking system (138-139) / High-mounted center brake light (639) | 15 |
| 6 | Body Control Module (BCM) | 10 |
| 7 | Not used | - |
| 8 | Turn signals and hazard warning lights | 15 |
| 9 | Body Control Module (BCM) | 15 |
| 10 | Electronic Parking Brake (EPB) control module | 30 |
| 11 | Not used | - |
| 12 | Not used | - |
| 13 | Not used | - |
| 14 | Body Control Module (BCM) | 5 |
| 15 | Not used | - |
| 16 | Instrument cluster | 10 |
| 17 | Not used | - |
| 18 | Not used | - |
| 19 | Infotainment / Audio unit | 15 |
| 20 | Not used | - |
| 21 | Not used | - |
| 22 | Not used | - |
| 23 | Audio amplifier | 30 |
| 24 | Electronic Parking Brake (EPB) control unit | 30 |
| 25 | Left and right tail lights, brake lights | 10 |
| 26 | Not used | - |
| 27 | Power exterior mirrors | 5 |
| 28 | Trailer module | 20 |
| 29 | Horn | 20 |
| 30 | Cigarette lighter and auxiliary 12V power sockets (Renault Clio 5) | 15 |
| 31 | Luggage compartment 12V power outlet | 15 |
| 32 | Front and rear windshield washer pump | 10 |
| 34 | HVAC blower motor | 40 |
| 35 | Heated rear window / Defogger | 40 |
| 36 | Power tailgate / Liftgate control module | 40 |
| 37 | Not used | - |
| 38 | Not used | - |
| 39 | Power window module | 25 |
| 40 | Power window module | 25 |
| 41 | Power window module | 25 |
| 42 | Power window module | 25 |
| 43 | Not assigned | 5 |
