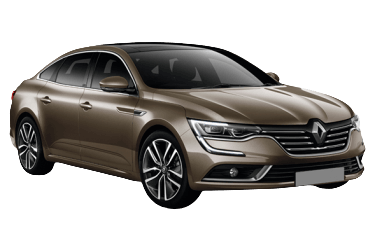

Talisman is a mid-size car from Renault. It replaced the Laguna model. The car was presented in 2015 at the Frankfurt Motor Show. Serial production since 2015 in sedan and station wagon bodies. It is built on the Common Module Family platform. In this material we will understand in detail the fuse diagrams of Renault Talisman (first generation; model codes LFD and KFD (Grandtour); CMF platform) 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 model years.
Here you will find the locations and photos of distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.
In the engine compartment
Here are three blocks responsible for protection of electrical circuits of the car.
Power fuses
The panel with them is located near the plus terminal of the battery.
General view.
Diagram
No. | Description | Amperage
F1. | Electric power steering (1232) | 60A
F2. | Cabin auxiliary heating (1113) | 100A
F3. | Fuse box and relay protection | 80A
F4. | ABS-ESP control unit (1094) | 40A
F5. | Fuse box and relay protection | 100A
F6. | Fuse box and relay protection | 100A
F7. | Starter, alternator | 300A
Fuse box No. 1
It is located on the left side of the engine compartment. To access it you need to lift it up and turn it over.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | engine heating flap (2232), Electronic control unit of the injection system (120) | 10A |
| 2 | Electronic control unit and relay of fuel injection system (preheating) | 15A |
| 3 | Electronic control unit of injection system | 15A |
| 4 | Electronic control unit for fuel injection system (120) and engine circuits | 10A |
| 5 | engine management | 15A |
| 6 | auxiliary heating relays 1 and 2 (1067-1068) on the circuit board (1067), automatic parking brake control and speed controller/limiter (2519), gearshift switch (129), transmission lever position indicator (1129), electronic control unit for automatic parking brake (1217), electronic control unit for parking control system (1222), inside rear view mirror (1340), unfastened seat belt alarm unit (1601), Electronic control unit for front camera (2236), speed limiter and regulator switch (1081), rear window heater relay (235) in the passenger compartment fuse box (260), left and right headlamp corrector motors (537-538) | 15A |
| 7 | air conditioner compressor clutch (171) | 15A |
| 8 | ABS and/or ESP electronic control unit (1094) | 30A |
| 9 | air conditioner refrigerant pump (2084) | 15A |
| 10 | Windscreen wiper motor (212) | 30A |
| 11 | Fuel level sensor, Fuel temperature sensor, petrol pump fuse | 20A |
| 12 | Starter | 30A |
| 13 | Electronic transmission control unit | 10A |
| 14 | electric power steering (1232), brake light switch (160), four-wheel drive system (1663) | 5A |
| 15 | Injection system control unit (120), remote self-adjusting controller control unit (2037) | 5A |
| 16 | electric steering column lock (1088), steering angle sensor (583), airbag and seatbelt pretensioner control unit (756) | 10A |
| 17 | manual transmission neutral position sensor/reverse light sensor (1109), fuel heater relay control (450), reverse light relay | 10A |
Fuse box No. 2
It is located under block No.1.
General view.
| Diagram | ||
|---|---|---|
|
||
| № | Panel 597-3 | |
| А | Engine remote start relay (2619) | - |
| B | High pressure fuel pump relay (2523) | - |
| D | Injector relay | - |
| E | Injector relay | - |
| № | Panel 777 | Amps |
| F1 | Spare | - |
| F2 | Spare | - |
| F3 | Spare | - |
| F4 | headlight washer pump relay | 20A |
| F5 | windscreen heater | 80A |
| F6 | Electronic control unit of the four-wheel steering system (1663) | 40A |
| F7 | Power supply fuses (#F57-#F58-#F59-#F60) in the passenger compartment | 70A |
| А | headlamp washer relay | - |
| № | Panel 753 | Amps |
| А | headlamp washer relay | - |
| B | Spare | - |
| № | Panel 597 | Amps |
| F1 | Electronic injection control unit (120) and automatic transmission parking pin mechanism (2372) | 30A |
| F2 | Automatic transmission electronic control unit | 15A |
| F3 | fuel heater with fuel water sensor (1866) and fuel injection system (120) | 30A |
| F4 | protection and switching unit (1337) | 40A |
| F5 | Electronic control unit for preheating system (257) and fuel injection system (120) | 70A |
| F6 | Electronic control unit for automatic transmission (119) | 50A |
| F7 | Engine cooling system electric fan (188) | 60A |
| F8 | Immersion heater control unit power supply (1550) | 70A |
| F9 | auxiliary heater interface unit (1550) | 70A |
| А | Reverse light relay | - |
| 450 | Fuel heater relay | - |
In the passenger compartment
The fuse box is located on the driver's side, behind the storage box. This drawer must be removed for access.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| A | Relay 1 ‘battery + terminal’ with power cut-off during start-up (1760) | 70A |
| B | Battery + terminal relay with time delay (without power cut-off during start-up) (1762) | 70A |
| C | Spare relay | - |
| D | Spare relay | - |
| F | Rear window heater relay (235) | 40A |
| G | Horn relay (229) | 20A |
| H | Steering wheel heating relay (2499) | 20A |
| 1 | Spare | - |
| 2 | Multimedia socket 2 (2468) in right-hand drive version | 10A |
| 3 | Driver and passenger door central locking (140-141), fuel filler flap lock motor (844) | 15A |
| 4 | Rear lights (172-173), electrically operated exterior mirrors (2230-2231), trailer connector switch module (1971), front direction indicator lamps (255-256). | 15A |
| 5 | Tailgate lock (1322), right and left rear door central locking (138-139), upper brake light (639) | 15A |
| 6 | Spare | - |
| 7 | Spare | - |
| 8 | Spare | - |
| 9 | Rear window wiper gearbox (211), rear fog lights (174-175) | 15A |
| 10 | Parking brake (1217) | 30A |
| 11 | Spare | - |
| 12 | Variable stiffness shock absorber system (543) | 15A |
| 13 | Power supply to fuses F3, F4, F5 and F6 in the passenger compartment block (260) | - |
| 14 | Spare | - |
| 15 | Spare | - |
| 16 | Instrument panel (247) | 10A |
| 17 | Horn relay (229) | 20A |
| 18 | Diagnostic connector (225), signalling (1838) | 10A |
| 19 | Trailer connector switching module (1971) | 20A |
| 20 | Interior central electronic switching module (BCM) | 10A |
| 21 | Telemetry system module (2152), audio system (261) | 20A |
| 22 | CD changer (1272). Multimedia socket (1877), Multifunctional screen (2402), Automatic parking brake and speed limiter/controller controls (2519) | 10A |
| 23 | Audio system amplifier (1917) | 30A |
| 24 | Parking Brake (1217) | 30A |
| 25 | Rear lights (172-173), Trailer connector switch module (1971) | 10A |
| 26 | Spare | - |
| 27 | Electric exterior mirrors (2230-2231) | 5A |
| 28 | Spare | - |
| 29 | Spare | - |
| 30 | Renault Talisman cigarette lighter fuse (101) or auxiliary equipment socket (506) | 15A |
| 31 | 12V Socket for auxiliary electrical equipment in the luggage compartment (1384) | 15A |
| 32 | Double-acting windscreen and rear window washer pump (677) | 10A |
| 33 | Electrical supply fuse (F2) in the passenger compartment (260) - in right-hand drive versions | - |
| 34 | cabin electric fan 1 (1156) | 40A |
| 35 | Rear window heater (235) | 40A |
| 36 | rear door | 40A |
| 37 | Spare | - |
| 38 | Fuel filler flap lock motor (844), electric motor for unlocking the passenger side storage compartment (2518) | 15A / 10A |
| 39 | opening element sounder (wac) (1920). climate control unit (419). | 10A |
| 40 | clutch position sensor (1057) in version with manual transmission, windscreen display (2400) in version with windscreen display, version 1 - 433 MHz receiving ring (1618) in version with hands-free door locking and unlocking system. | 7,5A |
| 41 | interior lighting and illumination lights | 7,5A |
| 42 | electrically operated right and left exterior mirrors (2230-2231) via multiplex door matrix control (1667), front door illumination lamps | 5A |
| 43 | ABS and/or trajectory stabilisation system (1094), brake light switch (160) | 5A |
| 44 | Spare | - |
| 45 | rain sensor and solar radiation intensity sensor (1415), cabin temperature sensor (1872), interior light bulbs (328-329), mirror illumination lamps in passenger sun visor (541), mirror illumination lamps in driver sun visor (588), interior light bulbs on rear cross member (300) | 7,5A |
| 46 | driver's door window lift motor (203) | 25A |
| 47 | passenger door window lift motor (204) | 25A |
| 48 | panoramic sunroof (304) | 30A |
| 49 | rear left-hand door window lift motor (202) | 25A |
| 50 | rear right-hand door window lift motor (201) | 25A |
| 51 | front right seat position memory system (2576) | 25A |
| 52 | rear seat folding switch | 15A |
| 53 | front left seat position memory system (2567): front left seat lumbar support adjustment electric motor 1 (2564), front left seat lumbar support adjustment electric motor 2 (2565). | 25A |
| 54 | windscreen wiper motor | 40A |
| 55 | windscreen wiper motor | 40A |
| 56 | Power supply to fuse F38 in the passenger compartment block (260) | - |
| 57 | rear passenger compartment fan | 30A |
| 58 | Rear left and right seat cushion heating elements (2423-2424), Rear left and right seat heated control unit (2120-2121) | 15A |
| 59 | Front left seat position memory system (2567), front right seat position memory system (2576), front left and right seat cushion heating elements (987-988), front left and right seat heating (985-986) | 20A |
| 60 | Heated steering wheel (2483), speed maintenance and airbag switch (689) | 7,5A |
| 61 | Power supply to relay No. 2 after ignition switch (ap2) (752) in the passenger compartment block (260-4) | - |
| 62 | Power supply to fuses (#F16-#F17-#F18-#F19-#F35) in the passenger compartment block (260-1) | - |
