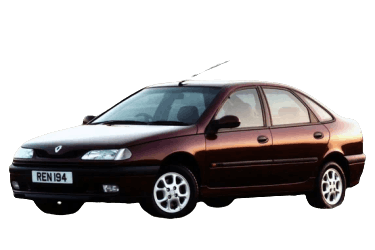

The first-generation Renault Laguna (chassis code X56; M2 platform) was produced from 1994 through 2001 in sedan, hatchback, and station wagon body styles with gasoline and diesel engine options.
This guide details the locations, circuit diagrams, and assignments of the first-generation fuse boxes.
Engine Compartment
The fuse box is located on the left side of the engine compartment, adjacent to the battery.
| Engine Compartment Diagram | |
|---|---|
|
|
| No. | Rating / Circuit Description |
| 1 | 40 A – Headlamp washer motor |
| 2 | 30 A – Anti-lock Braking System (ABS) |
| 3 | 30 A – Anti-lock Braking System (ABS) |
| 4 | 40 A – Radiator cooling fan motor (left) |
| 5 | 40 A – Radiator cooling fan motor (right) |
| 6 | 30 A – Fuel injection system / Glow plug preheating (70 A for diesel) |
| 7 | 70 A – Heated windshield relay |
| 8 | 60 A – Permanent battery power (+30) supply to ignition switch / immobilizer |
| 9 | 60 A – Switched ignition relay (+15) |
| 10 | 60 A – Permanent +12 V battery feed (passenger compartment) |
| 11 | 60 A – Center console electrical supply |
| 12 | 60 A – Load shedding / power cut-off relay |
Auxiliary relay modules are mounted separately.
Passenger Compartment
This fuse panel is located behind the lower left section of the dashboard.
Fuse panel layout.
| Passenger Compartment Diagram | |
|---|---|
|
|
| No. | Rating / Circuit Description |
| 1 | 25 A – Central locking system |
| 2 | 15 A – Instrument cluster / airbags / seat belt pretensioners / immobilizer decoder / anti-theft alarm / driver's seat memory |
| 3 | 25 A – Windshield wiper and washer motors |
| 4 | 15 A – Turn signals / hazard warning lights |
| 5 | 25 A – Windshield wiper motor dynamic braking relay |
| 6 | 10 A – Clock / ECU memory / audio system backup power / power mirrors / alarm siren |
| 7 | 10 A – Reversing lights (models with automatic transmission) |
| 8 | 15 A – Left headlamp high beam |
| 9 | 15 A – Right headlamp high beam |
| 10 | 25 A – Horn |
| 11 | 20 A – Radiator cooling fan motor |
| 12 | 10 A – Right side/parking light / lights-on warning chime / instrument cluster illumination / dimmer switch / day-night switching relay / bulb failure monitoring unit |
| 13 | 20 A – Rear window wiper motor / rear window defroster / heated windshield / reversing lights / lights-on warning chime / climate control panel |
| 14 | 20 A – Heated seats |
| 15 | 15 A – Stop lights / cruise control / turn signal and hazard flasher relay / bulb failure monitoring unit |
| 16 | 15 A – Left headlamp low beam / headlamp leveling system |
| 17 | 15 A – Right headlamp low beam |
| 18 | 5 A – Automatic transmission control module (TCM) |
| 19 | 5 A – Anti-lock Braking System (ABS) |
| 20 | 5 A – Speed-sensitive power steering module |
| 21 | 30 A – Switched ignition feed (+15) |
| 22 | 10 A – Left rear tail light / license plate illumination / bulb failure monitoring unit |
| 23 | 5 A – Mobile telephone power supply |
| 24 | 30 A – Sunroof motor |
| 25 | 10 A – Heated exterior mirrors |
| 26 | 2 A – Fuel injection / engine control unit (ECU) |
| 27 | 15 A – Interior dome and trunk lighting / child safety switch / anti-theft alarm |
| 28 | 25 A – Front fog lights |
| 29 | 25 A – Driver's seat memory module |
| 30 | 20 A – Audio system / climate controls / cigarette lighter |
| 31 | 10 A – Rear fog light |
| 32 | 10 A – Digital clock and display backlighting / anti-theft alarm / driver's seat memory module |
| 33 | 15 A – Adaptive / electronic variable damping suspension |
| 34 | 40 A – Power passenger seat |
| 35 | 40 A – Front passenger power window |
| 36 | 40 A – Driver door power window |
| 37 | 50 A – Air conditioning system blower motor |
| 38 | 40 A – Heated rear window (defroster) |
