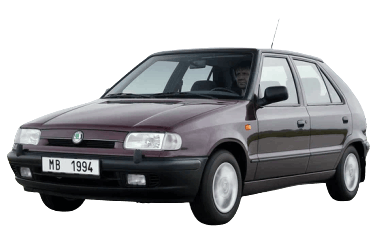

The Felicia was Škoda's first model developed in collaboration with the Volkswagen Group. The name pays homage to the company’s historic 1959 two-door convertible. Serving as the successor to the Favorit, the Felicia is essentially an extensive redesign of its predecessor. In this article, we provide a detailed breakdown of the fuse box diagrams and relay assignments for the Škoda Felicia (1st generation: 6U1 hatchback, 6U5 estate/station wagon) produced from 1994 to 2001.
Below you will find fuse box locations, photos, and wiring allocation tables. Fuses for the “Cigarette lighter” and “Fuel pump” circuits are highlighted in bold.
In the passenger compartment
The central junction block is located under the dashboard on the front passenger side. To access it, loosen the plastic mounting screw and swing the assembly downward.
Overview of the Škoda Felicia passenger compartment fuse box.
| Fuse Box Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Component Protected | Rating (A) |
| 1 | Fuel injection control unit power supply | 10 |
| 2 | Windshield and rear window wipers and washers | 20 |
| 3 | Heater blower fan, air conditioning system | 25 |
| 4 | Engine control unit (ECU) power supply | 15 |
| 5 | Right front fog light | 10 |
| 6 | Left front fog light, fog light indicator lamp | 10 |
| 7 | Right low-beam headlight | 10 |
| 8 | Left low-beam headlight, low-beam indicator lamp | 10 |
| 9 | Right high-beam headlight | 10 |
| 10 | Left high-beam headlight, high-beam indicator lamp | 10 |
| 11 | Right front and rear parking lights, "lights-on" warning buzzer | 7.5 |
| 12 | Rear fog lights, fog light indicator lamp | 7.5 |
| 13 | Heated rear window, rear defrost indicator lamp, heated exterior mirrors | 30 |
| 14 | Brake lights, hazard warning lights, ABS/EDS system | 15 |
| 15 | Cigarette lighter, interior lighting, digital clock | 15 |
| 16 | Headlight washer pump, central locking control unit | 15 |
| 17 | Radiator cooling fan, headlight flasher, horn | 25 |
| 18 | Electric power windows | 25 |
| 19 | Switch illumination (parking light switch OFF position), oil level sensor, parking light warning buzzer supply, instrument cluster warning lights (low oil pressure, handbrake, alternator charging system, heated rear window, airbags), driver-side power mirror, seat heating | 15 |
| 20 | Carburetor or fuel injection control unit supply, engine immobilizer, ignition coil module | 15 |
| 21 | Turn signals, reversing lights | 15 |
| 22 | Left front and rear parking lights, license plate lights, luggage compartment lighting, switch backlight illumination, instrument cluster illumination, cigarette lighter illumination, power mirror switch, parking light indicator lamp, audio system | 7.5 |
| Relay Module Assignments | ||
| R1 | High-beam headlights relay | |
| R2 | Front fog lights relay | |
| R3 | Rear fog lights relay | |
| R4 | Heated rear window relay | |
| R5 | Bosch Mono-Motronic injection system (fuel pump relay) | |
| R6 | Door-open ignition interlock / chime (AKIN, SPDP - selected models) | |
| R7 | Load relief relay (X-contact relay) | |
| R8 | Hazard warning flasher relay | |
| INT | Rear wiper/washer intermittent relay | |
| Ww | Front wiper intermittent relay | |
