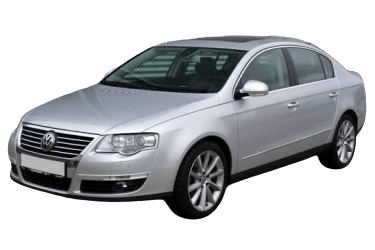

The VW Passat B6 represents the sixth generation of the Passat model range. Produced from 2005 through 2010 in both sedan and station wagon (Variant) body styles, it was offered with a variety of gasoline and diesel engines. The 4-door coupé based on the B6 platform was marketed as a standalone model, the Passat CC, and was manufactured from 2008 to 2012. This article provides detailed descriptions, component diagrams, and location photographs for the fuse boxes and relay panels on the Volkswagen Passat B6 and Passat CC (chassis codes 3C / 357; PQ35 / PQ46 platforms). In addition, the fuses responsible for the cigarette lighter and auxiliary 12 V power outlets are specifically highlighted.
General Component Layout
- Passenger-side instrument panel fuse box
- Pre-fuse / distribution panel near the battery
- Fuse / relay panel behind luggage compartment trim
- Driver-side instrument panel fuse box
- Under-dash relay carriers
- Engine compartment fuse and relay box
- High-power main pre-fuse panel
Passenger Compartment Fuse Panels
Driver-Side Instrument Panel Fuse Box
Located on the left end of the instrument panel, behind the protective end-cap cover.
| Diagram | |
|---|---|
|
|
| Type 1 — Production up to April 2008 | |
| No. | Description |
| 1 | 10 A Data Link Connector (DLC) |
| 2 | 5 A ASR/ESP OFF switch, AUTO HOLD switch |
| 3 | 5 A Power steering control module |
| 4 | 5 A Brake light switch |
| 5 | 10 A Headlight leveling dial, Headlight leveling motors, Left headlight control module |
| 6 | 5 A Trailer detection control module |
| 7 | 5 A Instrument cluster control module, CAN bus gateway (Data bus diagnostic interface) |
| 8 | 5 A Rear window sunblind switch (up to May 2005), Garage door opener control panel (up to May 2005), Rear sunblind control module (up to May 2005), Auto-dimming interior rearview mirror |
| 9 | 10 A All-wheel drive (AWD) control module |
| 10 | 5 A Motronic power relay, Engine Control Module (ECM) |
| 11 | 5 A Emergency data recorder switch, Taximeter mirror, Tachograph |
| 12 | 10 A Driver door control module, Right rear door control module (from May 2006) |
| 13 | 10 A Rotary light switch, Data Link Connector (DLC) |
| 14 | 5 A Electronic steering column lock control module |
| 15 | 5 A Vehicle electrical system control module (J519), Front interior lamp |
| 16 | 10 A Electronic ignition lock switch |
| 17 | 10 A Interior monitoring system transceiver module / Auxiliary heater, Rain and light sensor, Vehicle tilt sensor, Alarm horn |
| 18 | Not assigned |
| 19 | Not assigned |
| 20 | Not assigned |
| 21 | Not assigned |
| 22 | 10 A Mass Air Flow (MAF) sensor / 5 A Fuel pump relay 2 |
| 23 | 10 A Crankcase ventilation heating element (cold-climate spec) |
| 24 | 5 A / 20 A Reverse light switch, Multifunction switch, Automatic transmission control module (TCM), DSG mechatronic unit |
| 25 | 10 A Fuel injectors (up to Nov 2005) / 10 A Garage door opener system control panel (up to Apr 2006) |
| 26 | 10 A Rear window sunblind switch (from May 2005), Rear sunblind control module (from May 2005) |
| 27 | 5 A Fresh air blower relay, Climatronic HVAC control module |
| 28 | 20 A Trailer detection control module (from May 2006) |
| 29 | 20 A Trailer detection control module (left tail light, brake lights, turn signals) (up to Apr 2006) / Electronic parking brake (EPB) control module (from May 2006) |
| 30 | 15 A Trailer detection control module (up to Apr 2006) / Electronic parking brake (EPB) control module (from May 2006) |
| 31 | 15 A / 25 A Trailer detection control module (up to Apr 2006) / Fuel pump control module and relay (from May 2006) |
| 32 | 30 A Vehicle electrical system control module (Heated rear window circuit) |
| 33 | 20 A Power sunroof control module |
| 34 | 15 A Auxiliary fuel pump |
| 35 | 25 A / 30 A Headlight washer system relay, Headlight washer pump |
| 36 | 20 A Auxiliary heater relay (non-Climatronic models) |
| 37 | 25 A Heated front seat control module |
| 38 | 15 A Trailer detection control module (from May 2006) / Cigarette lighter, rear 12 V power outlet (up to Apr 2006) |
| 39 | 5 A / 40 A Fresh air blower control module (Climatronic), A/C control module |
| 40 | 5 A Rotary light switch |
| 41 | 15 A Cigarette lighter, rear 12 V power outlet (from May 2006) / 40 A Fresh air blower & relay (up to Apr 2006) |
| 42 | 15 A Windshield and rear window washer pump motor |
| 43 | 20 A Auxiliary heater control module |
| 44 | 20 A Auxiliary heater operating relay |
| 45 | 25 A 12 V power outlet |
| 46 | 5 A Two-way radio switch, Engine Start/Stop button |
| 47 | 15 A Taximeter, auxiliary equipment connector, interior lighting indicator |
| 48 | 20 A Battery charger connector (police vehicles, from May 2005) |
| 49 | Not assigned |
| Note: Depending on the production date, fuse #38 or #41 (15 A) powers the cigarette lighter. | |
| Type 2 — Production from May 2008 | |
| No. | Description |
| 1 | 10 A Rear window sunblind |
| 2 | 5 A ASR/ESP OFF switch, AUTO HOLD switch, ABS control module, Electronic parking brake (EPB) control module |
| 3 | 5 A Rotary light switch, Brake light switch, Engine oil level and temperature sensor, Power steering control module |
| 4 | 5 A Adaptive chassis control (DCC) module, Trailer detection control module, Adaptive front-lighting system (AFS) control module, Data Link Connector (DLC) |
| 5 | 10 A Switch and instrument cluster lighting dimmer, Headlight range control, Left headlight control module |
| 6 | 10 A All-wheel drive (AWD) control module |
| 7 | 5 A Instrument cluster control module, CAN bus gateway (Data bus diagnostic interface) |
| 8 | 10 A Right headlight control module, Right headlight leveling actuator |
| 9 | 10 A Airbag control module, Passenger seat occupant detection module, Passenger airbag OFF indicator |
| 10 | 10 A Tiptronic switch, Mass Air Flow (MAF) sensor, Fuel pump control module, Main power relay, Engine Control Module (ECM) |
| 11 | 5 A Emergency data recorder switch, Taximeter mirror, Tachograph |
| 12 | 10 A Driver door control module, Front passenger door control module |
| 13 | 10 A Rotary light switch, Data Link Connector (DLC) |
| 14 | 10 A Alarm siren |
| 15 | 5 A Vehicle electrical system control module (J519), Front interior lamp |
| 16 | 10 A Electronic ignition lock switch, Electronic steering column lock module |
| 17 | 5 A Electronic parking brake switch, ABS control module |
| 18 | 10 A Crankcase ventilation heating element (cold-climate spec) |
| 19 | 7.5 A Adaptive Cruise Control (ACC) module, Park Distance Control (PDC) module, Lane Assist module, Park Assist module |
| 20 | 5 A Garage door opener control panel (HomeLink) |
| 21 | 10 A Auto-dimming interior rearview mirror, Seat heater switch, A/C high-pressure sensor, Air quality sensor, Fresh air blower relay, Heated washer nozzles, HVAC control module, Voltage monitoring relay |
| 22 | 20 A Electronic parking brake (EPB) control module |
| 23 | 15 A Trailer detection control module |
| 24 | 20 A Electronic parking brake (EPB) control module |
| 25 | 20 A Trailer detection control module |
| 26 | 15 A Adaptive chassis control (DCC) module |
| 27 | 15 A / 20 A Fuel pump relay |
| 28 | 10 A Rear door control module, Central convenience control module |
| 29 | 25 A Heated rear seat control module |
| 30 | 20 A Power sunroof control module |
| 31 | 30 A 12 V to 230 V power inverter |
| 32 | 30 A Vehicle electrical system control module (Heated rear window) |
| 33 | 30 A Headlight washer system relay & pump |
| 34 | 25 A Heated front seat control module |
| 35 | 30 A Rear door control module |
| 36 | 15 A Seat lumbar support switch, Seat cushion tilt switch, Backrest adjustment switch |
| 37 | 10 A Compass magnetic sensor, Rain and light sensor, Vehicle tilt sensor, Rearview camera control module, Climatronic control module, Auxiliary heater remote receiver, Voltage monitoring relay |
| 38 | 40 A Fresh air blower relay & control module (Climatronic) |
| 39 | 15 A Multifunction switch (6-speed automatic), Transmission Control Module (TCM), Reverse light switch, DSG mechatronic unit |
| 40 | 15 A Secondary battery charging relay, Windshield washer pump, Rear window wiper motor |
| 41 | 20 A Cigarette lighter |
| 42 | 15 A 12 V auxiliary power outlet |
| 43 | 20 A Auxiliary heater control module (models with secondary battery) |
| 44 | 30 A Driver and front passenger door control modules |
| 45 | 20 A Auxiliary heater operating relay (models with secondary battery) |
| 46 | Not assigned |
| 47 | 10 A Telephone transceiver (Start-Stop models) |
| 48 | 5 A Instrument cluster control module (Start-Stop models) |
| 49 | Not assigned |
| Note: In Type 2 panels, fuse #41 (20 A) powers the cigarette lighter, while fuse #42 (15 A) powers additional 12 V outlets. | |
Passenger-Side Instrument Panel Fuse Box
Located on the right end of the instrument panel, behind the protective end-cap cover.
Type 1
Type 1 — Production up to April 2008.
| Diagram | |
|---|---|
|
|
| No. | Rating / Description |
| 1 | 5 A Compass magnetic sensor (from May 2005) |
| 2 | 5 A Electronic parking brake (EPB) control module, ABS control module |
| 3 | 5 A Compass magnetic sensor (up to Apr 2006), Park Distance Control (PDC) module |
| 4 | 5 A Adaptive Cruise Control (ACC) module |
| 5 | 10 A Right headlight control module (Xenon/HID headlights only) |
| 6 | 5 A Tiptronic shift switch |
| 7 | 5 A Adaptive front-lighting system (AFS) and range control module (Xenon/HID headlights only) |
| 8 | 5 A A/C high-pressure sensor, Engine oil level and temperature sensor |
| 9 | 10 A Passenger airbag OFF indicator, Airbag control module, Passenger seat occupant detection module |
| 10 | 5 A Fuel pump control module |
| 11 | Not assigned |
| 12 | 10 A Front passenger door control module, Right rear door control module (up to Apr 2006) |
| 13 | 10 A Park Distance Control (PDC) module (up to Apr 2006) |
| 14 | 5 A Rearview camera control module (from Nov 2007) |
| 15 | 5 A Climatronic / HVAC control module |
| 16 | 5 A Tiptronic shift switch |
| 17 | 5 A Electronic parking brake warning light, ABS control module |
| 18 | Not assigned |
| 19 | Not assigned |
| 20 | Not assigned |
| 21 | Not assigned |
| 22 | 30 A 12 V to 230 V power inverter |
| 23 | 30 A Rear door control module |
| 24 | 30 A Left rear power closing assist module (Variant/Wagon) |
| 25 | 30 A Right rear power closing assist module (Variant/Wagon) |
| 26 | Not assigned |
| 27 | 25 A Heated rear seat control module |
| 28 | 15 A Fuel pump control module (up to Apr 2006) |
| 29 | 30 A Driver and front passenger door control modules |
| 30 | 20 A Electronic parking brake (EPB) control module (up to Apr 2006), Central convenience control module (May 2006 – Oct 2006) |
| 31 | 20 A Electronic parking brake (EPB) control module (up to Apr 2006) / 15 A Fuel pump control module |
| 32 | Not assigned |
| 33 | 20 A 12 V power outlet (up to Apr 2006) |
| 34 | 15 A Fuel pump control module |
| 35 | 20 A Cigarette lighter (up to Apr 2006) |
| 36 | Not assigned |
| 37 | Not assigned |
| 38 | 15 A 12 V power outlet (from May 2006) |
| 39 | 10 A Heated seat adjuster, Climatronic control module, Secondary battery charging relay, Heated washer nozzles |
| 40 | 5 A Emergency data recorder (taxi spec, up to May 2005) |
| 41 | 15 A Taximeter, Taximeter mirror, Alarm status indicator light, Glove box and luggage compartment power connectors |
| 42 | 20 A Glove box auxiliary power connector (taxi spec, up to May 2005) |
| 43 | 5 A Taxi alarm remote control module, glove box and luggage compartment connectors |
| 44 | 10 A Taxi alarm remote control module, 12 V socket |
Type 2
Type 2 — Production from May 2008.
|
|
| No. | Rating / Description |
| 1 | 30 A Tailgate control module 2 (Variant/Wagon only) |
| 2 | 30 A Tailgate control module 1 (Variant/Wagon only) |
| 3 | Not assigned |
| 4 | Not assigned |
| 5 | Reserved for special-purpose vehicles |
| 6 | Reserved for special-purpose vehicles |
| 7 | Reserved for special-purpose vehicles |
| 8 | Reserved for special-purpose vehicles |
| 9 | Reserved for special-purpose vehicles |
| 10 | Not assigned |
| 11 | Not assigned |
| 12 | Not assigned |
Under-Dash Relay Carriers
Located under the driver-side dashboard, adjacent to the vehicle electrical system control module (J519).
| Diagram | |
|---|---|
|
|
| No. | Description |
| B1 | Terminal 15 power supply relay (460) |
| B2 | Unassigned |
| B3 | Unassigned |
| B4 | Terminal 30 power supply relay (449) |
| B5 | Heated rear window relay (53) |
| B6 | Dual horn relay (449) |
| B7 | Dual washer pump relay 1 (404) |
| B8 | Dual washer pump relay 2 (404) |
| B9 | Load reduction / Terminal X relay (460) |
An auxiliary relay carrier is mounted directly to the vehicle electrical system control module. On models equipped with power seats, this carrier also houses automatic circuit breakers (thermal fuses) for the seat adjustment motors.
Diagram & Relay Assignments
1 — Auxiliary heater relay (53)
2 — Unassigned
3 — Fresh air blower relay (404)
4 — Unassigned
5 — Fuel pump relay 2 (404)
6 — Headlight washer system relay (53)
7 — Terminal 50 starter voltage supply relay (433)
A — Unassigned
B — Unassigned
C — Thermal fuse 1 (30 A) — Driver seat adjustment
D — Thermal fuse 2 (30 A) — Driver seat adjustment
Engine Compartment Fuse Panels
The engine compartment fuse and relay box is located on the left side of the engine compartment and consists of two sections: the main electronics box (E-Box) and the high-power pre-fuse panel.
Engine Compartment Fuse Box (E-Box)
Type 1
General View
| Diagram | |
|---|---|
|
|
| No. | Rating & Description |
| 1 | 5 A / 15 A Automatic transmission control module (TCM), DSG mechatronic unit |
| 2 | 30 A ABS control module |
| 3 | 20 A Central convenience control module (up to Apr 2006), Trailer detection control module (from May 2006) |
| 4 | 5 A Vehicle electrical system control module (J519) |
| 5 | 20 A Horn |
| 6 | 20 A Ignition coils with power output stages |
| 7 | 15 A Fuel pressure regulator / 5 A Clutch pedal position sensor |
| 8 | 10 A Radiator fan control module, Variable valve timing solenoid, Suction jet pump valve, Intake manifold flap valve |
| 9 | 5 A Coolant circulation pump relay |
| 10 | 10 A Motronic power relay 2, Oxygen (lambda) sensor heater |
| 11 | 25 A / 30 A Engine Control Module (ECM) |
| 12 | Not assigned |
| 13 | Not assigned |
| 14 | Not assigned |
| 15 | 10 A Coolant circulation pump |
| 16 | 5 A Steering column electronic control module |
| 17 | 5 A Instrument cluster control module |
| 18 | 30 A Audio amplifier, Special-purpose vehicle control module |
| 19 | 15 A / 20 A Head unit, Radio-navigation display unit |
| 20 | 20 A Cellular phone, TV tuner, Satellite radio |
| 21 | 10 A TV tuner, Satellite radio tuner |
| 22 | 7.5 A Multimedia control module |
| 23 | 10 A Radiator fan control module / 5 A Compass magnetic sensor |
| 24 | 5 A / 10 A CAN bus gateway (Data bus diagnostic interface) |
| 25 | Not assigned |
| 26 | 10 A Engine Control Module (ECM), Motronic power relay |
| 27 | Not assigned |
| 28 | Not assigned |
| 29 | Not assigned |
| 30 | 20 A Auxiliary heater control module |
| 31 | 30 A Windshield wiper motor control module |
| 32 | 10 A Charge pressure control solenoid valve |
| 33 | 15 A Fuel pressure regulator, Oxygen (lambda) sensor heater |
| 34 | Not assigned |
| 35 | 20 A Auxiliary heater operating relay |
| 36 | Not assigned |
| 37 | Not assigned |
| 38 | Not assigned |
| 39 | Not assigned |
| 40 | Not assigned |
| 41 | Not assigned |
| 42 | Not assigned |
| 43 | Not assigned |
| 44 | 10 A Fuel system leak detection pump (LDP) |
| 45 | 10 A Oxygen (lambda) sensor |
| 46 | 10 A Post-catalyst oxygen (lambda) sensor 1 heater |
| 47 | 40 A Vehicle electrical system control module (Low beam headlights, parking lights) |
| 48 | 40 A Vehicle electrical system control module (Low beam headlights, parking lights) |
| 49 | Vehicle electrical system control module J519 (Terminal 15 supply) |
| 50 | 60 A Secondary battery charging relay |
| 51 | Not assigned |
| 52 | 60 A Heated windshield control module |
| 53 | 50 A Vehicle electrical system control module (Left instrument panel fuse box feed) |
| 54 | 50 A Secondary air injection (SAI) pump motor, Glow plug relay |
| No. | Relay |
| A1 — Terminal 30 voltage supply relay; A2–A4 — Unassigned | |
Type 2
General View
| Diagram | |
|---|---|
|
|
| No. | Rating & Description |
| 1 | 7.5 A Multimedia control module |
| 2 | 30 A ABS control module |
| 3 | 20 A Horn, Vehicle electrical system control module |
| 4 | 20 A Central convenience control module (up to Apr 2006) / 25 A Trailer detection control module (from May 2006) |
| 5 | 5 A Battery monitoring control module, Vehicle electrical system control module |
| 6 | 5 A Automatic transmission control module (TCM) / 15 A DSG mechatronic unit |
| 7 | 15 A TV/Navigation display unit, Head unit / 30 A Voltage stabilizer |
| 8 | 30 A DSG mechatronic unit |
| 9 | 5 A Steering column electronic control module |
| 10 | 20 A Fuel pump relay (diesel), Glow plug control module, Ignition coils with power output stages (cylinders 1–4) |
| 11 | 5 A Instrument cluster control module (Start-Stop models) |
| 12 | 5 A Cellular phone control module, Antenna, TV tuner, Satellite radio |
| 13 | 10 A Motronic power relay, Terminal 30 power relay, Engine Control Module (ECM) |
| 14 | 25 A / 30 A Engine Control Module (ECM) |
| 15 | 5 A / 10 A CAN bus gateway (Data bus diagnostic interface) |
| 16 | 5 A Secondary air injection pump relay / 10 A Exhaust Gas Recirculation (EGR) valve, Boost pressure control solenoid, Oxygen sensor heater |
| 17 | 10 A Fuel tank shut-off valve / 40 A Low-heat output relay (from Nov 2006) |
| 18 | 5 A Heating relay / 10 A After-run coolant pump / 30 A AdBlue / Reducing agent heater control module |
| 19 | 30 A Audio amplifier |
| 20 | 5 A Auxiliary fuel pump relay, Radiator fan control module, Glow plug control module / 10 A Clutch position sensor, Variable valve timing solenoid 1 / 15 A Fuel pressure regulator |
| 21 | 20 A Auxiliary heater control module |
| 22 | 30 A Windshield wiper motor control module |
| 23 | 5 A Compass sensor, Glow plug module / 10 A Map-controlled engine cooling thermostat, Radiator fan control module, Intake flap motor, Oxygen sensor heater, VVT / intake flap solenoid |
| 24 | 10 A / 15 A Nitrogen oxide (NOx) sensor control module, Oxygen sensor heater |
| 25 | 40 A Vehicle electrical system control module (Low beam, High beam, Parking lights) |
| 26 | 40 A Vehicle electrical system control module (Low beam, High beam, Parking lights) |
| 27 | 60 A Heated windshield control module |
| 28 | 40 A / 50 A Secondary air injection pump motor, Glow plug control module |
| 29 | 50 A Vehicle electrical system control module, Load reduction relay (Terminal X) |
| 30 | 50 A Vehicle electrical system control module |
High-Power Main Pre-Fuse Panel
Contains high-current fusible links supplying major electrical circuits.
| Diagram | |
|---|---|
| No. | Rating & Description |
| Type 1 | |
|
|
| 1 | 150 A / 180 A Generator (Alternator) |
| 2 | 80 A Electromechanical power steering motor |
| 3 | 50 A / 80 A Radiator fan control module |
| 4 | 80 A / 100 A Power seat thermal fuse 1, Left/right instrument panel fuse boxes |
| 5 | 80 A Right instrument panel fuse box (up to Apr 2008), Driver seat adjustment thermal fuse 1 |
| 6 | 80 A / 100 A Left/right instrument panel fuse boxes |
| 7 | 40 A ABS control module |
| Type 2 | |
|
|
| 1 | 150 A Generator (Alternator) |
| 2 | 80 A Electromechanical power steering motor |
| 3 | 50 A / 80 A Radiator fan control module |
| 4 | 60 A Power seat thermal fuse 1, Left/right instrument panel fuse boxes |
| 5 | 60 A / 80 A Power seat thermal fuse 1, Left/right instrument panel fuse boxes |
| 6 | 80 A / 100 A Left/right instrument panel fuse boxes |
| 7 | 60 A Secondary battery charging cable / 100 A Auxiliary air heater element, High-heat output relay |
| 8 | 40 A ABS control module |
Note: On diesel models, the glow plug control module is located directly beneath the engine compartment fuse box.
Luggage Compartment Fuse and Relay Panel
Models equipped with a trunk-mounted battery feature an auxiliary fuse and relay panel in the luggage compartment.
| Diagram | |
|---|---|
|
|
| No. | Rating and Description |
| 1 | 30 A Instrument panel fuse boxes (left/right) |
| 2 | 80 A Engine compartment E-Box feed |
| 3 | 125 A Main distribution panel power feed |
| 4 | 5 A Vehicle electrical system control module (J519) |
Behind the left side trim panel of the luggage compartment, auxiliary high-current relays are located: 70 A on Sedan (Saloon) models and 60 A on Variant (Wagon) models.
