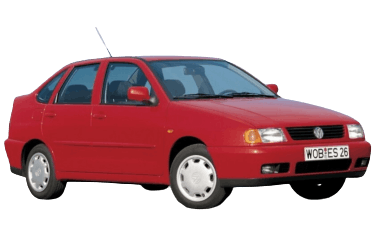

The third-generation VW Polo is also known as the Polo Classic. Produced from 1994 to 2001 in sedan and hatchback body styles, this model received a facelift in 1999. Consequently, these changes also affected the vehicle's electrical system. In this guide, we illustrate the general layout of the electronic control units (ECUs) on the Volkswagen Polo Mk3 Classic (chassis code 6V5; A03 / PQ24 platform) and provide detailed diagrams of the fuse and relay boxes. The location of the cigarette lighter fuse is also specifically highlighted.
General Layout
Location of electronic control units (ECUs).
| 1 | ABS control module |
| 2 | Heater / A/C blower motor resistor - inside heater housing |
| 3 | Air conditioning / heater control module |
| 4 | Battery |
| 5 | Central locking control module - right side of luggage compartment |
| 6 | Data Link Connector (DLC) up to 08/99 |
| 7 | Data Link Connector (DLC) from 09/99 - behind ashtray |
| 8 | Engine Control Module (ECM) - on intake air resonator |
| 9 | Radiator cooling fan control module |
| 10 | Fuse and relay box, engine compartment |
| 11 | Fuse and relay box 1, dashboard |
| 12 | Fuse and relay box 2, dashboard |
| 13 | Xenon headlight control module (left) |
| 14 | Xenon headlight control module (right) |
| 15 | Glow plug control module - near dashboard relay box 2 |
| 16 | Glow plug relay - near dashboard relay box 2 |
| 17 | Headlight range control module - left side of luggage compartment |
| 18 | Horn - behind front bumper |
| 19 | Immobilizer control module |
| 20 | Ambient outside temperature sensor |
| 21 | Driver's seat heating control module - under seat |
| 22 | Passenger seat heating control module - under seat |
| 23 | Airbag control module (SRS) |
| 24 | Transmission Control Module (TCM) - on intake air resonator |
In Passenger Compartment
Fuse Box
Located under the dashboard on the driver's side, behind a protective cover.
Type 1
Access location.
| Photo & Diagram (Type 1) | |
|---|---|
|
|
| No. | Rating & Description |
| 1 | A/C compressor magnetic clutch relay |
| 2 | Rear window wiper/washer relay |
| 3 | |
| 4 | Load reduction relay (auxiliary ignition circuits) |
| 5 | |
| 6 | Turn signal flasher relay |
| 7 | Headlight washer pump relay |
| 8 | Windshield wiper intermittent relay |
| 9 | Warning buzzer for active left side marker lights |
| 10 | Jumper link (rear fog light) |
| 11 | Jumper link (horn) |
| 12 | Fuel pump relay |
| 13 | Glow plug relay |
| 14 | Intake manifold pre-heater relay |
| F1 | 10A - Left headlight (low beam), headlight range control (left) |
| F2 | 10A - Right headlight (low beam), headlight range control (right) |
| F3 | 10A - License plate lights |
| F4 | 15A - Rear window wiper |
| F5 | 15A - Windshield wiper/washer, heated washer nozzles |
| F6 | 20A - Heater blower motor, A/C relay |
| F7 | 10A - Side lights and tail light (right) |
| F8 | 10A - Side lights and tail light (left) |
| F9 | 20A - Heated rear window |
| F10 | 15A - Rear fog light |
| F11 | 10A - Left headlight (high beam) |
| F12 | 10A - Right headlight (high beam) |
| F13 | 10A - Horn |
| F14 | 15A - Reversing lights, power door mirrors |
| F15 | 10A - Engine electronics |
| F16 | 15A - Instrument cluster |
| F17 | 10A - Turn signal indicators |
| F18 | 20A - Fuel pump, oxygen sensor |
| F19 | 30A - Radiator cooling fan relay |
| F20 | 10A - Brake lights |
| F21 | 15A - Interior lights, central locking, instrument cluster, Data Link Connector (DLC) |
| F22 | 10A - Audio system, cigarette lighter |
| F23 | 30A - ABS |
| F24 | 30A - ABS |
| F25 | 50A - Glow plugs |
| In this configuration, fuse No. 22 (10A) is responsible for the cigarette lighter. | |
Type 2
Access location.
| Diagram | |
|---|---|
|
|
| No. | Rating & Description |
| 1 | 10A - Oxygen sensor heater |
| 2 | 5A - License plate lights |
| 3 | 10A - Fuel injectors |
| 4 | 5A - Left side light |
| 5 | 5A - Right side light |
| 6 | 15A - Rear window wiper |
| 7 | 7.5A - Turn signals |
| 8 | 5A - ABS with EDL/ESP |
| 9 | 5A - Headlight range control |
| 10 | 7.5A - Interior lighting, glove box light, vanity mirror light |
| 11 | 5A - Data Link Connector (DLC), air conditioning |
| 12 | 10A - Right headlight (low beam) |
| 13 | 10A - Left headlight (low beam) |
| 14 | 10A - Hazard warning lights |
| 15 | 10A - Brake lights |
| 16 | 5A - Ignition switch |
| 17 | - |
| 18 | 5A - Heated power mirrors |
| 19 | 15A - Horn |
| 20 | 10A - Telematics system |
| 21 | 5A - Transmission Control Module (TCM) |
| 22 | 15A - Anti-theft alarm system |
| 23 | 5A - EGR valve, mass air flow (MAF) sensor, auxiliary heater relay, glow plug relay |
| 24 | 5A - Clutch pedal switch (Diesel) |
| 25 | 5A - Selector lever position switch (automatic transmission) |
| 26 | 7.5A - Air conditioning, central locking system, power windows, heated power mirrors, navigation system |
| 27 | 5A - Instrument cluster |
| 28 | 5A - Vehicle speed sensor (VSS), engine immobilizer |
| 29 | 7.5A - Reversing lights, heated washer nozzles, headlight range control |
| 30 | 5A - EGR valve |
| 31 | 10A - Engine Control Module (ECM) |
| 32 | 5A - Fuel shut-off valve (Diesel) |
| 33 | 10A - Transmission Control Module (TCM) |
| 34 | 10A - Ignition coil |
| 35 | 25A - Sunroof |
| 36 | 15A - Engine Control Module (ECM) |
| 37 | 15A - Engine Control Module (ECM) |
| 38 | 25A - Driver's side power window |
| 39 | 25A - Passenger side power window |
| 40 | 15A - Fuel pump |
| 41 | 15A - Central locking, anti-theft alarm system |
| 42 | 15A - Audio system, navigation |
| 43 | 15A - Front and rear fog lights |
| 44 | 15A - Left headlight range control motor |
| 45 | 15A - Right headlight range control motor |
| 46 | 15A - Cigarette lighter |
| 47 | 20A - Headlight washer system |
| 48 | 20A - Heated rear window |
| 49 | 25A - Heater blower motor |
| 50 | 15A - Windshield wipers |
| 51 | 15A - Heated seats |
| Fuse No. 46 (15A) is responsible for the cigarette lighter. As shown in the example photo, the relay box in this configuration is located behind the main fuse panel and may contain the following components: |
|
| 1 | Anti-theft alarm relay |
| 2 | Windshield washer relay |
| 3 | Load reduction relay (auxiliary ignition circuits) |
| 4 | Fuel pump relay |
| 5 | Heated mirror relay |
In Engine Compartment
Located on top of the battery under a protective cover. Consists of high-current main fuses.
- 110A - Alternator
- 80A - (Unassigned/Main circuit)
- 50A - Glow plugs
- 50A - Diesel: Glow plugs / 30A - Gasoline: Auxiliary heater
- 30A - ABS/ESP system
- 30A - ABS/ESP system
- 30A - Radiator cooling fan motor
- 20A - Air conditioning / heater
- 10A - Air conditioning / heater
