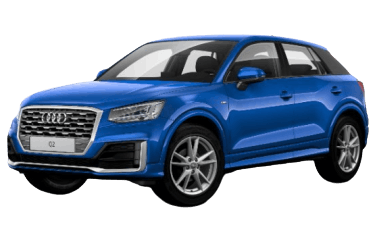

The Audi Q2 is a subcompact premium crossover from the German Volkswagen Group. In this article, we will provide a detailed breakdown of the fuse box diagrams for the Audi Q2 (first generation; body code GA; MQB A1 platform) for the 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, and 2026 model years.
Here you will find the locations and photos of the fuse boxes. We will specifically highlight the fuses responsible for the cigarette lighter and the fuel pump.
Important: Exact fuse ratings may vary depending on the model year and vehicle trim level.
Passenger Compartment
The fuse box is located under the dashboard (depending on the steering wheel location: near the steering column on the driver's side or behind the glove box on the passenger's side).
Photo for reference.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | SCR dosing system control module (AdBlue injection) | 15 / 20 |
| F2 | Power seat control module | 30 |
| F4 | Multimedia interface (MMI) control panel | 7.5 |
| F5 | Data bus diagnostic interface (Gateway) | 7.5 |
| F6 | Automatic transmission selector (DSG) | 5 / 7.5 |
| F7 | Climate control / heater control panel, rear window defogger relay coil | 10 |
| F8 | Electromechanical parking brake (EPB) button, light switch, rain/light sensor, factory alarm system, OBD-II diagnostic port, ERA-GLONASS / eCall system | 10 |
| F9 | Steering column switch cluster | 7.5 |
| F10 | Multimedia system (MMI head unit) / Head-up display (HUD) | 7.5 |
| F11 | Seat belt tensioner igniter (driver's side) | 25 |
| F12 | Multimedia system components | 20 |
| F13 | Adaptive chassis control (DCC) module | 15 |
| F14 | Climate control blower (HVAC blower motor) | 40 |
| F15 | Electronic steering column lock (ELV) | 10 |
| F16 | Multimedia system components (Phone Box, antenna amplifier) | 5 / 10 |
| F17 | Instrument cluster (Dashboard) | 7.5 |
| F18 | Rearview camera | 7.5 |
| F19 | Keyless entry system (KESSY) control module / Parking assist | 7.5 / 10 |
| F20 | SCR system components (AdBlue) | 10 |
| F22 | Power tailgate | 30 / 40 |
| F23 | Body control module (BCM) — right side | 40 |
| F24 | Panoramic sunroof power shade/motor | 20 / 30 |
| F25 | Front and rear door control modules, power windows (left side) | 30 |
| F26 | Heated seat control module | 30 |
| F27 | Audio system amplifier | 30 / 40 |
| F29 | Interior dome lights | 7.5 |
| F31 | Body control module (BCM) — left side | 40 |
| F32 | Driver assistance control module (windshield camera, radar, parking sensors) | 7.5 / 10 |
| F33 | Airbag control module (SRS Airbag) | 7.5 |
| F34 | Button illumination, microphone, reverse light switch, temperature sensor, 12V power outlet relay coil, Auto Hold button | 7.5 |
| F35 | Halogen headlight leveling, air quality sensor, auto-dimming rearview mirror, OBD-II diagnostic port, center console power supply | 7.5 |
| F36 | Right headlight control module (LED) | 10 / 15 |
| F37 | Left headlight control module (LED) | 10 / 15 |
| F39 | Front and rear door control modules, power windows (right side) | 30 |
| F40 | Cigarette lighter, 12V power outlets | 20 |
| F41 | Seat belt tensioner igniter (front passenger) | 25 |
| F42 | Central locking, windshield washer pump | 15 / 30 |
| F43 | Interior dome lights / Ambient lighting | 7.5 |
| F44 | All-wheel drive coupling control module (Haldex) | 15 |
| F47 | Rear wiper motor | 15 |
| F49 | Clutch pedal position sensor | 7.5 |
| F53 | Rear window defogger element | 30 |
| R1 | SCR dosing system pump relay | - |
| R2 / R3 | Spare | - |
| R4 | Terminal 15 power supply relay (ignition) | - |
| R5 | Rear window defogger relay | - |
| R6 | 12V power outlet / cigarette lighter relay | - |
Engine Compartment
The fuse panel is located on the left side of the engine compartment, next to the battery.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Electronic Stability Program (ABS / ESP) control module — pump | 40 |
| F2 | Electronic Stability Program (ABS / ESP) control module — valves | 40 |
| F3 | Engine control module (ECM) | 15 / 30 |
| F4 | Engine management system sensors, radiator cooling fan, PTC heater relay coils, secondary air injection (SAI) pump relay | 5 / 10 |
| F5 | Engine management system actuators/valves, fuel system components (TDI diesel) | 10 / 15 |
| F6 | Brake light switch | 5 |
| F7 | Auxiliary coolant pump, fuel system components (TFSI gasoline) | 10 / 15 |
| F8 | Oxygen sensor heater (O2 sensor) | 10 / 15 |
| F9 | Throttle/swirl valve, automatic glow period control module (diesel) | 10 / 15 |
| F10 | Fuel pump control module, in-tank fuel pump | 15 / 20 |
| F11 | PTC auxiliary air heater — stage 2 | 40 |
| F12 | PTC auxiliary air heater — stage 3 | 40 |
| F13 | Automatic transmission control module (DSG Mechatronic) | 15 / 30 |
| F15 | Horn | 15 |
| F16 | Ignition coils | 15 / 20 |
| F17 | ABS/ESP control module power supply, ECM main relay power supply | 7.5 |
| F18 | Battery monitoring module (IBS), data bus diagnostic interface (Gateway) | 5 / 7.5 |
| F19 | Windshield wiper motor (front wiper linkage) | 30 |
| F20 | Factory anti-theft alarm siren | 10 |
| F22 | Terminal 50 (starter signal), diagnostics, ECM | 5 / 7.5 |
| F23 | Starter solenoid relay | 30 |
| F24 | PTC auxiliary air heater — stage 1 | 40 |
| F31 | Brake system electric vacuum pump | 15 / 20 |
| F33 | Automatic transmission control module (DSG), auxiliary transmission oil pump | 30 |
| R1 | Starter relay 1 | - |
| R2 | Starter relay 2 | - |
| R3 | Horn relay | - |
| R4 | High heat output relay (PTC heater, diesel) | - |
| R5 | Main relay (gasoline) / Terminal 30 power supply relay (diesel) | - |
| R6 | Automatic glow period control module (diesel) | - |
| R7 | Low heat output relay (PTC heater, diesel) | - |
| R8 | Engine components power supply relay (for 2.0 TFSI) | - |
| R9 | Wiper motor relay 1 | - |
| R10 | Wiper motor relay 2 | - |
| SBJ | Power supply for interior fuse box C (Nos. 4, 14, 22, 31, 38, 42, 53) / Terminal 15 relay / Power outlet relay | 125 |
| SBG | Alternator high-current fuse | 400 |
| 508 | Battery positive terminal connection | - |
| SBE | Electromechanical power steering (EPS) control module | 80 |
| SBK | Power supply for interior fuse box C (Nos. 1, 3, 15, 30, 43, 46, 50, 52) | 80 |
| SBL | Radiator cooling fan control module | 50 |
