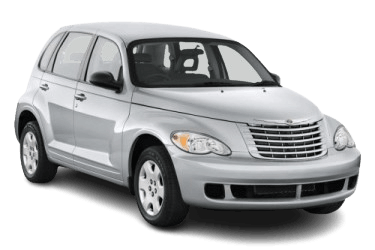

This article provides a detailed overview of the fuse block diagrams for the Chrysler PT Cruiser (first generation, facelifted): 2006, 2007, 2008, 2009, and 2010 model years.
Fuses 11 and 16 protect the cigarette lighter and auxiliary power outlet circuits.
Engine Compartment Fuse Box
Located near the air cleaner assembly, beneath the protective cover.
Location reference.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Rating |
| Cartridge Fuses | ||
| 1 | Power Top Module (Convertible Only) | 40 A |
| 9 | Power Seats | 40 A |
| 15 | Radiator Cooling Fan Relay – Battery Feed | 50 A |
| 18 | Auto Shutdown (ASD) Relay – Contact Power Feed | 40 A |
| 32 | Engine ASD Relay Control Feed 1 | 30 A |
| 34 | Anti-Lock Braking System (ABS) – Valves | 30 A |
| 35 | Anti-Lock Braking System (ABS) – Pump Motor | 40 A |
| 36 | Headlamp Washer Control | 30 A |
| Mini Fuses | ||
| 2 | All-Wheel Drive (AWD) Electronic Control Unit (ECU) | 20 A |
| 3 | Center High-Mounted Stop Lamp (CHMSL) / Brake Switch Feed | 10 A |
| 4 | Ignition Switch | 10 A |
| 5 | Trailer Tow Package | 20 A |
| 6 | Ignition Off-Draw (IOD), Power Mirrors, Occupant Classification Module (OCM), Steering Control Unit, Satellite Digital Audio Receiver, Hands-Free System | 10 A |
| 7 | Ignition Off-Draw (IOD) Sense 1 | 30 A |
| 8 | Ignition Off-Draw (IOD) Sense 2 | 30 A |
| 10 | Cabin Compartment Node (CCN), Power Locks | 20 A |
| 11 | Auxiliary Power Outlet, Cigarette Lighter | 15 A |
| 12 | Ignition Run/Accessory – Power Inverter | 20 A |
| 13 | Ignition Run/Accessory – Rear Power Outlet | 20 A |
| 14 | Ignition Off-Draw (IOD) – Cabin Compartment Node (CCN), Interior Lighting | 10 A |
| 16 | Power Sunroof, Ignition Run, Cigarette Lighter | 15 A |
| 17 | IOD Feed – CVT Module / Wireless Control Module (WCM) | 10 A |
| 19 | Audio Amplifiers 1 & 2 | 20 A |
| 20 | Ignition Off-Draw (IOD) – Radio | 15 A |
| 21 | Ignition Off-Draw (IOD) – Anti-Theft Module, Alarm System | 10 A |
| 22 | HVAC System, Compass Sensor | 10 A |
| 23 | Main Relay – Feed 3 | 15 A |
| 24 | Power Moonroof | 25 A |
| 25 | Heated Mirrors | 10 A |
| 26 | Main Relay – Feed 2 | 15 A |
| 27 | Occupant Restraint Controller (ORC) | 10 A |
| 28 | Occupant Classification Module (OCM), Occupant Restraint Controller (ORC) | 10 A |
| 29 | Not Used | - |
| 30 | Heated Seats | 20 A |
| 31 | Headlamp Washer Relay Control | 10 A |
| 33 | Anti-Lock Braking System (ABS) Module, J1962 Diagnostic Connector, Powertrain Control Module (PCM) | 10 A |
| 37 | Spare | 25 A |
