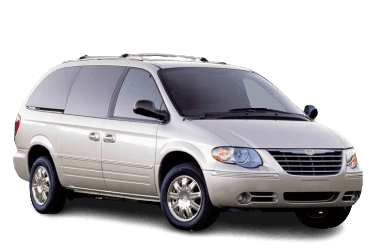

This article provides a detailed overview of the fuse box diagrams for the fourth-generation Chrysler Town & Country (RS platform), covering the 2001, 2002, 2003, 2004, 2005, 2006, and 2007 model years.
Fuses #5, #6, and #7 protect the auxiliary power outlets and the cigarette lighter circuits.
Engine Compartment
The vehicle is equipped with a single fuse box (Integrated Power Module). It is located adjacent to the battery, beneath a protective cover.
Fuse box access.
Component overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Description | Rating (A) |
| R1 | Unused | |
| R2 | Export: Headlamp Washer | |
| R3 | Parking Lamps Relay | |
| R4 | Horn Relay | |
| R5 | Front Fog Lamp Relay | |
| R6 | A/C Compressor Clutch Relay | |
| R7 | Gasoline: Fuel Pump Relay | |
| Diesel: Fuel Heater | ||
| R8 | Rear Window Defogger | |
| R9 | Rear Blower Motor Relay | |
| R10 | Front Blower Motor Relay | |
| R11 | Accessory Relay | |
| R12 | Starter Relay | |
| R13 | Gasoline: Automatic Shutdown (ASD) Relay | |
| Diesel: Engine Control Module (ECM) / Powertrain Control Module (PCM) Relay | ||
| R14 | Front Wiper Relay (High/Low) | |
| R15 | Front Wiper Relay (On/Off) | |
| R16 | Gasoline: Transmission Control Relay | |
| Diesel: Lift Pump | ||
| R17 | Speaker Relay | |
| 1 | Front Control Module (FCM), Front Fog Lamps | 20 A |
| 2 | Non-Export: Trailer Tow Connector, Left Front Parking and Turn Signal Lamps, Front Control Module (FCM), License Plate Lamp, Left Rear Tail Lamp Assembly | 15 A |
| Export: Left Parking Lamp, Left Rear Tail Lamp Assembly, Left Headlamp Leveling Motor, License Plate Lamp, Front Control Module (FCM) | 15 A | |
| 3 | Non-Export: Right Front Parking and Turn Signal Lamps, Right Rear Tail Lamp Assembly, Front Control Module (FCM) | 15 A |
| Export Only: Right Headlamp Leveling Motor, Right Parking Lamp, Right Rear Tail Lamp Assembly, Headlamp Switch, Front Control Module (FCM) | 15 A | |
| 4 | Front Wiper Relay (On/Off): Wiper Module, High/Low Speed Relay, Front Control Module (FCM) | 30 A |
| 4 | PTC Only: Power Mirrors | 8 A |
| 5 | Radio, Front Cigarette Lighter | 20 A |
| 6 | Floor Console Auxiliary Power Outlet, Floor Console Lamp, Rear Auxiliary Power Outlet | 20 A |
| 7 | Data Link Connector (DLC), Floor Console Auxiliary Power Outlet | 13 A |
| 8 | Horn | 20 A |
| 9 | Fuses #14 and #15, Anti-lock Braking System (ABS), Front Control Module (FCM), Starter Relay, Rear Blower Motor Relay, Front Blower Motor Relay, Rear Window Defogger Relay | 40 A |
| 2001 Models: Anti-lock Braking System (ABS), Starter Relay | 30 A | |
| 10 | Automatic Temperature Control (ATC): Front Blower Motor Power Module; Manual A/C: Front Blower Motor Resistor | 40 A |
| 11 | Audio Amplifier, Sunroof, Radio, Rear Wiper Motor | 20 A |
| 12 | Automatic Temperature Control (ATC): Rear Blower Motor Power Module; Manual A/C: Rear HVAC Control Module | 25 A |
| 13 | Rear Window Defogger Relay | 40 A |
| 14 | Front Control Module (FCM), Radio, Body Control Module (BCM), Speaker Relay, Sentry Key Remote Entry Module (SKREEM), Automatic Temperature Control (ATC), Overhead Console, DVD/CD Changer UK: Siren, Thatcham Alarm Module Non-Export: Adjustable Pedals Switch |
20 A |
| 2001 Models: Speaker Relay, Radio, Body Control Module (BCM), Front Control Module (FCM), Sentry Key Immobilizer System (SKIS), Automatic Temperature Control (ATC), Overhead Console, Sentry Key Remote Entry Module (SKREEM) | 15 A | |
| 15 | Gasoline: Transmission Control Relay, Pressure Switch Assembly, Powertrain Control Module (PCM), Transmission Solenoid Pack | 20 A |
| Diesel: Cabin Heater Assist, Lift Pump Relay | 20 A | |
| 16 | Gasoline: Automatic Shutdown (ASD) Relay: Fuel Injectors, Ignition Coil, Powertrain Control Module (PCM) | 25 A |
| Diesel: Alternator/Generator, Engine Control Module (ECM), Fuel Pressure Solenoid, Mass Air Flow (MAF) Sensor, Camshaft Position (CMP) Sensor, Glow Plug Relay, A/C Compressor Clutch, Radiator Fan Relays: #1, #2, #3; Exhaust Gas Recirculation (EGR) Solenoid | 25 A | |
| 17 | Gasoline: Fuel Pump, Powertrain Control Module (PCM) | 20 A |
| Diesel: Fuel Heater Relay: Fuel Heater, Crankcase Ventilation Heater | 20 A | |
| 18 | Power Mirror Switch, A/C Compressor Clutch Relay Non-Export: Adjustable Pedals Relay Export: Sentry Key Remote Entry Module (SKREEM), Passenger Folding Mirror Relay, Ignition Switch UK: Thatcham Alarm Module |
15 A |
| 2001 Models Only: Power Mirror Switch, A/C Compressor Clutch Relay Export: Passenger Folding Mirror Relay |
20 A | |
| 19 | Body Control Module (BCM) | 40 A |
| 20 | Body Control Module (BCM) | 40 A |
| Audio Amplifier | 30 A | |
| 21 | Anti-lock Braking System (ABS) Module | 25 A |
| 22 | Power Seat Circuit Breaker: Driver and Passenger Power Seat Switches, Heated Seat Module, Seat and Mirror Memory Module | 40 A |
| 23 | Ignition Switch: Park Assist Module, Sentry Key Remote Entry System (SKREEM), UK Only: Thatcham Alarm Module | 10 A |
| 24 | Export: Repeater Lamps Instrument Cluster, Body Control Module (BCM), Message Center (Highline) |
20 A |
| 26 | Stop Lamp Switch | 20 A |
| 27 | Gasoline: Radiator Cooling Fan Relay | 40 A |
| Diesel: Radiator Cooling Fan Relay #2 | 40 A | |
| 28 | Power Window Circuit Breaker | 40 A |
| 30 | Front Control Module (FCM) Export: Headlamp Washer Relay |
40 A |
| 31 | Power Sliding Door Module, Dual Power Sliding Doors | 40 A |
| 32 | Power Liftgate Module Non-Export: Sunroof / Moonroof |
40 A |
| 33 | Washer Pump Motor (Front and Rear) | 15 A |
