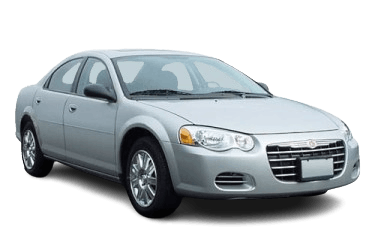

This article provides a detailed overview of the fuse box diagrams for the second-generation Chrysler Sebring (JR / sedan body), covering the 2000, 2001, 2002, 2003, 2004, 2005, and 2006 model years.
Fuse #2 in the engine compartment fuse box protects the cigarette lighter / power receptacle circuit.
Engine Compartment
The fuse box is located near the air cleaner assembly, beneath the protective cover.
General layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Transmission Control Relay | |
| R2 | Starter Motor Relay | |
| R3 | Fuel Pump Relay | |
| R4 | Front Wiper Relay (High/Low Speed) | |
| R5 | Front Wiper Relay (On/Off) | |
| R6 | Export Only: Rear Fog Lamp Relay | |
| R7 | A/C Compressor Clutch Relay | |
| R8 | Heated Seat Relay | |
| R9 | Radiator Fan Relay (Low Speed) | |
| R10 | Radiator Fan Relay (High Speed) | |
| R11 | Automatic Shutdown (ASD) Relay | |
| R12 | Headlamp Washer Relay | |
| 1 | Ignition Switch – Fuses #1, #4, #16, and #19 in the Interior Fuse Box | 40 A |
| 2 | Power Receptacle, Chrysler Sebring Cigarette Lighter Fuse | 20 A |
| 3 | Export Only: Headlamp Washer | 30 A |
| 4 | Fuses #9, #10, and #18 in the Interior Fuse Box, Multifunction Switch, Headlamp Delay Relay | 40 A |
| 5 | Unused | - |
| 6 | Rear Window Defogger Relay | 40 A |
| 7 | Air Pump Motor Relay (2.4L PZEV) | 40 A |
| 8 | Fuel Pump Relay, Starter Motor Relay, Ignition Switch – Manual Transmission: Clutch Interlock, Upstop Switch / Automatic Transmission: Transmission Control Module (TCM); Body Control Module (BCM), Fuses #14, #15, and #17 in the Interior Fuse Box, and Fuse #23 in the Engine Compartment Fuse Box | 20 A |
| 9 | Transmission Solenoid Assembly, Transmission Control Relay, Pressure Switch Assembly, Transmission Control Module (TCM) | 20 A |
| 10 | Sentry Key Immobilizer Module (SKIM), Ignition Switch | 10 A |
| 11 | Rear Fog Lamp Relay, Stop Lamp Switch, Fuse #5 in the Interior Fuse Box | 20 A |
| 12 | Radiator Fan Relays (Low and High Speed), A/C Compressor Clutch Relay | 40 A |
| 13 | Heated Seat Relay (Driver and Passenger Heated Seat Modules) | 20 A |
| 14 | Powertrain Control Module (PCM), Automatic Shutdown (ASD) Relay (Fuses #24 and #25) | 30 A |
| 15 | Anti-lock Braking System (ABS) Module | 40 A |
| 16 | Fuses #7 and #8 in the Interior Fuse Box | 40 A |
| 17 | Convertible Only: Power Top Up/Down Relays | 40 A |
| 18 | Front Wiper Relays (On/Off and High/Low) | 40 A |
| 19 | Convertible Only: Seat Belt Control Module | 20 A |
| 20 | Multifunction Switch | 20 A |
| 21 | Unused | - |
| 22 | Anti-lock Braking System (ABS) Module | 20 A |
| 23 | Radiator Fan Relays (Low and High Speed), Sentry Key Immobilizer Module (SKIM), Powertrain Control Module (PCM), A/C Compressor Clutch Relay, Fuel Pump Relay, Leak Detection Pump (LDP) (US) | 10 A |
| Radiator Fan Relays (Low and High Speed), Sentry Key Immobilizer Module (SKIM), Powertrain Control Module (PCM), A/C Compressor Clutch Relay, Fuel Pump Relay, Leak Detection Pump (LDP) (US) | 20 A | |
| 24 | Manifold Tuning Valve (MTV) (2.7L), Fuel Injectors, Ignition Coil Capacitor (Noise Suppressor), Ignition Coils | 20 A |
| 25 | PCV Heater (2.7L), Alternator (Generator), Oxygen Sensors (O2S), Exhaust Gas Recirculation (EGR) Solenoid | 20 A |
Passenger Compartment
The fuse box is located on the left side of the dashboard, behind the plastic end cover.
Reference view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Headlamp Delay Relay | - |
| R2 | Horn Relay | - |
| R3 | Rear Window Defogger Relay | - |
| 1 | Blower Motor Power Module (Automatic Temperature Control), Blower Motor (Manual Temperature Control) | 30 A |
| 2 | High Beam Headlamp; Export: Right Headlamp Leveling Module; US: Right Headlamp, Daytime Running Lamp (DRL) Module |
10 A |
| 3 | High Beam Headlamp; Export: Left Headlamp Leveling Module; US: Left Headlamp |
10 A |
| 4 | Compass/Mini-Trip Computer, Anti-lock Braking System (ABS), Manual Transmission: Backup Lamp Switch, Automatic Transmission: Transmission Range Sensor, Automatic Temperature Control (ATC) Module, Daytime Running Lamp (DRL) Module, Door Lock Switches, Brake Transmission Shift Interlock Solenoid, Power Mirror Switch | 15 A |
| 5 | Data Link Connector (DLC), Power Mirror Switch, Dome Lamp, Body Control Module (BCM), Driver and Passenger Door Lock Switches, Cylinder Lock Switch (Vehicle Theft Security System), Radio, Glove Compartment Lamp, Compass/Mini-Trip Computer, Trunk Lamp, Automatic Temperature Control (ATC) Module, Overhead Map and Courtesy Lamps, Rear Floor Courtesy Lamps, Vanity Mirror Lamps / Export: Power Antenna | 10 A |
| 6 | A/C and Heater Control Module, Heated Mirrors | 10 A |
| 7 | Instrument Cluster, Multifunction Switch – Tail and Stop Lamps, Side Marker Lamps, Turn Signal Lamps, License Plate Lamp, Body Control Module (BCM), Headlamp Switch, Export Only: Headlamp Leveling Switch and Left/Right Leveling Modules, US Only: Park/Turn Signal Lamps | 20 A |
| 8 | Audio Amplifier, Horn Relay | 20 A |
| 9 | Body Control Module (BCM): Power Door Lock Motors | 15 A |
| 10 | Daytime Running Lamp (DRL) Module, Export: Multifunction Switch | 20 A |
| 11 | Body Control Module (BCM), Transmission Control Module (TCM), AutoStick Switch, Instrument Cluster, A/C and Heater Control Module, Data Link Connector (DLC) Export: Heated Seat Switch |
10 A |
| 12 | Low Beam Headlamp, Daytime Running Lamp (DRL) Module; Export: Left Headlamp Leveling Module; US: Left Headlamp |
10 A |
| 13 | Multifunction Switch – Instrument Cluster, Fog Lamps / Low Beam Headlamp; Export: Right Headlamp Leveling Module; US: Right Headlamp |
20 A |
| 14 | Radio | 10 A |
| 15 | Body Control Module (BCM), Rear Window Defogger Relay, Front Wiper Relays (High/Low Speed), Multifunction Switch | 10 A |
| 16 | Airbag Control Module / Occupant Restraint Controller (ORC) | 10 A |
| 17 | Left/Right Side Impact Airbag Control Modules, Airbag Control Module / Occupant Restraint Controller (ORC) | 10 A |
| 18 | Circuit Breaker: Power Seat Switch | 20 A |
| 19 | Circuit Breaker: Moonroof, Power Window Switches, Convertible Only – Window Drop Relay | 30 A |
