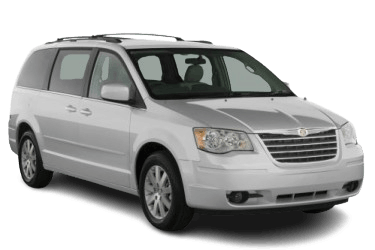

Fuses and relays Chrysler Town & Country (RT; 2007–2016)

This article provides a detailed overview of the fuse box diagrams for the fifth-generation Chrysler Town & Country (RT), covering model years 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, and 2016.

Fuses #6 and #7 in the engine compartment fuse block protect the power outlets and cigarette lighter. A 30 A circuit breaker located under the driver’s seat protects the power seats. A 25 A circuit breaker located under the instrument panel, near the steering column, protects the power windows. The lower instrument panel power outlet, heated mirrors, and removable floor console (when in the front position) are protected by self-resetting fuses that are only serviceable by an authorized dealership.

Engine Compartment Fuse Box

The fuse box is located near the battery, beneath the protective cover.

Reference image.

Diagram
No.	Description	Amperage
R1	Accessory / Run Relay
R2	Ignition Switch (Run)
R3	Starter Relay
R4	Run / Start Relay
R5	Powertrain Control Module (PCM) Relay
R6	Electric Backlite (EBL) Relay
	Rear Window Defogger
R7	Fuel Pump Relay
R8	Unused
R9	Rear Blower Motor Relay
R10	Automatic Shutdown (ASD) Relay
R11	Radiator Fan Relay (Low Speed)
Cartridge Fuses
J1	Power Folding Seats	40 A
J2	Power Liftgate Module	30 A
J3	Up to 2008: Rear Door Module	40 A
	2009 and Newer: Rear Door Module	30 A
J4	Driver Door Node (DDN)	25 A
J5	Passenger Door Node (PDN)	25 A
J6	Electronic Stability Control (ESC) Unit, ABS Pump	40 A
J7	Electronic Stability Control (ESC) Unit, ABS Valve	30 A
J8	Memory Seat Module	40 A
J9	Flex Fuel, Partial Zero Emissions Vehicle (PZEV)	40 A
J10	Manifold Tuning Valve (MTV), Headlamp Washer Relay	30 A
J11	Anti-Theft Module Relay Lock Feed, Power Sliding Door Module	30 A
J12	Radiator Fan Motor; 2012 and Newer: Rear Blower Motor (HVAC)	30 A
J13	Ignition Off Draw (IOD) — Main	60 A
J14	Rear Window Defogger	40 A
J15	Up to 2010: Rear Blower Motor	30 A
	2011: Front Blower Motor	30 A
	2012 and Newer: Front Blower Motor	40 A
J17	Starter Motor	40 A
J18	Powertrain Control Module (PCM) — Transmission Range	20 A
J19	Radiator Fan Motor	60 A
J20	Front Wiper Motor (Low / High Speed)	30 A
J21	Front and Rear Washer Pumps	20 A
J22	Sunroof / Moonroof Module	25 A
"Mini" Fuses
1	Brake Switch / Center High-Mounted Stop Lamp (CHMSL)	15 A
2	Trailer Lighting, Intelligent Battery Sensor (IBS), Front Fog Lamps	20 A
3	Vacuum Pump Motor / 2012 and Newer: Front and Rear Axle Lockers	20 A
4	Trailer Tow	10 A
5	Power Inverter	25 A
6	Rain Sensor, Instrument Panel or Rear Console Cigarette Lighter, Power Outlet #1	20 A
7	Power Outlet #2	20 A
8	Heated Front Seats	20 A
9	Heated Rear Seats	20 A
10	Up to 2008: Ignition Off Draw (IOD) — Satellite Digital Audio Receiver, Vehicle Entertainment System (VES), Hands-Free System, DVD System, Vanity Lamps, Universal Garage Door Opener	20 A
	2009 and Newer: Ignition Off Draw (IOD) — Satellite Digital Audio Receiver, Streaming Video Module, DVD System, Universal Garage Door Opener, Hands-Free System, Vanity Lamps	15 A
11	Ignition Off Draw (IOD) — Underhood Lamp, HVAC Automatic Temperature Control (ATC) Module, Microwave Sensor	10 A
12	Radio, Audio Amplifier	30 A
13	Ignition Off Draw (IOD) — Instrument Cluster, Cabin Compartment Node (CCN), Security Siren, Wireless Control Module (WCM), Clock, Multifunction Switch	20 A
14	Except US Market (Up to 2011): Trailer Tow	20 A
15	HVAC Module, Instrument Cluster, Steering Column Module (SCM), HVAC Automatic Temperature Control (ATC) Module, Infrared Sensor, Rearview Mirror, Transfer Case Switch, Run/Start, Cabin Compartment Node (CCN), Tire Pressure Monitoring System (TPMS), Multifunction Switch, Active Noise Cancellation; Diesel Engines Only: Glow Plug Module, Electronic Shifter Assembly (Hall Effect)	20 A
16	Occupant Restraint Controller (ORC) and Occupant Classification Module (OCM)	10 A
17	Left Side Running Lamps — Tail, License Plate, and Parking Lamps	15 A
18	Right Side Running Lamps — Tail and Parking Lamps	15 A
19	Powertrain Control Module (PCM), Automatic Shutdown (ASD) Relays #1 and #2	25 A
20	Cabin Compartment Node (CCN) — Switch Bank, Interior Lights, Steering Wheel Switches, Steering Column Module (SCM), Instrument Cluster	15 A
21	Automatic Shutdown (ASD) Relay #3	20 A
22	Right Horn	10 A
23	Left Horn	10 A
24	Rear Wiper Motor	25 A
25	Gasoline Engines: Fuel Pump	20 A
	Diesel Engines: Lift Pump	20 A
26	Driver Window Switch, Power Mirror Switch	10 A
27	Steering Column Lock, Ignition Switch, Wireless Control Module (WCM), Passive Entry Module; 2010 and Newer: Keyless Entry Module	10 A
28	Transmission Feed, Next Generation Controller (NGC), Transmission Control Module (TCM), Diagnostic Link Connector (DLC) (Up to 2008), Powertrain Control Module (PCM)	10 A
29	Occupant Classification Module (OCM)	10 A
30	Power Folding Mirrors, Rear Wiper Module; 2009–2011: Diagnostic Link Connector (DLC)	15 A
31	Reverse / Backup Lamps	20 A
32	Trailer Tow (Export/Europe), Occupant Restraint Controller (ORC)	10 A
33	Global Powertrain Engine Controller (GPEC), Powertrain Control Module (PCM), Next Generation Controller (NGC), Transmission Control Module (TCM)	10 A
34	Up to 2008: Headlamp Washer, Compass, Park Assist, HVAC Module	10 A
	2009 and Newer: Park Assist, Headlamp Washer, HVAC Module, Compass, Rearview Camera, Infrared Sensor, Flashlight, Door Lamps, Automatic Headlamp Leveling Module (AHLM), Flashlight Charger Diesel Engines Only: Cabin Heater Relay and Radiator Fan	10 A
35	Heated Mirrors	10 A
36	Center Console Power Outlet #3	20 A
37	Electronic Stability Program (ESP), Anti-Lock Braking System (ABS), Fuel Pump Relay (High Control), Brake Lamp Switch	10 A
38	Door and Liftgate Lock / Unlock Motors	25 A
Circuit Breakers
CB1	Unused	-
