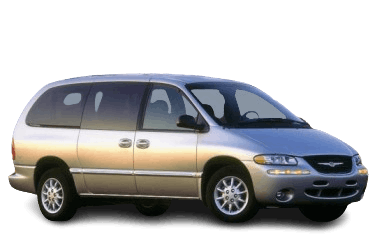

In this article, we provide a detailed overview of the fuse box diagrams for the Chrysler Town & Country (NS platform; third generation), covering the 1995, 1996, 1997, 1998, 1999, and 2000 model years.
The cigarette lighter is protected by fuse #8 (up to 1999) or #4 (2000) in the engine compartment fuse block, and fuse #19 (from 1998) in the passenger compartment fuse block.
Engine Compartment Fuse Box
Located near the battery, behind the protective cover.
Model Year 2000
Fuse box access.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Gasoline: Transmission Control Module (TCM) Relay | |
| R2 | Starter Relay | |
| R3 | Accessory Relay / Cigarette Lighter | |
| R4 | Front Blower Motor Relay | |
| R5 | Wiper (On) Relay | |
| R6 | Wiper (High/Low Speed) Relay | |
| R7 | A/C Compressor Clutch Relay | |
| R8 | Diesel: Diesel Power Relay | |
| Gasoline: Automatic Shutdown (ASD) Relay | ||
| R9 | Diesel: Fuel Heater Relay | |
| Gasoline: Chrysler Town & Country Fuel Pump Relay | ||
| R10 | Horn Relay | |
| R11 | Parking Lamp Relay | |
| R12 | High Beam Headlamp Relay | |
| R13 | Low Beam Headlamp Relay | |
| 1 | A/C Compressor Clutch Relay | 15 A |
| 2 | Gasoline: Transmission Control Module (TCM) and Relay | 20 A |
| 3 | Gasoline: Automatic Shutdown (ASD) Relay - Heated Oxygen Sensors (HO2S), Powertrain Control Module (PCM), Ignition Coil, Fuel Injectors, Alternator | 20 A |
| Diesel: Diesel Power Relay - A/C Compressor Clutch Relay, Radiator Fan Relays: #1, #2, #3; Engine Control Module (ECM), Exhaust Gas Recirculation (EGR) Solenoid, Fuel Pump, Alternator, Glow Plug Relays: #1, #2 | 20 A | |
| 4 | Accessory Relay and Chrysler Town & Country Cigarette Lighter | 20 A |
| 5 | Gasoline: Powertrain Control Module (PCM), Fuel Pump | 20 A |
| Diesel: Fuel Heater | 20 A | |
| 6 | Glove Box Lamp, Reading Lamps and Switch, Power Mirror Switch, Universal Garage Door Opener, Visor/Vanity Mirror Lamps, Courtesy Lamp Relay - Key-In Halo Lamp, Headlamp Switch, Liftgate Flood Lamp, Courtesy Lamps, Center and Rear Dome Lamps, Reading Lamps Export - Power Mirror Unfold Relay, Sentry Key Immobilizer Module (SKIM), Power Mirror Fold Relay |
15 A |
| 7 | Horn Relay | 20 A |
| 8 | Fog Lamp Relay, Left Low Beam Headlamp | 20 A |
| 9 | Right Low Beam Headlamp | 15 A |
| Export: Headlamp Leveling Motor, Headlamp Switch, Right Headlamp | 15 A | |
| 10 | Anti-Lock Braking System (ABS) Module | 25 A |
| 11 | Stop Lamp Switch | 20 A |
| 12 | Supplemental Restraint System (SRS) / Airbags | 10 A |
| 13 | 10 A | |
| 14 | Daytime Running Lamps (DRL) Module and Combination Flasher | 20 A |
| 15 | Body Control Module (BCM), Seat and Mirror Memory Module, Message Center, Instrument Cluster, Data Link Connector (DLC), Remote Keyless Entry (RKE) Module, Radio, Ignition Switch - Diodes #1, #3 and Fuse #2 in the interior fuse block | 10 A |
| 16 | Empty | - |
| 17 | Empty | - |
| 18 | Left High Beam Headlamp | 10 A |
| 19 | Right High Beam Headlamp | 10 A |
| Export: Headlamp Switch, Right Headlamp, Headlamp Leveling Motor | 10 A | |
| 20 | Empty | - |
| 101 | Parking Lamp Relay - Fuses #1, #3, #4, #5 in the interior fuse block | 40 A |
| 102 | Anti-Lock Braking System (ABS) Module | 40 A |
| 103 | Ignition Switch - Fuses #11 and #12 in the interior fuse block, Power Seat Circuit Breaker, Fuse #15 in the interior fuse block | 40 A |
| 104 | Starter Relay, Ignition Switch - Fuses #6, #8, #9, #10, #13, #19, #20, #21 in the interior fuse block, Body Control Module (BCM) | 40 A |
| 105 | Diesel: Radiator Fan Relay #3 | 40 A |
| 106 | Gasoline: Radiator Fan Relay | 40 A |
| Diesel: Radiator Fan Relay #2 | 40 A | |
| 107 | Front Blower Motor Relay | 40 A |
| 108 | Rear Window Defogger Relay, Fuse #7 in the interior fuse block | 40 A |
| 109 | Wiper (On) Relay - Wiper High/Low Speed, Body Control Module (BCM), Front Wiper Switch | 30 A |
Model Years 1995-1999
Fuse box access.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Accessory Relay / Cigarette Lighter | |
| R2 | Wiper Relay (High/Low Speed) | |
| R3 | Wiper (On) Relay | |
| R4 | High Beam Headlamp Relay | |
| R5 | Low Beam Headlamp Relay | |
| R6 | Empty | |
| R7 | Horn Relay | |
| R8 | A/C Compressor Clutch Relay | |
| R9 | Empty | |
| R10 | Front Blower Motor Relay | |
| R11 | Starter Relay | |
| R12 | Parking Lamp Relay | |
| R13 | Gasoline: Transmission Control Module (TCM) Relay | |
| R14 | Gasoline: Fuel Pump Relay | |
| Diesel: Fuel Heater Relay | ||
| R15 | Gasoline: Automatic Shutdown (ASD) Relay | |
| Diesel: Diesel Power Relay | ||
| 1 | Supplemental Restraint System (SRS) / Airbag Control Module | 10 A |
| 2 | 10 A | |
| 3 | Empty | - |
| 4 | Left High Beam Headlamp | 10 A |
| 5 | Message Center, Right High Beam Headlamp | 10 A |
| 6 | Fog Lamp Relay, Left Low Beam Headlamp | 15 A |
| Export: Left Low Beam Headlamp | ||
| 7 | Right Low Beam Headlamp | 15 A |
| Export: Headlamp Switch, Right Headlamp, Headlamp Leveling Motor | ||
| 8 | Accessory Relay - Front and Rear Power Outlets and Cigarette Lighter | 20 A |
| 9 | Horn Relay | 20 A |
| 10 | Daytime Running Lamps (DRL) Module, Combination Flasher | 20 A |
| 11 | A/C Compressor Clutch Relay | 15 A |
| 12 | Anti-Lock Braking System (ABS) Module | 25 A |
| 13 | Stop Lamp Switch | 20 A |
| 14 | Empty | - |
| 15 | Gasoline: Transmission Control Relay | 20 A |
| 16 | Gasoline: Powertrain Control Module (PCM), Fuel Pump Relay, Fuel Tank Module | 20 A |
| Diesel: Crankcase Heater, Fuel Heater | 20 A | |
| 17 | Gasoline: Automatic Shutdown (ASD) Relay - Heated Oxygen Sensors (HO2S), Powertrain Control Module (PCM), Alternator, Fuel Injectors, Ignition Coil | 20 A |
| Diesel: Diesel Power Relay - A/C Compressor Clutch Relay, Powertrain Control Module (PCM), Exhaust Gas Recirculation (EGR) Solenoid, Fuel Pump, Alternator, Mass Air Flow (MAF) Sensor, Radiator Fan Relays: #1, #2, #3; Glow Plug Relay | 25 A 20 A |
|
| 18 | Courtesy Lamp Relay - Key-In Halo Lamp, Headlamp Switch, Liftgate Flood Lamp, Courtesy Lamps, Rear Dome Lamp, Center Dome Lamp, Reading Lamps; Power Mirror Switch, Glove Box Lamp, Reading Lamps and Switch, Visor/Vanity Mirror Lamps, Universal Garage Door Opener Export: Sentry Key Immobilizer Module (SKIM), Power Mirror Fold Relay, Power Mirror Unfold Relay |
15 A |
| 19 | Wiper (On) Relay - Wiper High/Low Speed, Front Wiper Switch, Body Control Module (BCM) | 30 A |
| 20 | Diesel: Radiator Fan Relay #3 | 40 A |
| 21 | Front Blower Motor Relay | 40 A |
| 22 | Parking Lamp Relay, Fuses #1, #3, #4, #5 in the interior fuse block | 40 A |
| 23 | Starter Relay, Ignition Switch - Fuses #2, #6, #8, #9, #10, #13, #19, #20, #21 in the interior fuse block | 40 A |
| 24 | Gasoline: Radiator Fan Relay | 40 A |
| Diesel: Radiator Fan Relay #2 | ||
| 25 | Anti-Lock Braking System (ABS) Module | 40 A |
| 26 | Ignition Switch, Fuse #15 in the interior fuse block, Power Seat Circuit Breaker | 40 A |
| 27 | Fuse #7 in the interior fuse block, Rear Window Defogger Relay | 40 A |
| 28 | Radio, Body Control Module (BCM), Seat and Mirror Memory Module, Message Center, Instrument Cluster, Remote Keyless Entry (RKE) System, Data Link Connector (DLC), Ignition Switch - Diodes #1, #3 and Fuse #2 in the interior fuse block | 10 A |
Passenger Compartment Fuse Box
Located on the driver’s side, below the dashboard.
Fuse box access.
Reference photo.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Rear Window Defogger Relay | |
| R2 | Horn Relay | |
| R3 | Fog Lamp Relay | |
| R4 | Courtesy Lamp Relay | |
| R5 | Driver Door Unlock Relay | |
| R6 | Washer Pump Relay | |
| R7 | Power Mirror Fold Relay | |
| R8 | Power Mirror Unfold Relay | |
| R9 | Door Unlock Relay | |
| R10 | Door Lock Relay | |
| R11 | Daytime Running Lamps (DRL) Module and Combination Flasher Relay | |
| 1 | Body Control Module (BCM) | 10 A |
| 2 | Body Control Module (BCM), Instrument Cluster, Brake Transmission Shift Interlock (BTSI) Solenoid, Transmission Control Module (TCM) | 10 A |
| 3 | From 1998: Trailer Tow Connector, Trailer - Front Right Parking and Turn Signal Lamps, Right Rear Lamp Assembly, Fuse #1 in the interior fuse block | 15 A |
| Up to 1997: Body Control Module (BCM), Message Center, Rear Wiper Motor, HVAC Control Module | 20 A | |
| 4 | From 1998: Fog Lamps | 15 A |
| Up to 1997: Right Rear Lamp Assembly, Front Right Parking and Turn Signal Lamps | 15 A | |
| 5 | From 1998: Trailer - Front Left Parking and Turn Signal Lamps, License Plate Lamp, Left Rear Lamp Assembly, Export - Headlamp Switch and Washer Module | 15 A |
| Up to 1997: Fog Lamps | 15 A | |
| 6 | From 1998: Rear Wiper Motor, Body Control Module (BCM), HVAC Control Module, Compass/Mini-Trip Computer, Message Center, Automatic Dimming Rearview Mirror | 20 A |
| Up to 1997: Left Rear Lamp Assembly, Left Front Parking/Turn Signal Lamps, License Plate Lamp, Headlamp Switch | 15 A | |
| 7 | Driver and Passenger Power Mirrors, Heated Mirrors | 10 A |
| 8 | Radio | 10 A |
| Premium Audio: Speaker Relay (Choke), Radio | ||
| 9 | 1998-1999: Windshield Wiper De-Icer | 15 A |
| 2000: Windshield Wiper De-Icer | 10 A | |
| 10 | From 1998: Starter, Manual Transmission - Clutch Interlock Switch, Transmission Control Module (TCM) | 10 A |
| Up to 1997: Anti-Lock Braking System (ABS) Module | 10 A | |
| 11 | Rear HVAC Control Module | 20 A |
| 12 | Driver and Passenger Heated Seat Switches, Automatic Transmission - Park/Neutral Position (PNP) Switch, Automatic Dimming Rearview Mirror, Combination Flasher (Turn Signals and Hazard Lights) and DRL Module, ABS, Front Blower Motor Relay, HVAC Control Module - Rear Window Defogger Relay, Manual Transmission - Back-Up Lamp Switch, Automatic Transmission - Transmission Range Sensor (TRS) | 10 A |
| 13 | Gasoline: Fuse #2 (up to 1999) or #13 (2000) in the engine compartment fuse block, Fuel Pump Relay, Powertrain Control Module (PCM), Evaporative Emissions (EVAP) Leak Detection Pump (LDP), A/C Compressor Clutch Relay, Torque Converter Clutch (TCC) Solenoid, Exhaust Gas Recirculation (EGR) Solenoid, Export - Sentry Key Immobilizer Module (SKIM) | 9 A |
| Diesel: Engine Control Module (ECM), Fuel Heater Relay, Fuse #2 (up to 1999) or #13 (2000) in the engine compartment fuse block, A/C Compressor Clutch Relay, Vehicle Speed Sensor (VSS), Export - Sentry Key Immobilizer Module (SKIM) | 9 A | |
| 14 | Up to 1997: Front Left Door Lock Actuator | 3 A |
| 15 | From 1998: Driver Door Unlock Relay, Door Lock/Unlock Relays, Export - Washer Module | 9 A |
| Up to 1997: Left Rear Sliding Door Contact, Liftgate Lock Actuator | 4 A | |
| 16 | Up to 1997: Right Front and Rear Door Lock Actuators | 6 A |
| 17 | Up to 1997: Front Door Lock Actuators | 4 A |
| 18 | Up to 1997: Rear Sliding Door Contacts, Liftgate Lock Actuator | 6 A |
| 19 | From 1998: Front Wiper Switch, Cigarette Lighter and Accessory Relay, Front and Rear Washer Pumps, Export - Washer Module | 9 A |
| Up to 1997: Front and Rear Washer Pumps | 6 A | |
| 20 | From 1998: Power Window Switches - Driver and Passenger | 9 A |
| Up to 1997: Driver's Side Power Window Switch | 9 A | |
| 21 | From 1998: Driver's Side Power Window Switch | 9 A |
| Up to 1997: Driver and Passenger Power Window Switches | 6 A | |
| 22 | Up to 1997: Transmission Control Module (TCM), Starter Relay, Manual Transmission Clutch Interlock Switch | 3 A |
