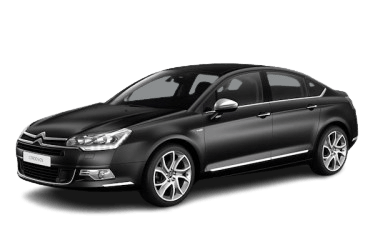

Introduced in October 2007, the second-generation Citroën C5 is noted for its high level of equipment and comfort. This article provides a detailed overview of the fuse box diagrams for the Citroën C5 (second generation; PF3 platform; codes RD / RW) covering the 2008 through 2017 model years.
Below, you will find the locations and photos of the power distribution boxes. The fuses protecting the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.
Engine Compartment
Located adjacent to the battery.
The PSF1 power distribution box is located above the battery, with additional Maxi Fuse (MF) elements positioned to the side.
The BFDB power distribution block is located to the right of the battery.
PSF1 Fuse Box
General overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | A |
| 1 | Engine Control Module (ECM) | 20 |
| 2 | Horn | 15 |
| 3 | Windshield washer pump | 10 |
| 4 | Headlamp washer pump | 10 |
| 5 | Engine actuators | 15 |
| 6 | Mass Air Flow (MAF) sensor - Adaptive headlamps - Diagnostic Link Connector (DLC) | 10 |
| 7 | Automatic transmission shift lock - Power steering | 10 |
| 8 | Starter motor | 20/25 |
| 9 | Clutch pedal switch - Brake light switch | 10 |
| 10 | Engine actuators | 30 |
| 11 | A/C condenser cooling fan | 40 |
| 12 | Windshield wipers | 30 |
| 13 | Built-in Systems Interface (BSI) power supply (Ignition ON) | 30 |
| 14 | Not used | 30 |
| 15 | Right headlamp - High beam | 10 |
| 16 | Left headlamp - High beam | 10 |
| 17 | Right headlamp - Low beam | 15 |
| 18 | Left headlamp - Low beam | 15 |
| 19 | Engine actuators | 15 |
| 20 | 10 | |
| 21 | 5 | |
| Maxi Fuse (MF) Panel | ||
|
||
| MF1 | Engine cooling fan | 50 |
| MF2 | Power distribution module | 80 |
| MF3 | Power steering pump | 80 |
| MF4 | Power distribution module | 80 |
| MF5 | Anti-lock Braking System (ABS) / Electronic Stability Program (ESP) | 20 |
| MF6 | Anti-lock Braking System (ABS) / Electronic Stability Program (ESP) | 40 |
| MF7 | Hydropneumatic suspension pump | 20 |
| MF8 | Power distribution module | 80 |
BFDB Fuse Box
Located to the right of the battery.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | A |
| F1 | Hydropneumatic suspension system | 40 |
| F2 | Glow plug relay | 70 |
| F3 | Engine cooling fan | 60 |
| F4 | Power distribution module | 100 |
| F5 | Trailer tow module | 30 |
| F6 | Rear 12V power outlet (Max load: 100W) | 25 |
| F7 | Fog lamps | 15 |
| F8 | Auxiliary heater | 20 |
| Auxiliary heating element (Diesel models) | 20 | |
| F9 | Electronic Parking Brake (EPB) | 30 |
Auxiliary Power Distribution Box
Located adjacent to the primary fuse boxes. Equipment varies depending on the vehicle specification.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | A |
| 1 | Climate control / HVAC blower motor | 40 |
| 2 | 40 | |
| 3 | 40 | |
Passenger Compartment
Located on the driver’s side, in the lower section of the dashboard.
Access panel.
General overview of the Citroën C5 passenger compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| Board A | ||
| No. | Circuit Description | A |
| G29 | Not used | - |
| G30 | Heated exterior mirrors | 5 |
| G31 | Rain and ambient light sensor | 5 |
| G32 | Seat belt warning indicators | 5 |
| G33 | Auto-dimming rearview mirror | 5 |
| G34 | Sunroof blind (Sedan) | 20 |
| G35 | Passenger door puddle lamp - Passenger exterior mirror motor | 5 |
| G36 | Power liftgate (Estate/Wagon) | 30 |
| G37 | Heated front seats | 20 |
| G38 | Power driver’s seat | 30 |
| G39 | Power passenger seat - Premium audio amplifier | 30 |
| G40 | Trailer tow module power supply | 3 |
| Board B | ||
| No. | Circuit Description | A |
| G36 | 6-speed automatic transmission | 15 |
| 4-speed automatic transmission | 5 | |
| G37 | Daytime Running Lamps (DRL) - Diagnostic Link Connector (DLC) | 10 |
| G38 | Electronic Stability Program (ESP) | 3 |
| G39 | Hydropneumatic suspension | 10 |
| G40 | Brake light switch | 3 |
| Board C | ||
| No. | Circuit Description | A |
| F1 | Rear window wiper (Estate/Wagon) | 15 |
| F2 | Central door locking relay | 30 |
| F3 | Supplemental Restraint System (SRS) / Airbags | 5 |
| F4 | Automatic transmission - Auxiliary heating module (Diesel models) - Auto-dimming rearview mirror | 10 |
| F5 | Front power windows - Sunroof - Passenger door puddle lamp - Passenger exterior mirror motor | 30 |
| F6 | Rear power windows | 30 |
| F7 | Vanity mirror lamps - Glove box lamp - Interior dome lamps - Removable flashlight (Estate/Wagon) | 5 |
| F8 | Audio system - CD changer - Steering wheel audio controls - Multifunction display - Tire Pressure Monitoring System (TPMS) - Power liftgate control module | 20 |
| F9 | Citroën C5 “Cigarette Lighter” Fuse - Front 12V power outlet | 30 |
| F10 | Anti-theft alarm system - Steering column control module (lights and wipers) | 15 |
| F11 | Ignition switch (low current circuit) | 15 |
| F12 | Power driver’s seat - Instrument cluster - Seat belt warning indicators - HVAC control panel | 15 |
| F13 | Engine Control Module (ECM) - Hydropneumatic suspension pump relay - SRS/Airbag control module power supply | 5 |
| F14 | Rain and ambient light sensor - Parking assist system - Power passenger seat - Trailer tow module - Premium audio amplifier - Bluetooth hands-free system - Lane Departure Warning (LDW) system | 15 |
| F15 | Central locking and deadlocking relays | 30 |
| F17 | Heated rear window (defroster) - Heated exterior mirrors | 40 |
| FSH | Park shunt (“SHUNT PARK”) | |
Luggage Compartment
The fuse panel is located behind the trim panel on the left side.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | A |
| 1 | Starter motor | - |
| 2 | Engine compartment fuse box (PSF1) | 150 |
| 3 | 12V power outlet in the luggage compartment | 30 |
| 4 | Electronic Parking Brake (EPB) | 60 |
