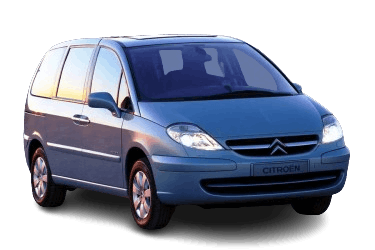

The Citroën C8 was first unveiled in 2002 at the Geneva International Motor Show. This model replaced the Evasion minivan, which was developed jointly by PSA Peugeot Citroën and Fiat. A facelift was introduced in 2008, after which it was eventually succeeded by the new Grand C4 Picasso. This article provides a detailed breakdown of the fuse box diagrams for the Citroën C8 (pre-facelift models, 179AX code, EW/ES engine series) for the 2002–2008 model years.
This guide covers the locations and diagrams of the power distribution panels. The fuses responsible for the “Cigarette lighter” and “Fuel pump” are highlighted in bold.
Passenger Compartment
Two fuse panels are located in this area to protect the interior electrical circuits.
Primary Fuse Box
It is located on the passenger side, behind the glove box. On right-hand drive vehicles, it is located on the driver's side, behind the lower dashboard trim.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Rear window wiper | 15 |
| F3 | Airbags | 5 |
| F4 | Steering angle sensor - ESP - Electrochromic rearview mirror - Diagnostic port - Clutch switch - Air conditioning - Suspension - Diesel Particulate Filter (DPF) | 10 |
| F5 | Sunroof - Front power windows | 30 |
| F6 | Rear power windows | 30 |
| F7 | Interior lighting - Vanity mirrors - Glove box | 5 |
| F8 | Multifunction displays - Alarm system - Audio system - CD changer - Diesel additive pump - Tire Pressure Monitoring System (TPMS) - Power sliding doors | 20 |
| F9 | Cigarette lighter | 30 |
| F10 | Trailer control module - Steering wheel controls | 15 |
| F11 | Diagnostic port - Alarm siren - Automatic transmission - Ignition switch | 15 |
| F12 | Seat belt warning - Power sliding doors - Airbags - Parking assist sensors - Driver's seat memory - Power passenger seat | 15 |
| F13 | Trailer tow hitch | 5 |
| F14 | Rain sensor - Sunroof - Air conditioning - Odometer - Instrument cluster - Telematics system | 15 |
| F15 | Central locking - Deadlocking - Child safety locks | 30 |
| F17 | Rear window defogger | 40 |
Auxiliary Fuse Box
Located under the passenger seat, next to the battery.
| Diagram | ||
|---|---|---|
|
||
| 1 | Spare | - |
| 2 | - | |
| 3 | Brake system | 5 |
| 4 | Driver's seat memory | 25 |
| 5 | Passenger seat memory - Sunroof | 25 |
| 6 | Sunroof | 20 |
| 7 | 20 | |
| 8 | Heated passenger seat | 10 |
| 9 | Heated driver's seat | 10 |
| 10 | Lighting controls | 15 |
| 11 | Rear cigarette lighter / 12V accessory socket (3rd row) | 20 |
| 12 | Rear cigarette lighter / 12V accessory socket (2nd row) | 20 |
Engine Compartment
Located near the windshield washer fluid reservoir. The reservoir must be removed to gain access.
| Engine Compartment Fuse Assignment | ||
|---|---|---|
General view. |
||
Diagram. |
||
| No. | Description | Rating (A) |
| F1 |
|
20 |
| F2 | Horn | 15 |
| F3 | Front / rear windshield washer pump | 10 |
| F4 | Headlight washer pump | 20 |
| F5 | Fuel pump - Solenoid control valve | 15 |
| F6 | Transmission - Power steering - Mass Air Flow (MAF) sensor - Brake system - Headlight leveling system | 10 |
| F7 | Electronic Stability Program (ESP) | 10 |
| F8 | Starter motor | 20 |
| F9 | Engine Control Module (ECM) | 10 |
| F10 | Solenoid valves - Oxygen (Lambda) sensor - Electronic fuel injection - Ignition coils - Diesel fuel heater | 30 |
| F11 | Climate control blower motor | 40 |
| F12 | Front windshield wipers | 30 |
| F13 | Built-in Systems Interface (BSI) (+ ignition switched) | 40 |
| F14 | Spare | - |
