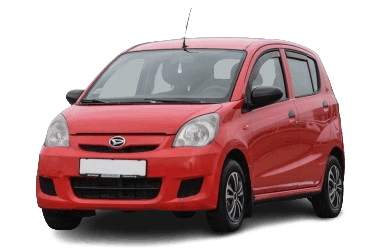

This article provides a comprehensive overview of the fuse box diagrams for the seventh-generation Daihatsu Mira and Cuore (chassis codes L275 and L276; Lightweight K-car platform), covering the 2006 through 2018 model years.
Fuse No. 7 in the passenger compartment fuse block protects the cigarette lighter / 12V power outlet circuit.
Engine Compartment
The fuse box is located adjacent to the battery.
General layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Anti-lock Braking System (ABS) | 40 |
| F2 | Transmission Control Module (TCM) | 10 |
| F3 | — | - |
| F4 | — | - |
| F5 | Anti-lock Braking System (ABS) | 20 |
| F6 | — | 15 |
| F7 | Interior lighting | - |
| F8 | Air conditioning (A/C) | 10 |
| F9 | Radiator cooling fan motor | 30 |
| F10 | HVAC blower motor | 40 |
| F11 | Electronic Power Steering (EPS) | 50 |
| F12 | Left low beam headlight | 10 |
| F13 | Right low beam headlight | 10 |
| F14 | Left high beam headlight | 10 |
| F15 | Right high beam headlight | 10 |
| F16 | Starter signal | 7.5 |
| F17 | Brake lights | 10 |
| F18 | Engine Control Module (ECM) | 15 |
| F19 | Electronic steering column lock | 20 |
| F20 | Main ignition circuit | 30 |
| 1 | Starter relay | |
| 2 | Radiator cooling fan relay | |
| 3 | Horn relay | |
| 4 | A/C compressor magnetic clutch relay | |
| 5 | Headlight relay | |
Passenger Compartment
The fuse box is located on the left side, behind the instrument panel trim.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Main ignition circuit | 30 |
| F2 | - | 25 |
| F3 | Rear wiper and washer | 15 |
| F4 | Right fog light | 7.5 |
| F5 | Rear window defogger | 15 |
| F6 | Left fog light | 7.5 |
| F7 | Cigarette lighter | 15 |
| F8 | Engine Control Module (ECM) | 10 |
| F9 | - | 7.5 |
| F10 | - | 7.5 |
| F11 | Battery power distribution | 30 |
| F12 | - | 7.5 |
| F13 | - | 10 |
| F14 | - | 10 |
| F15 | Main ignition circuit | 20 |
| F16 | Central locking system | 15 |
| F17 | Main ignition circuit | 20 |
| F18 | - | 10 |
| F19 | Heated seats | 10 |
